SW DVI A Series • Operation
Operation, cont’d
3-10
SW DVI A Series

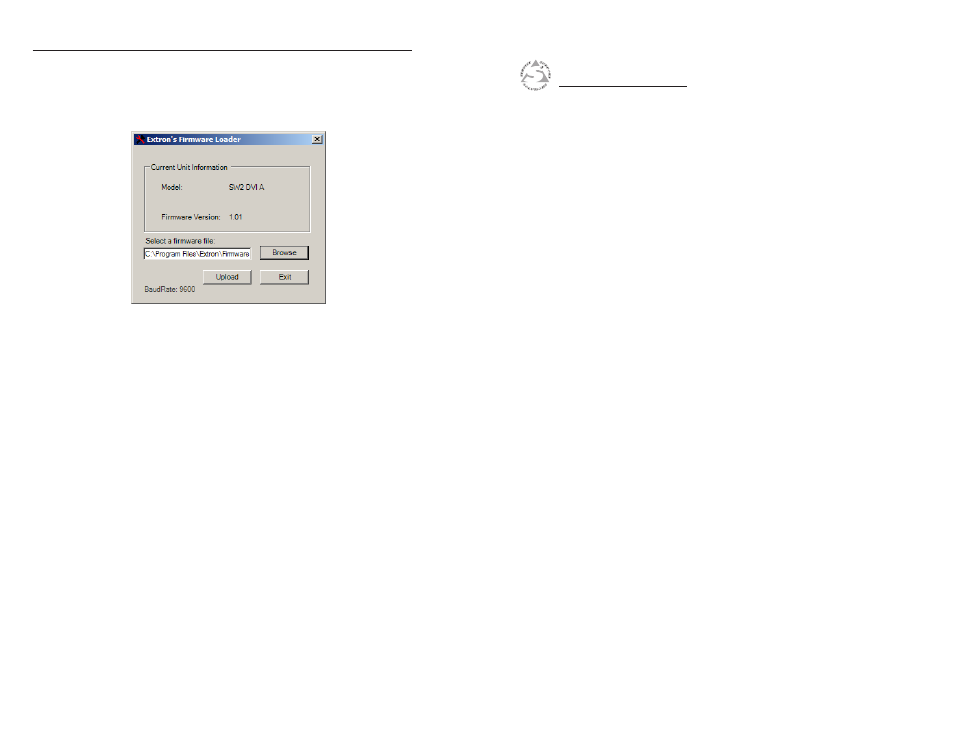

9 . On the Choose Firmware File window, double-click on
the new firmware file to open it. The Choose Firmware
File window closes, and the path to the selected firmware
file is displayed in the “Select a firmware file” field on the
firmware file selection screen.
1 0. Click the Upload button. A status bar, which shows the
progress of the upload, appears in the Firmware Loader
window. The firmware upload to the switcher may take
several minutes. Once the status bar has progressed fully
from left to right, the firmware loader utility resets the
switcher.
In addition, messages appear on the firmware file selection
window indicating when the unit is uploading the
firmware, then resetting itself.
When the firmware upload process is completed, the
message “Transfer Complete!” is displayed, and the new
firmware version number appears in the Current Unit
Information field.
11 . Click Exit to close the Firmware Loader.
4
Chapter Four
SIS Configuration and Control
Host-to-Switcher Communications
Using the Command/Response Table
Command/Response Table for SIS Commands
