2-7 TP T Series Transmitters • Installation and Operation
PRELIMINAR
Y
6 . Drill pilot holes 1/4 inch (6.4 mm) deep and 3/32 inch (2 mm) in diameter
into the table or desk top at the marked screw locations. The holes should be
drilled from the underside or inside (concealed side) of the furniture where
the transmitter will be located.
7 . Insert #8 wood screws into the four pilot holes. Tighten each screw into the
mounting surface until slightly less than 1/4 inch of the screw head protrudes.
8 . Align the mounting screws with the slots in the brackets and place the unit
against the surface, with the screws through the bracket slots.
9 . Slide the unit slightly forward or back, then tighten all four screws to secure it.
Through-desk mounting
Mount the transmitter through a desk or table, using the optional through-desk
mounting kit (part #70-077-02).
1 . If rubber feet are attached to the bottom of the unit, remove them.
2 . Loosely attach the mounting brackets to the transmitter using the four
machine screws and washers supplied with the mounting kit.
3 . Hold the transmitter against the inside of the surface through which it will
be mounted. On the inside of the mounting surface, mark the four screw
holes and the material to be removed (approximately 1.2 inches by 6.9 inches
[3.0 cm by 17.5 cm]).
4 . Cut out the table material. Test the fit by inserting the front of the transmitter
through the hole. If necessary, use a rasp or coarse file to enlarge the hole.
5 . Drill pilot holes each 1/4 inch (6.4 mm) deep and 3/32 inch (2 mm) in
diameter in the desk or table where you marked the screw locations in step 2.
The holes should be drilled from the underside or inside (concealed side) of
the furniture where the transmitter will be located.
6 . Using the four provided wood screws, secure the brackets to the mounting
surface.

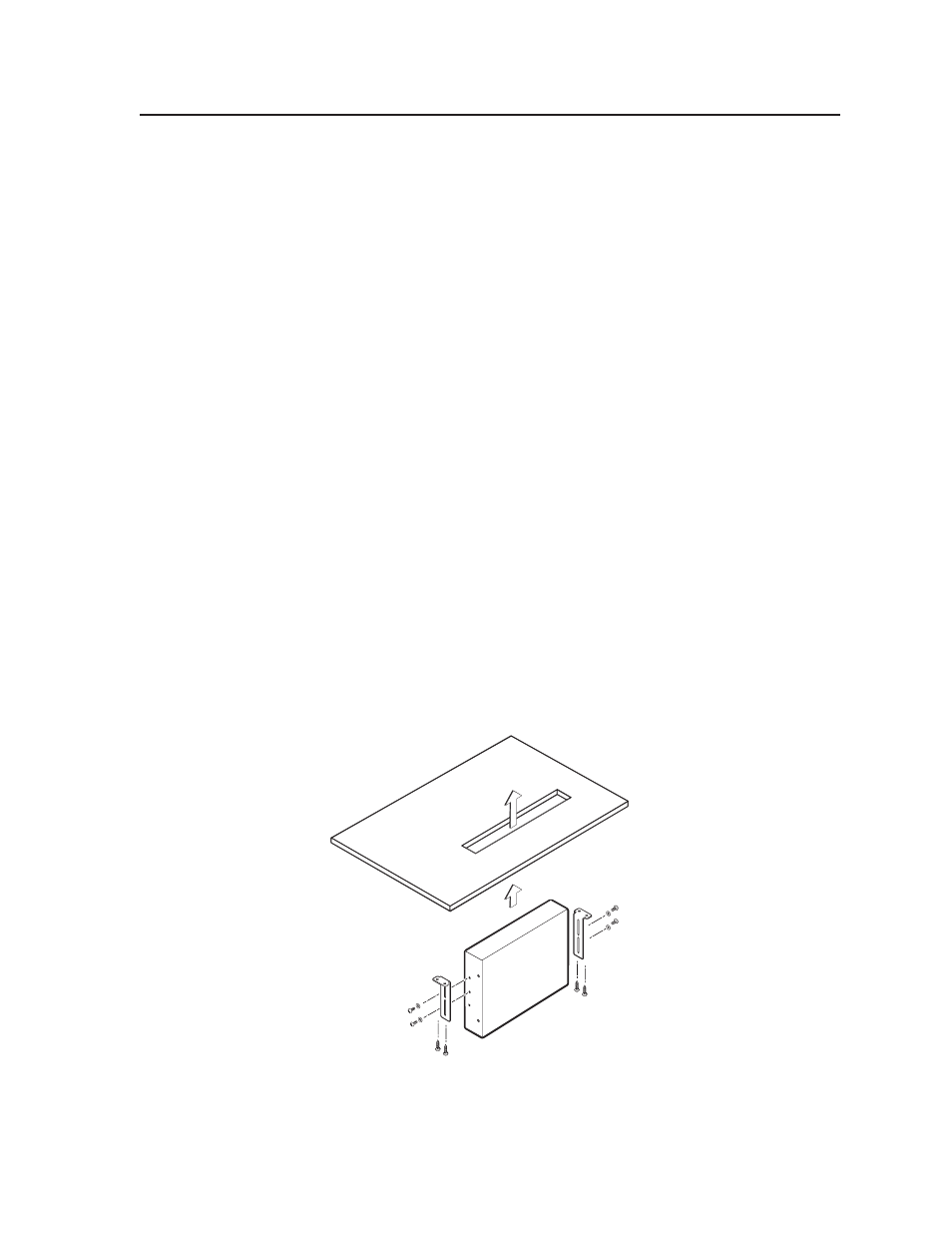

Through-desk mounting the transmitter
