Installation and Operation, cont’d
TP T Series Transmitters • Installation and Operation 2-6
PRELIMINAR
Y

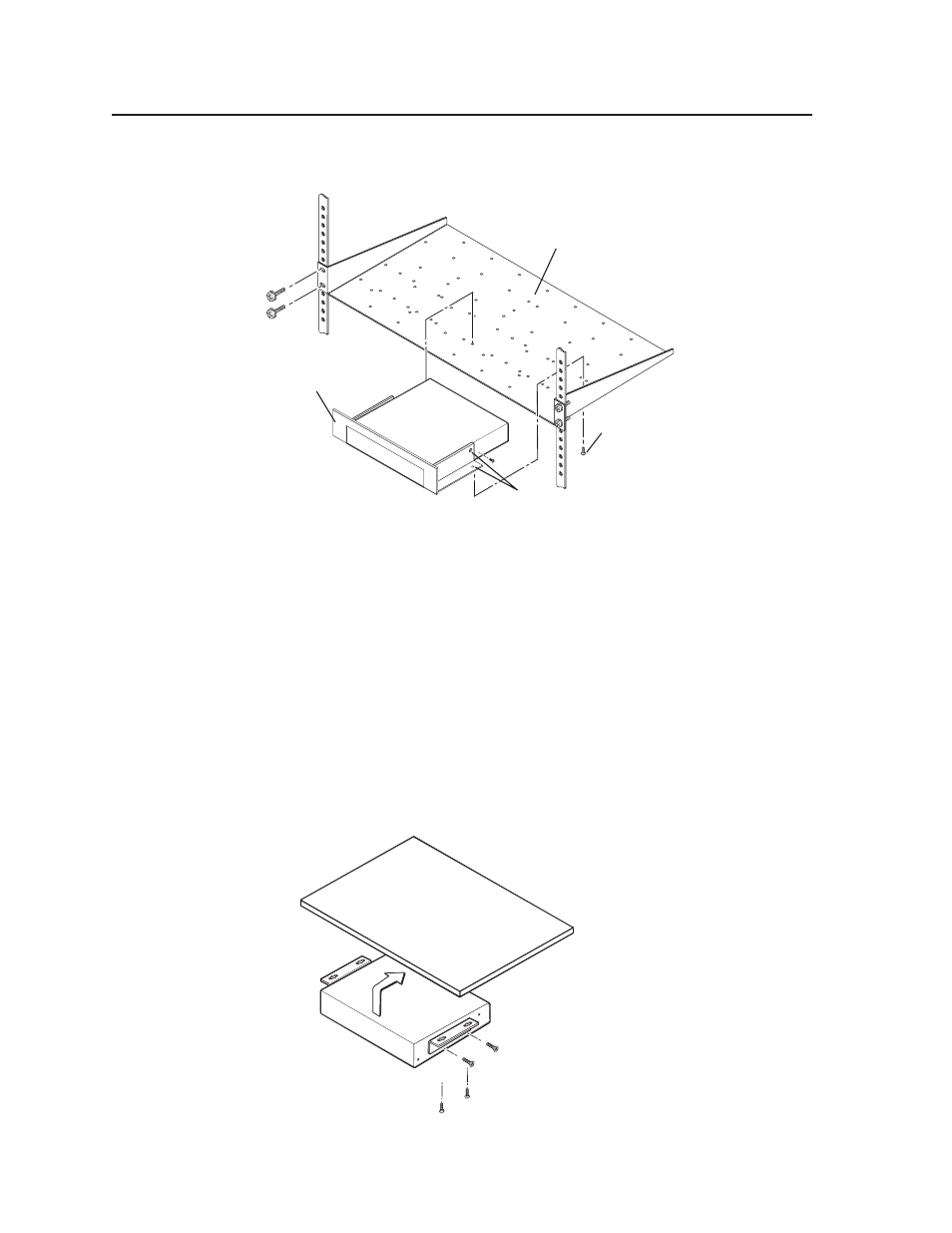

The following illustration shows how to mount the transmitter on a 9.5" rack shelf.
Use 2 Mounting Holes
(each side)
(2) 4-40 x 3/16"
Screws
1U Universal Rack Shelf
RSM 100
TP Mounting Bracket
Rack mounting the transmitter
Under-desk mounting
Furniture-mount the transmitter under a desk or shelf using the optional mounting
kit (part #70-077-01), as illustrated below.
To mount the transmitter under a desk, podium, or table top,
1
. If rubber feet are attached to the bottom of the unit, remove them.
2 . Remove the two screws from one side of the unit. Retain the screws for
possible later reassembly.
3 . Attach one bracket to the side of the unit, using the provided machine screws.
4 . Repeat steps 2 and 3 on the other side of the unit.
5 . Hold the unit with the attached brackets against the underside of the table or
other furniture. On the mounting surface, mark the location of the bracket’s
screw holes.
Under-desk mounting the transmitter
