PS 124 12 VDC, 4 Amp Power Supply • Installation Manual 11
Under-desk mounting
In addition to using the PS 124 power supply on a rack or
projector, it can also be mounted under furniture (such as a
desk) using the MBU 125 Under-Desk Mounting Kit (part
#70-077-01). To mount the PS 124 under a desk or other
furniture, follow these steps:
1
. Attach the mounting brackets to the power supply with
the provided machine screws (figure 10).
2 . Hold the power supply with the attached brackets against
the underside of the furniture. Mark the location of the
screw holes of the bracket on the mounting surface.
3 . Drill 3/32" (2 mm) diameter pilot holes, 1/4" (6.3 mm)
deep in the mounting surface at the marked screw
locations.
4 . Insert #8 wood screws into the four pilot holes. Tighten
each screw into the mounting surface until just less than
1/4" of the screw head protrudes.

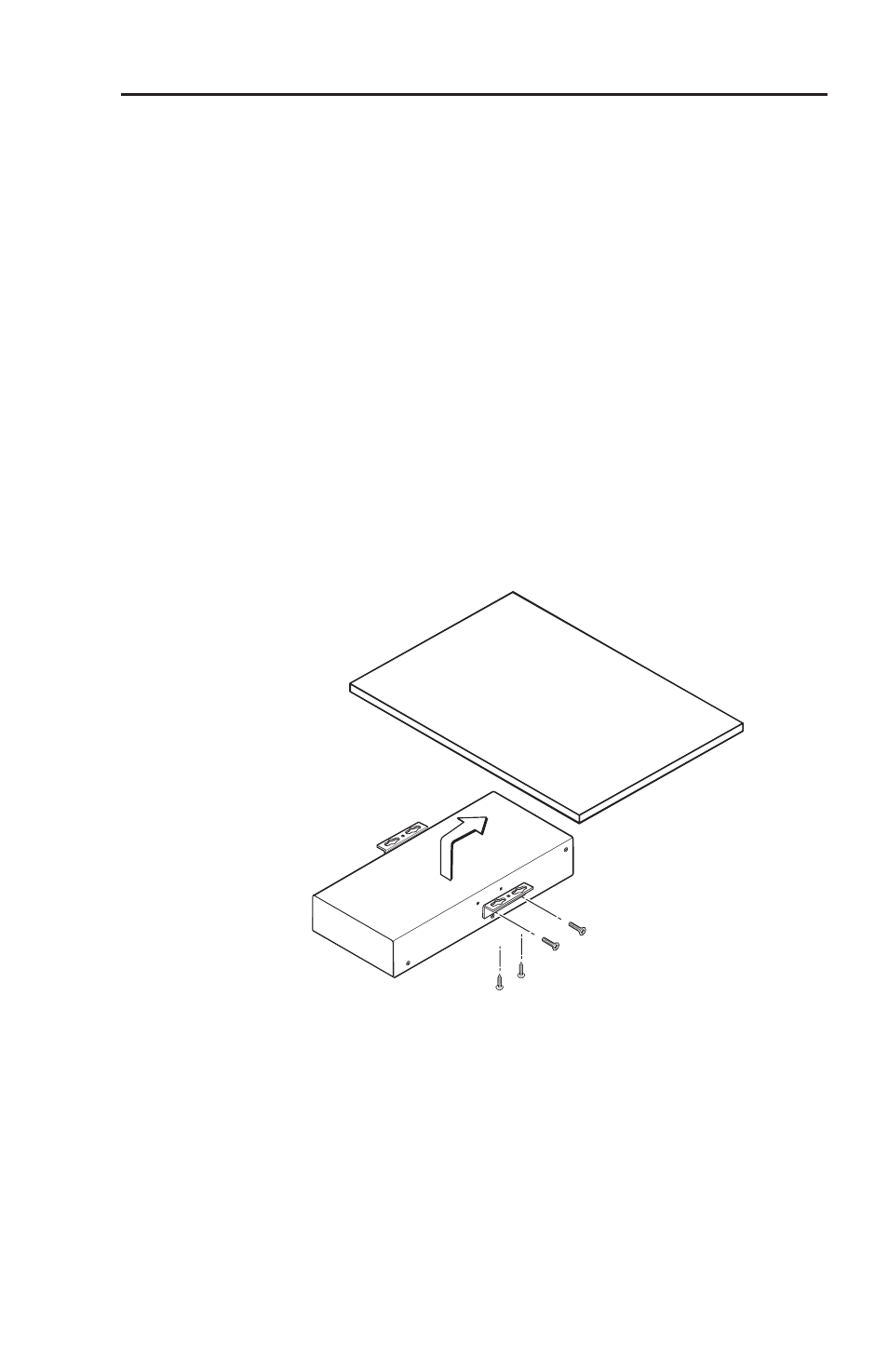

Figure 10 — Under-desk mounting the PS 124
5 . Align the mounting screws with the slots in the brackets
and place the power supply against the surface, with the
screws through the bracket slots.
6 . Slide the unit slightly forward or back, then tighten all four
screws to secure it in place.
