PS 124 12 VDC, 4 Amp Power Supply • Installation Manual
5
UL guidelines
The Underwriters Laboratories (UL) guidelines listed below
pertain to the installation of the flexible conduit option.
• This unit is not to be used beyond its rated voltage range.
• This unit must be wired to a UL listed distribution box.
N
The electrical distribution box is not included with
either the PS 124 power supply or the Flexible Conduit
Adapter Kit; the installer is responsible for obtaining and
installing a UL Listed box.
• This unit must be installed in accordance with the National
Electrical Code and all local codes.
Installing the flexible conduit cable
Install the flexible conduit cable assembly to the PS 124 as
follows:
1
.
Remove the IEC power cord.
2
.
Remove and retain the two Phillips head screws that
secure the IEC plate (figure 4, below) to the PS 124 rear
panel.
OUTPUTS
RED-
OVERLOAD
12 VDC TOTAL OUTPUT 4A
100-240 50-60Hz 1.2A MAX.
Remove two screws.
IEC Plate

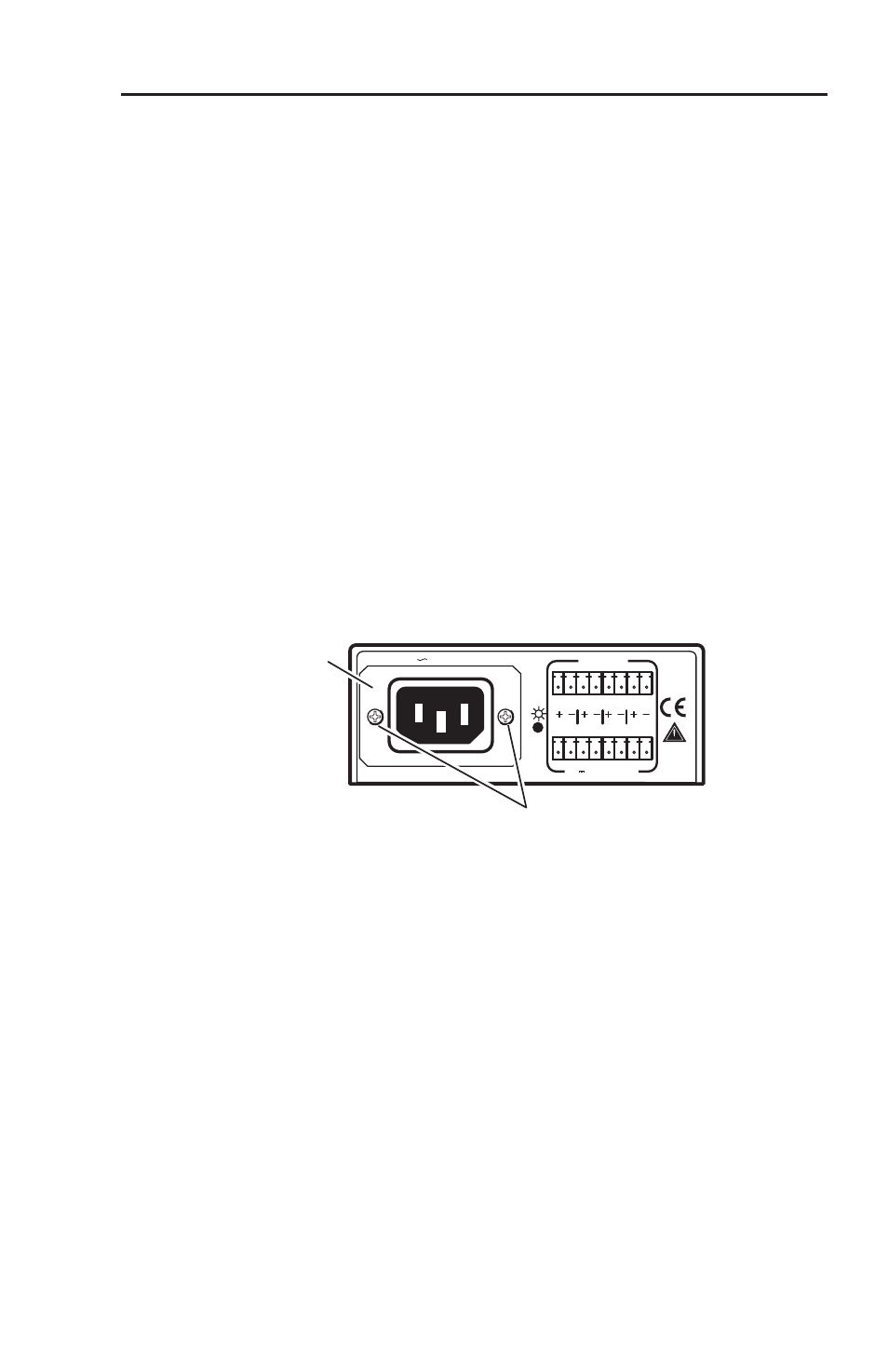

Figure 4 — Removing the IEC plate
