Extron • RGB 118 & RGB 118 PLUS • User’s Manual
RGB 118 PLUS
Universal Interface
Data Monitor
Large Screen Data Projector
or
MBC VGA/XGA HR
MBC MAC/QUADRA HR
MBC IBM PCC

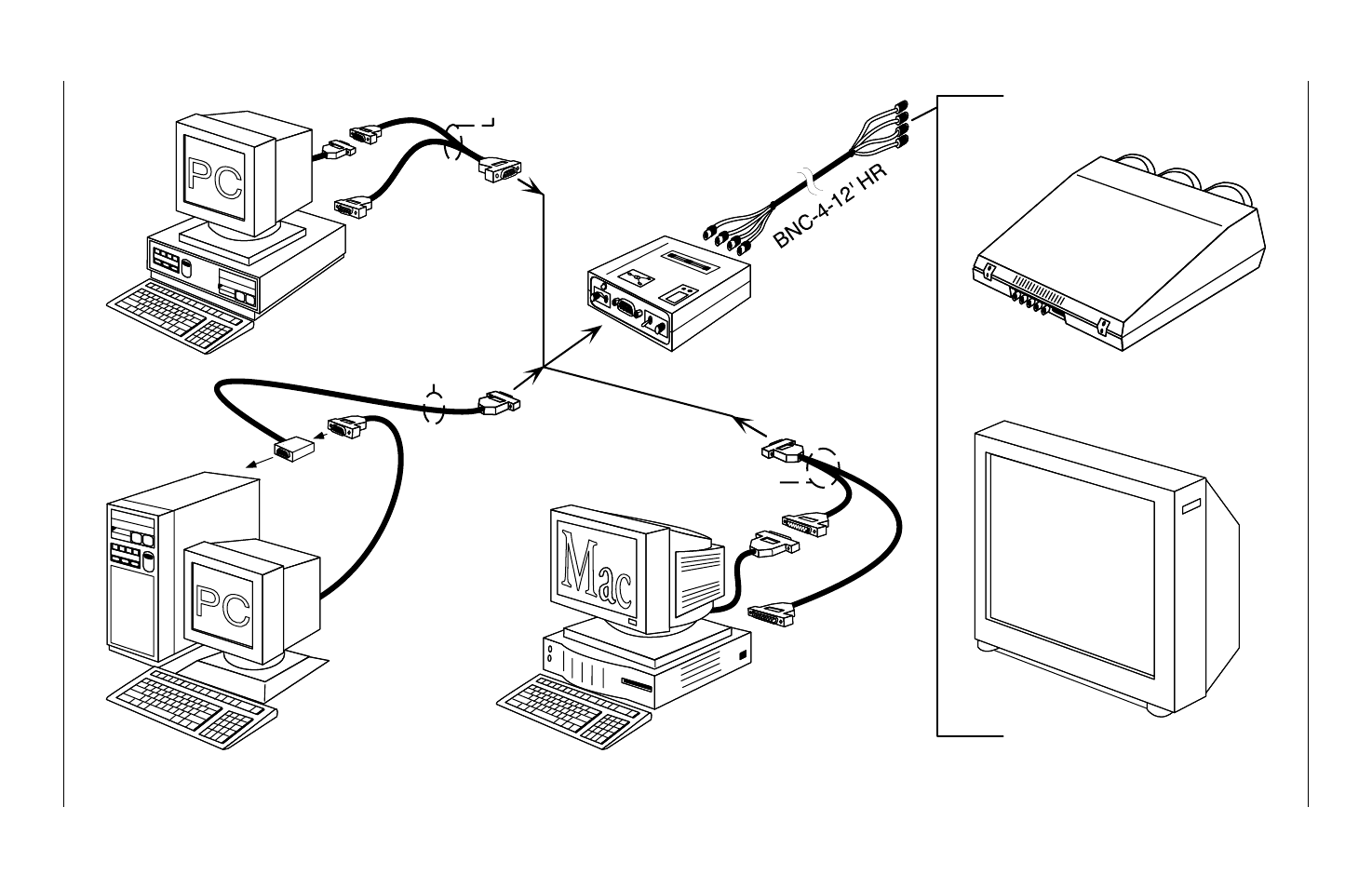

The above diagram illustrates the versatility of Extron’s 118 PLUS K
IT
(P/N in Appendix) which includes the following items:
RGB 118 PLUS – MBC VGA/XGA HR – MBC MAC/QUADRA HR – MBC IBM PCC – T-VGA – MAC DFTA – BNC-4-12’ HR
Applications
Page 3-5
