Extron • RGB 118 & RGB 118 PLUS • User’s Manual
MBC VGA/XGA HR
RGB 118
Large Screen
Data Monitor
Page 3-2
Applications
Application Diagrams

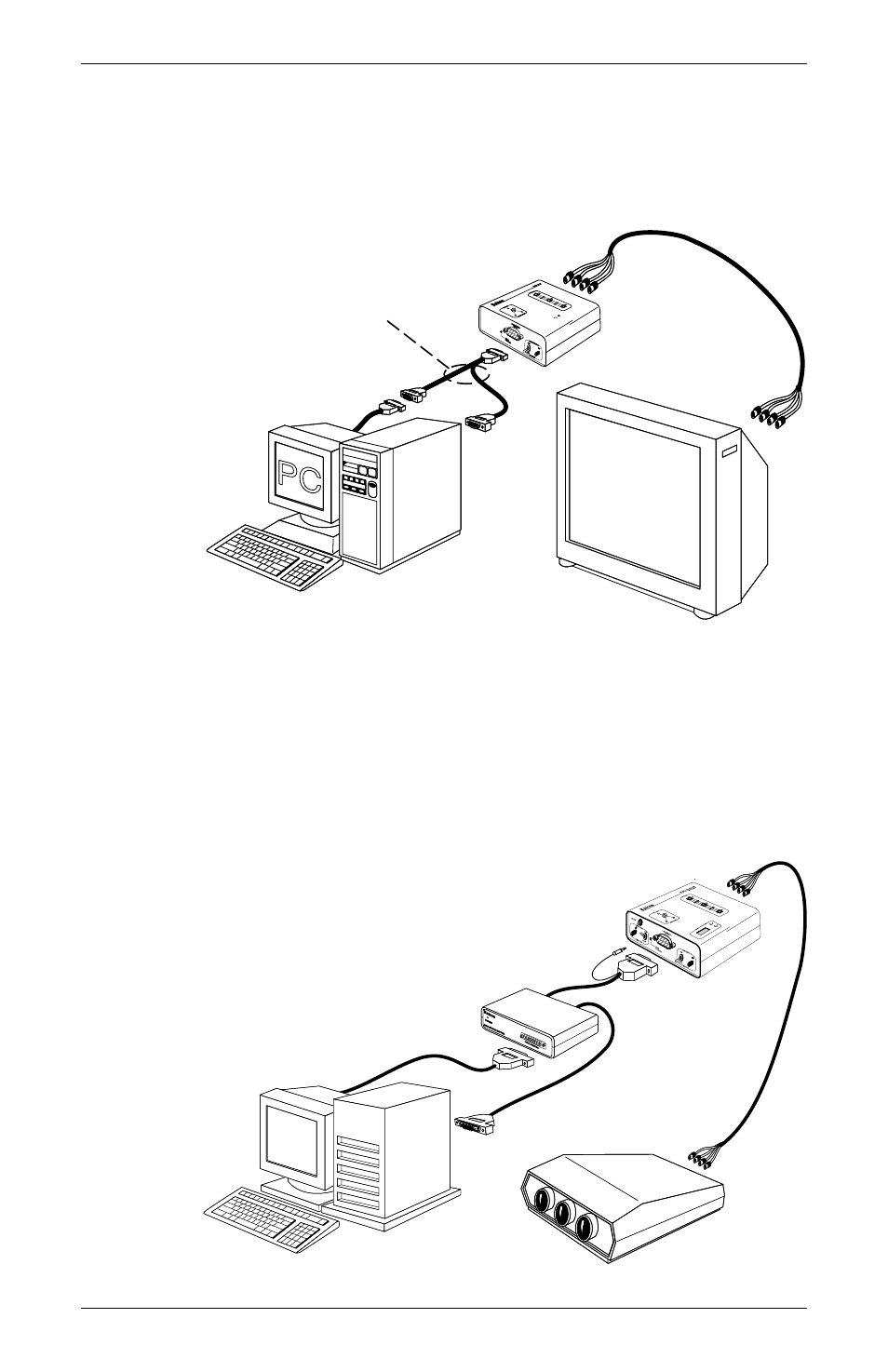

The application diagram below (Figure 1) demonstrates an RGB
118 Interface used to interface a PC Computer monitor to a large
screen data monitor which could be located in the same room or in
a different location up to 150’ away.
Figure 1
The application diagram below (Figure 2) demonstrates an RGB
118 PLUS combined with an MBC SPARC Buffer to interface a
high resolution computer/monitor workstation to a large screen
projector. The MBC SPARC Buffer is used to allow the higher
resolution signals to be transmitted with minimum signal loss and
no reflections or signal ghosting. The MBC SPARC Buffer gets its
power from the RGB 118 PLUS through the MBC Power jack.
Figure 2
RGB 118 PLUS
NeXT Color Computer,
Sun SparcStation,
SGI WorkStation
Large
Screen
Projector
MBC
SPARC
BUFFER
