Furniture mounting
All receiver models can be mounted under furniture such
as a table or podium surface using the appropriate optional
mounting bracket; the Extron Under-Desk Mounting Kit for 1/8
and 1/4 Rack Width Products (part #70-212-01) (TP R 15 HD A)
or Under-Desk Mounting Kit for 1/2 Rack Width Products (part
#70-077-01) (all other models).
All models except the TP R 15HD A can be mounted through
a table or podium using an Extron Through-Desk Mounting
Kit for quarter or half Rack Width Products (part #70-077-02).
Furniture mount the receiver as follows:
1
. Attach the mounting brackets to the receiver with the
machine screws provided (figure 2-5).
Extron
TP R BNC A
Extron
TP R BNC A
Extron
TP R 15HDA
RG B I NP UT
RG B O UT PU T
R
G
B
H/H V
V
A
AU DIO
L
R
B
SO G C SYNC
PO WE R
15V . 5A DC
L R
RG B I NP UT
RG B O UT PU T
R
G
B
H/H V
V
A AU DIO
L
R
B
SOG C SY NC
PO WE R 15V .5 A D C
L R
Through-desk
Mounted
Under-desk
Mounted
Under-desk
Mounted
TP R 15HD
A
RGB
PEA
KIN G
LEV EL

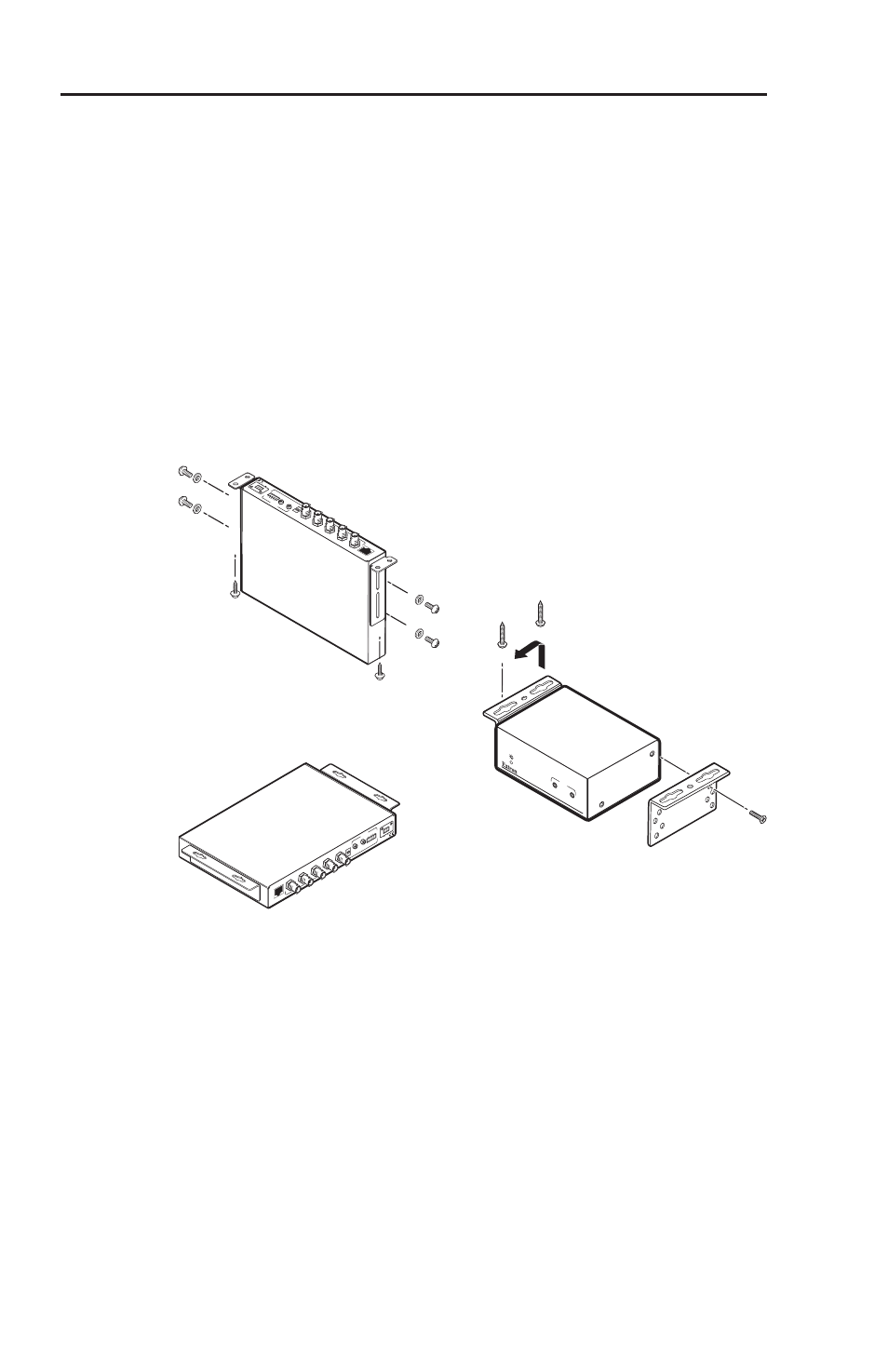

Figure 2-5 — Under-desk or through-desk mounting
2 . For through-surface mounting (all except TP R 15HD A) ,
cut the proper sized hole in the mounting surface.
3 . Hold the receiver with the attached brackets against the
underside of the table or other furniture. Mark the location
of the screw holes of the bracket on the mounting surface.
4 . Drill 3/32 inch (2 mm) diameter pilot holes, 1/4 inch
(6.3 mm) deep in the mounting surface at the marked
screw locations.
