Introduction, cont’d
1-4
PVT Series (Rack Mount Models) • Introduction
About the PVT RGB CV
The P�T RGB C� Twisted Pair Transmitter is a 1/4 rack
mounting model that can transmit high resolution (RGB) video
and composite video, and two associated stereo audio signals to
the PVS 204SA switcher. This model can also be mounted under
a desk or shelf, or on certain projector poles.
PVT RGB CV
RGB
VIDEO
COMPUTER IN
AUDIO IN
AUDIO
IN
VIDEO
IN
VIDEO OUT
L
R
RGB B OUT
RGB A OUT

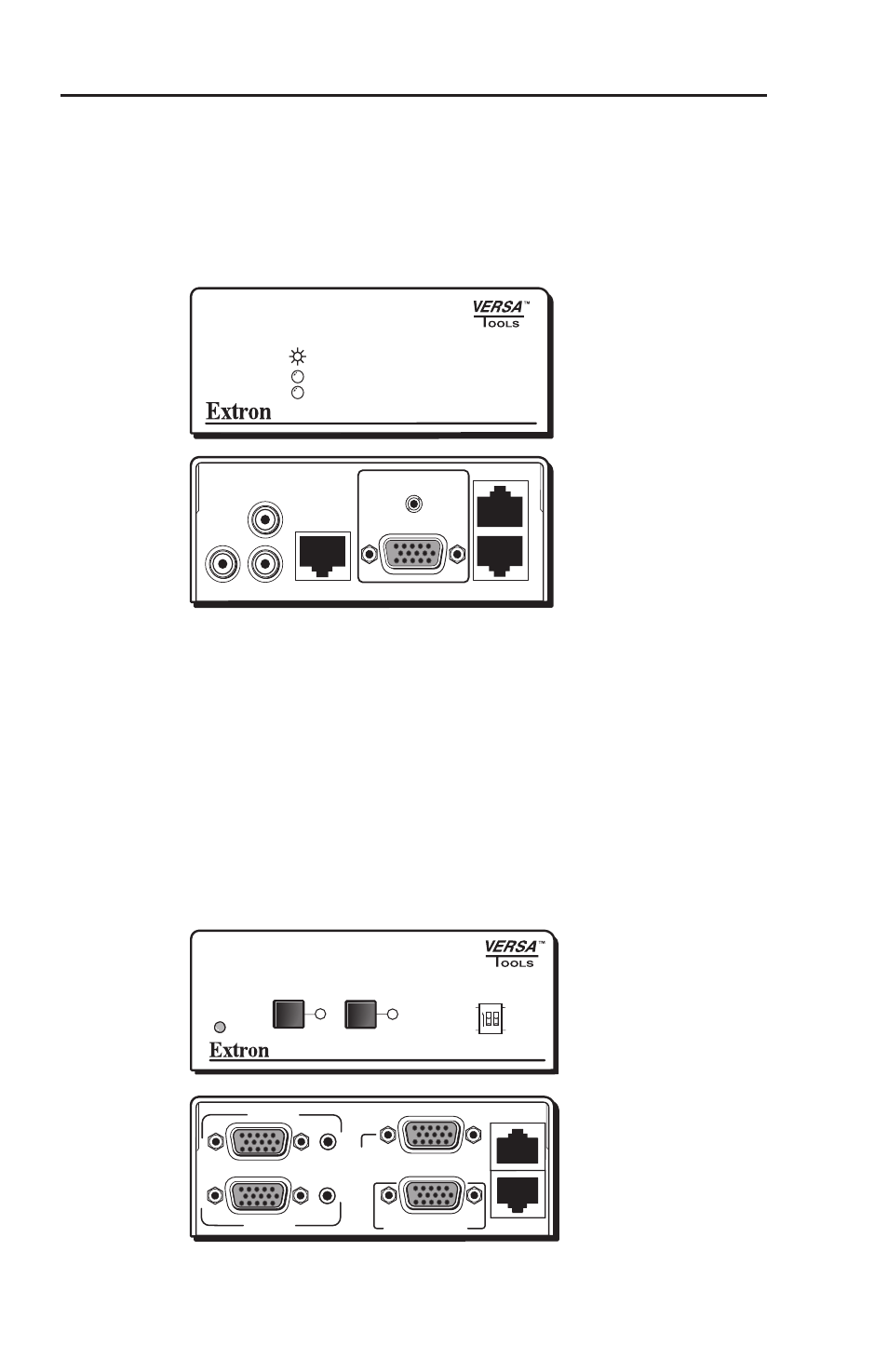

Figure 1-3 — PVT RGB CV face and rear panel
About the PVT SW RGB
The P�T SW RGB Twisted Pair Transmitter is a 1/4 rack
mounting model with two input connectors, a local monitor
output, and a remote contact closure connector. It transmits
high resolution (RGB) video and stereo audio signals to the
PVS 204SA, and switches between the two inputs by front
panel, remote, or auto switching. In addition, the local monitor
output can be set to accept only the input 1 signal, or to follow
the current active input signal. This model can also be mounted
under a desk or shelf, or on certain projector poles.
MONITOR OUT
RGB A OUT
RGB B OUT
INPUT 2
INPUT 1
REMOTE
CONTACT
PIN 1 - IN 1
PIN 4 - IN 2
PIN 5 - GND
PVT SW RGB
AUTO
SWITCH
1
2
FOLLOW
AUTO
INPUT 1
MONITOR
MANUAL
ON
Figure 1-4 — PVT SW RGB face and rear panel
