Installing a Board in the Enclosure
The PowerCage FOX AEX 104 is a double slot board for the PowerCage 1600 enclosure.
NOTE: The boards are hot-swappable and can be installed or removed without
disconnecting power to the PowerCage enclosure.
Use ESD precautions when installing a board to avoid damaging the board. Keep
the board in the anti-static bag until needed. Use proper grounding techniques
during installation.
1. If desired, move DIP switch 2 to
select the desired input data rate.
Down (Off position) is for 4G and up
is for 2G. The default position is 4G.
2. If necessary, remove power from the
PowerCage enclosure.

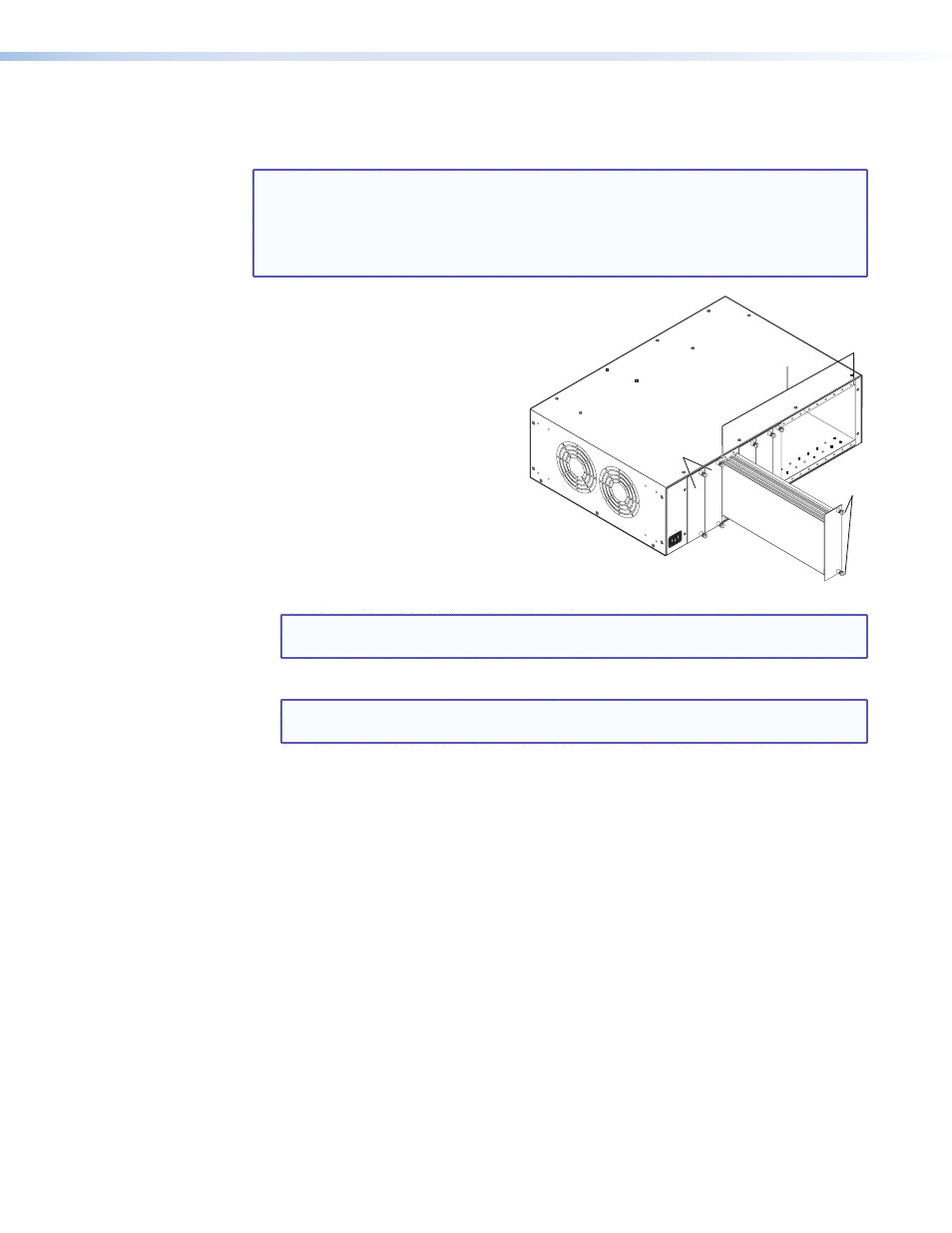

3. Position the board in the slot so
that the power and communication
ports on the front end of the board
are aligned with the matching ports
inside the board cage.
4. Carefully slide the board into the slot
and push the board firmly into place.
5. Tighten the two screws to secure the
board into place.
NOTE: Use a tool to fully tighten the screws after initial installation and subsequent
removal and replacement of the boards.
6. Repeat steps 3 through 5 for all boards needing installation.
NOTE: Ensure the boards are flush with the rear of the enclosure and the screws
tightened securely before applying power.
5A MAX. 100-240V 50/60H
z
16 available single board slots or
8 double board slots
Power
Supply
Screws
