Installation and
Operation
This section describes how to integrate the PowerCage FOX AEX 104 into a FOX matrix
system and how to operate it. Topics in this section include:
• Mounting the Units
• Rear Panel Features
• System Operation
Mounting the Units
The PowerCage FOX AEX 104 must be installed in a PowerCage 1600 enclosure (see
Installing a Board in the Enclosure on page 12).
Rear Panel Features
PowerCage FOX AEX 104
R L
Rx
1
Tx
R L
Rx
2
Tx
AUDIO
R L
Rx
3
Tx
R L
Rx
4
Tx
Extr
on
AUDIO AUDIO AUDIO AUDIO AUDIO
Ä
c
b
d
Е Д Е Д Е Д Е

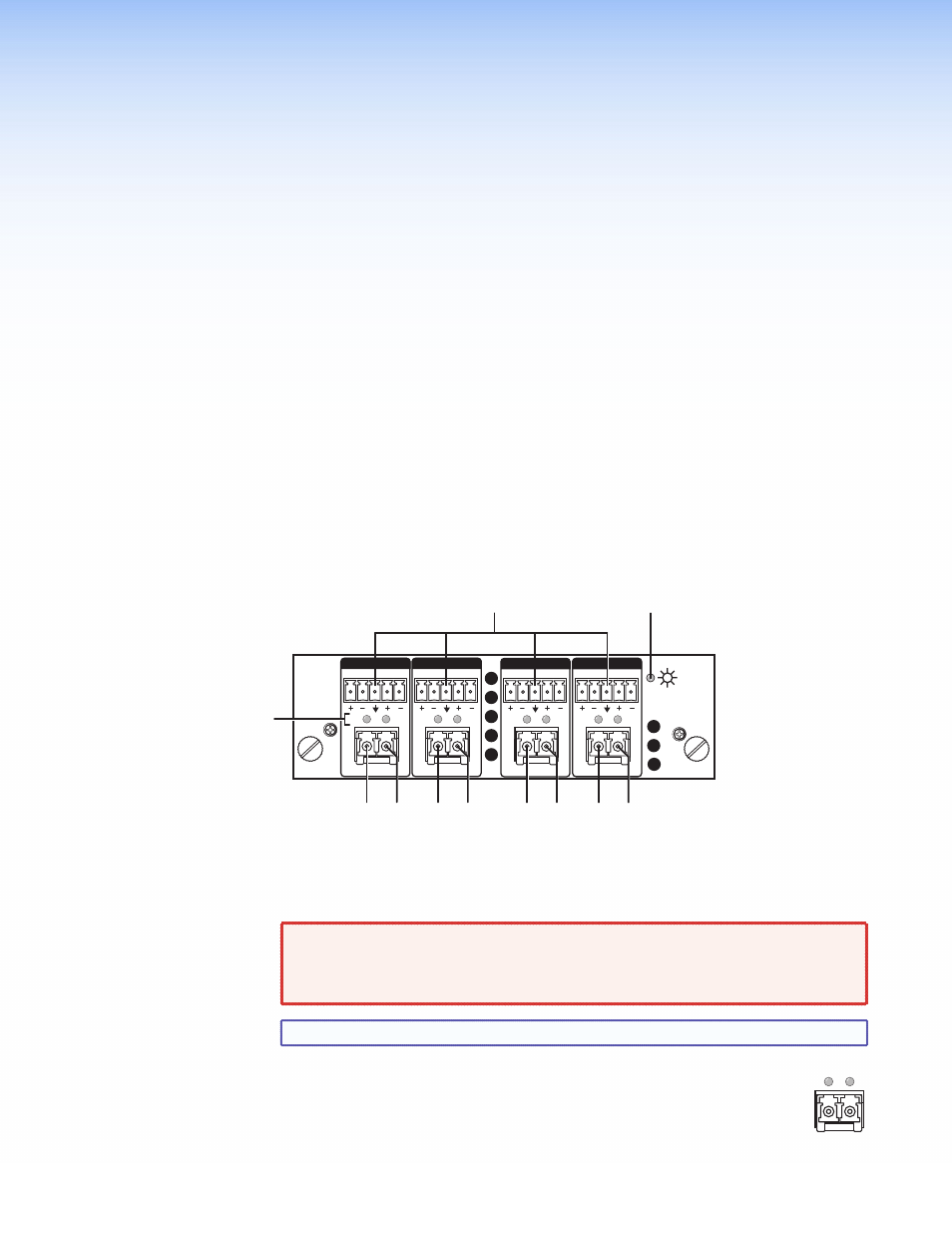

Figure 4. PowerCage FOX AEX 104 Rear Panel
a
Fiber optic connector — One dual port LC SFP module for fiber Tx or Rx transmission
with two LEDs for fiber link status. There is one for each of the four extraction points.
WARNING: These units output continuous invisible light, which may be harmful
to the eyes; use with caution. For additional safety, plug the attached
dust caps into the optical transceivers when the fiber cable is
unplugged.
NOTE: Each fiber input has a re-clocker circuitry to maintain signal integrity.
Ä
Tx connector — Connect a fiber optic cable to the Tx LC connector.
Å
Rx connector — For all one-way video, audio, and serial communications
from the transmitter to the receiver, connect a fiber optic cable to the
Rx LC connector.
AUDIO R L
Rx
1
Tx
+ - - +
