Page 13
b
Tx and Rx indicator LEDs — The optical Tx and Rx LED lightsi indicate fiber
light presence. The Rx LED lights when the Rx device receives light from fiber 1.
The Tx LED lights as soon as there is light presence on the Rx LED.
c
Audio connector — Connect a 3.5 mm, 5-pole captive screw audio
connector for each extraction point.
d
Power LED indicator — Lights when power is applied.
Wiring the Audio Connectors

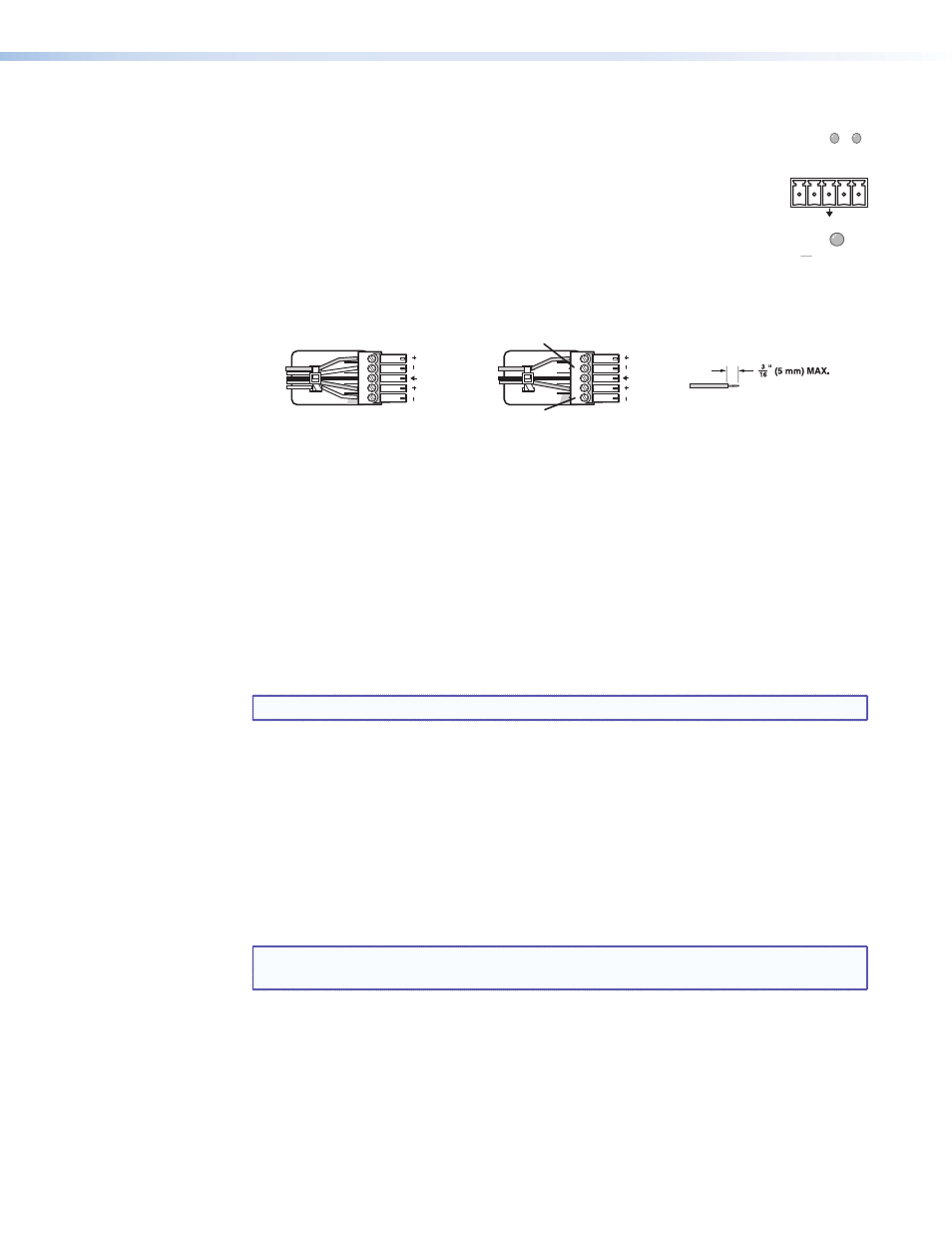

Connect a 3.5 mm, 5-pole captive screw audio connectors for stereo audio output. This
output is unamplified line level audio. Wire the connector as show in figure 5.
Do not tin the wires!
Balanced Audio Output
Tip
Ring
Tip
Ring
Sleeves
Unbalanced Audio Output
Tip
No Ground Here
No Ground Here
Tip
Sleeves
LR
LR
Figure 5.
Captive Screw Connector Wiring for Audio Signals
System Operation
Wiring Configurations
The PowerCage FOX AEX 104 can be used anywhere local audio-only outputs are required.
The following instructions describe integrating the PowerCage FOX AEX 104 after a
FOX matrix switcher for routing to an audio amplifier or a DSP processor. It can also be
incorporated before a FOX matrix switcher for independent processing of source audio
signals by a DSP processor (see
applications). Each audio extraction point works independently.
NOTE: Transmission of HDMI video with HDCP content requires two fibers.
1.
Connect the fiber output (OUT) of the matrix switcher to the Rx port of an extraction
point on the PowerCage FOX AEX 104.
2.
Connect the Tx port of the same extraction point to the FOX receiver (Rx).
3.
Connect the Tx port of the FOX receiver back into the receiver port on the matrix
switcher (Rx).
4.
Connect local 2-ch audio output to the Audio connector of the extraction point.
After the PowerCage FOX AEX 104 and all connected devices are powered up, the system is
fully operational. If any problems are encountered, ensure all traditional and fiber cables are
routed and connected properly.
TIP: If problems persist, call the Extron S3 Sales and Technical Support Hotline (see the
on the last page for contact numbers).
AUDIO R
L
+ -
-
+
Rx
Tx
PowerCage FOX AEX 104 • Installation and Operation
7
