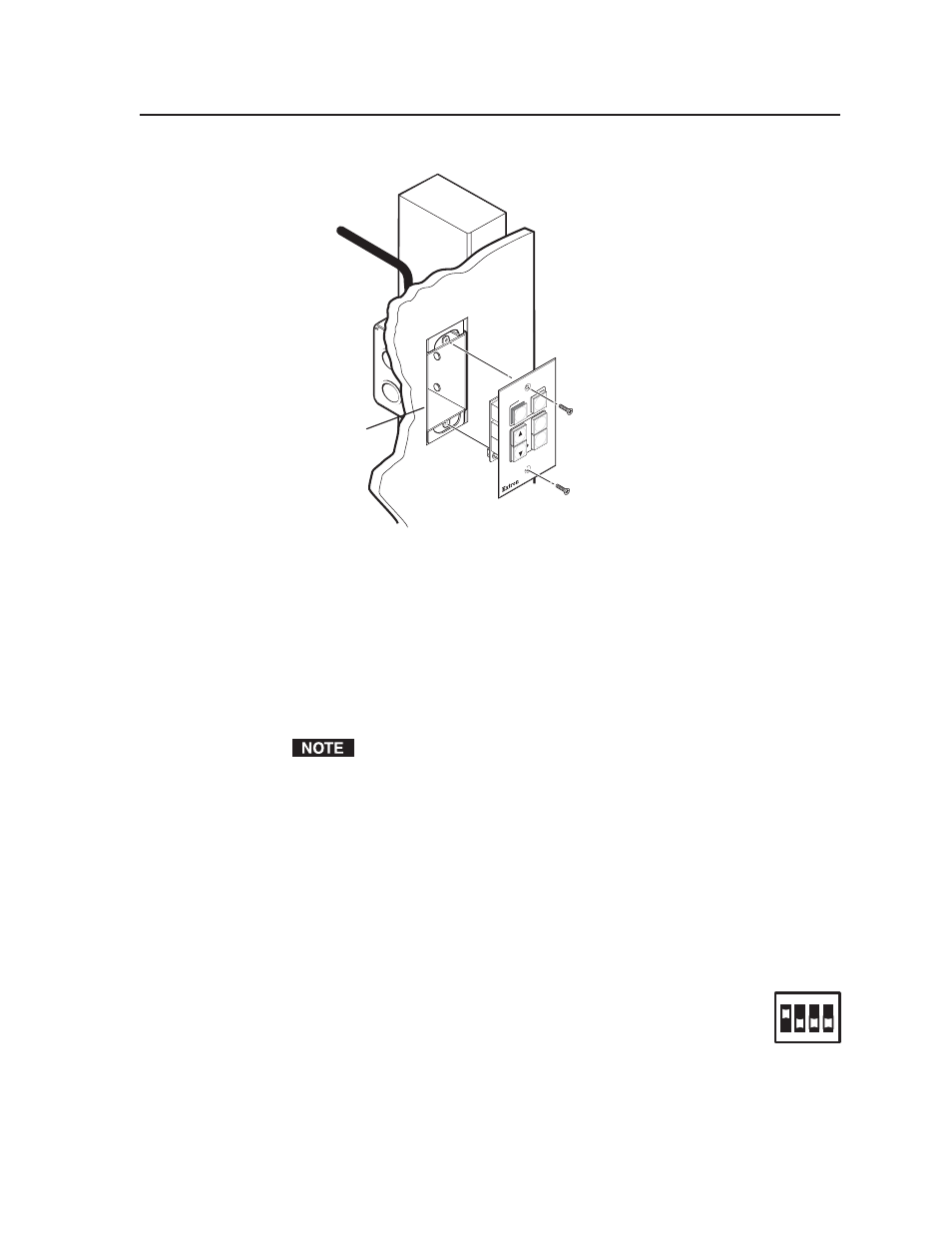

Mounting the MLC 52 in a wall box
Configuring the MLC 52
The MLC 52 series can be programmed using the following methods:
•
IR Learning from your projector’s remote control
•
IR data transfer from another MLC 52 that has been configured
•
Using projector/display drivers with the MLC 52 Windows-based
configuration software
You can use IR drivers, via the configuration software, to configure
either of the IR or RS models. However, in order to configure the RS models
with RS-232 projector/display drivers, you must use the configuration
software.
Configuring using IR Learning
You can use IR Learning to program the functions on your projector’s remote
control into the buttons on the MLC front panel. Refer to “Configuring using IR
learning” in chapter 3, “Operation,” of the MLC 52 User’s Manual for more details
on this process.
Step 1
Apply power to the MLC 52.
Step 2
Set configuration switch #1 to On,
on the rear panel, as shown at right.
1
ON
2 3 4
