MLM 226 Faceplates Installation Guide, cont’d
MLM 226 Faceplates • Installation Guide
4
Templates
Use one of the following templates as a guide to measure and mark the hole for
installing the MLM 226 faceplate with an attached MLC 226 IP. (Refer to your
MLC 226 IP user’s manual for instructions on preparing the mounting site.)
CAUTION
These templates are not to scale.
Use the dimensions shown in the
templates as reference guidelines for measuring and drawing the rectangle
that will be cut out.
The MLC controller requires a depth of at least 2.0" (5.1 cm) inside the wall or
furniture.

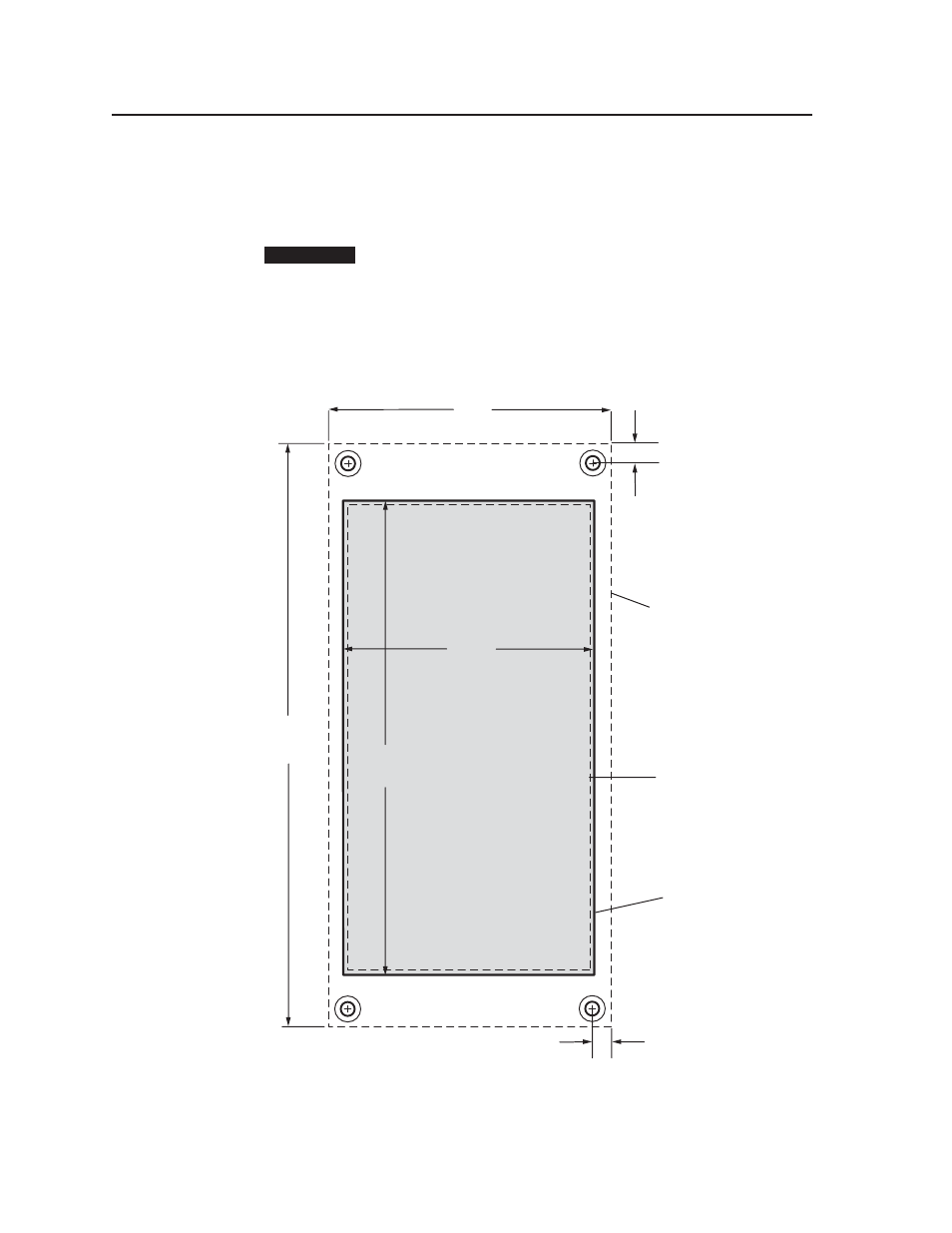

MLM 226 L and MLC 226 IP L template
6.5"
(16.5 cm)
Cut-Out Template for Extron's MLM 226 L and MLC 226 IP L
TEMPLATE IS NOT FULL SIZE.
To install MLC 226 IP
and MLM 226 L
directly into furniture,
cut along this line.
Top Panel
2.9"
(7.4 cm)
5.4"
(13.7 cm)
SURFACE CUT-OUT AREA
FOR FURNITURE MOUNT
3.15"
(8.0 cm)
Location of MLC 226 IP
.295"
(0.75 cm)
(4 places)
.250"
(0.64 cm)
(4 places)
