MLM 226 Faceplates Installation Guide, cont’d
MLM 226 Faceplates • Installation Guide
2
•

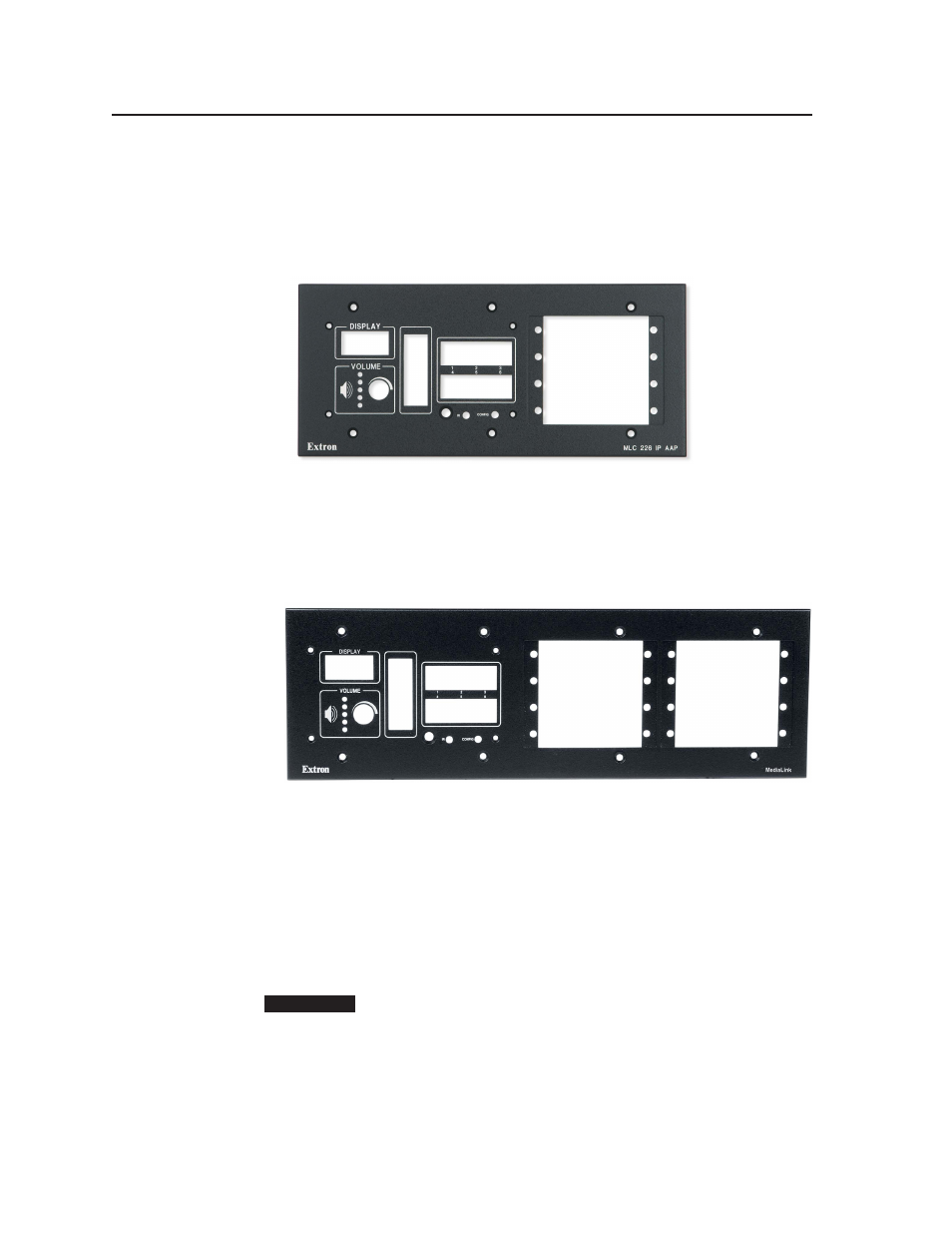

MLM 226 5GWP
— A five-gang (4.50" H x 10.04" W [11.43 cm H x 25.50 cm
W]) faceplate with an opening that accommodates four single-space AAPs. It
can be mounted to a mud ring, an Extron Surface Mount Box, an Extron
External Wall Box, or a standard electrical box.
Part numbers:
70-377-02 (black), 70-377-03 (white), 70-377-05 (RAL9010
white)
•
MLM 226 7GWP
— A seven-gang (4.50" H x 13.665" W [11.43 cm H x
34.71 cm W]) faceplate with two openings that accommodate four single-
space AAPs each (eight AAPs total). It can be mounted to a mud ring, an
Extron Surface Mount Box, an Extron External Wall Box, or a standard
electrical box.
Part numbers:
70-340-02 (black), 70-340-03 (white), 70-340-05 (RAL9010
white)
Replacing an MLC 226 IP Faceplate with an MLM
Faceplate
1.
If your MLC controller is already installed in a wall or furniture, remove the
four screws that attach it to its mounting surface (marked
a
in the diagram
on the next page), and lift it out.
2
.
After the MLC has been removed from the wall or furniture, use a small
Phillips screwdriver to remove the four faceplate attachment screws (
b
in the
diagram on the next page), and save them for later use.
CAUTION
Do not remove the four faceplate screws while the MLC is installed in a
wall or furniture, or the controller may fall down into the wall or
furniture.
