Cabling
This section describes how to connect cables to the MTP/HDMI U R.
•
•
Rear Panel Cabling

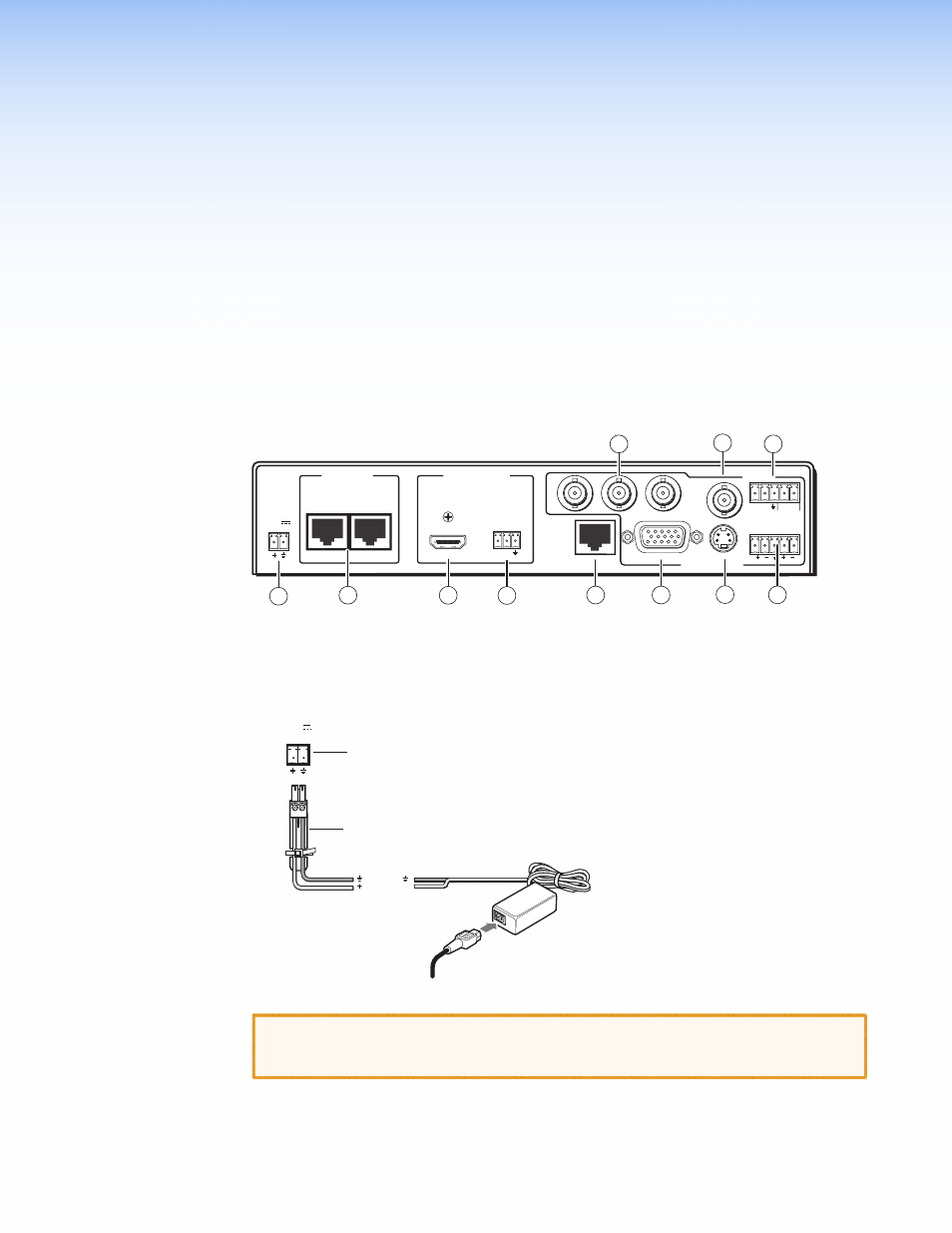

The illustration below shows the rear panel features of the MTP/HDMI U R.
DIGITAL OUTPUT
DIGITAL INPUT
POWER
12V
0.8A MAX
1
2
HDMI
RS-232
PASS THRU
Tx Rx
RGB
VID
Y/C
B-Y
Y
R-Y
ANALOG OUTPUTS
RS-232
Tx Rx
SPARE
MTP INPUT
1
MONO AUDIO
2
3
8
5
2
4
6
7
1
9
10
11
Figure 2.
MTP/HDMI U R Rear Panel Features
a
Power input — Connect the standard IEC power cord from a 100 to 240 VAC,
50-60 Hz power source into the 12 VDC, 0.8 A power receptacle. Wire the 2-pole
captive screw connector as shown below.
12V
0.8 A MAX
POWER
Rear Panel
Power Receptacle
DC Power Cord
Captive Screw Connector
AC Power Cord
Ground
+12 VDC
External
Power Supply
(12 VDC, 1 A )
Figure 3.
Power Supply Connection
CAUTION: The length of the exposed (stripped) copper wires is important. The ideal
length is 3/16 inch (5 mm). Longer bare wires can short together and
shorter wires are not as secure in the connectors and could be pulled out.
