Operation
This section of the guide discusses the operation of the MTP/HDMI U R and cover the
following points:
•
•
•
•
Front Panel Overview
MTP/HDMI U R
RGB
PEAKING
LEVEL
DIGITAL SIGNAL
ANALOG
SIGNAL
AUDIO
RS-232
VID
Y/C
YUV
RGB
3
2
5
4
1

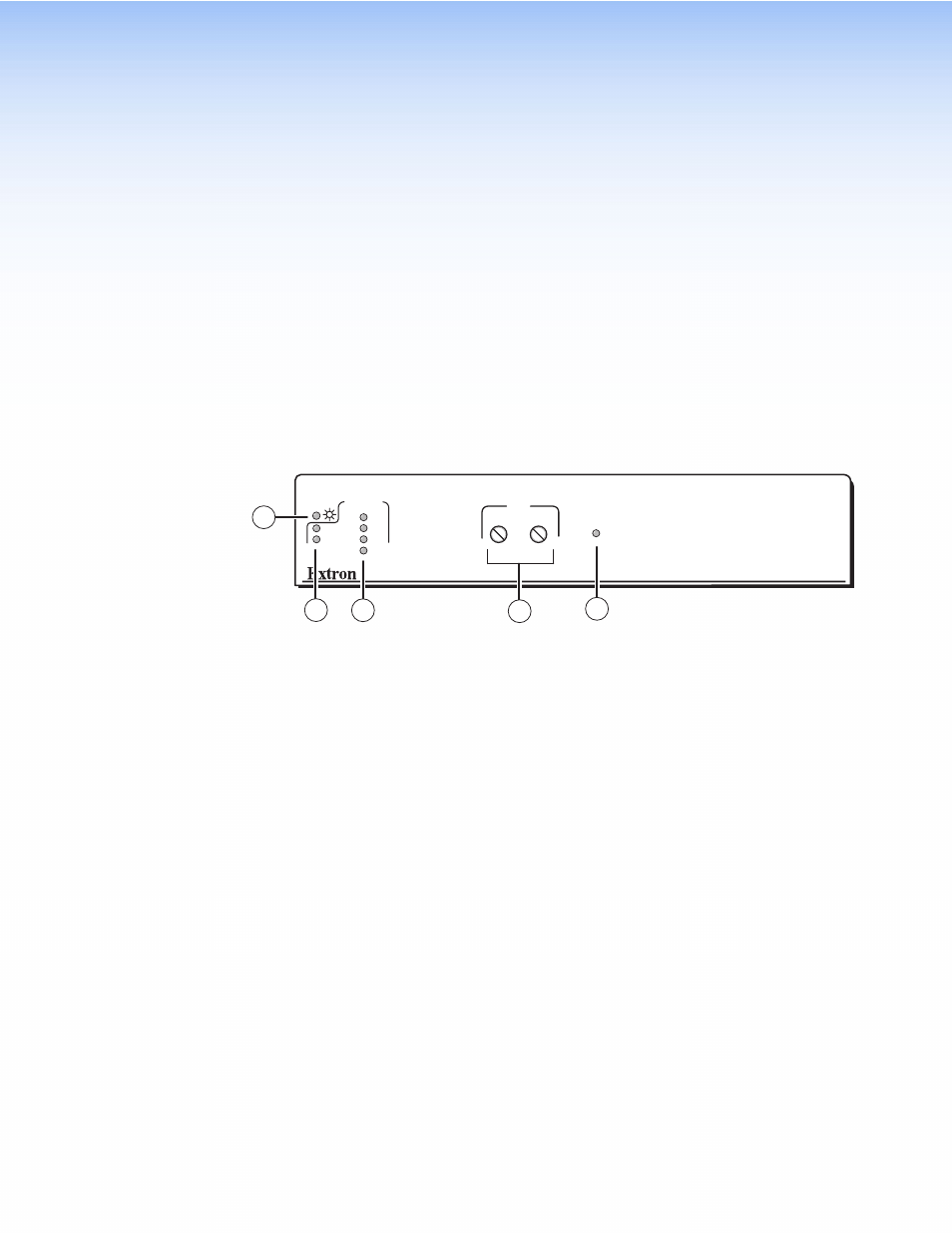

Figure 12.
MTP/HDMI U R Front Panel Features
a
LED indicator — A solid green light indicates the unit is receiving power from the
connected power supply.
b
Audio and RS-232 LEDs — These two LEDs light when either audio or RS-232 signals
are detected.
c
Analog Signal presence LED indicators — These four LEDs (VID, Y/C, YUV, or RGB)
light green when the applicable input signal is detected.
d
RGB Level and Peaking adjustment knobs — These allow adjustments to be made
to the brightness and sharpness of the MTP input video.
e
Digital Signal LED — This LED lights green when a digital signal is detected.
MTP/HDMI U R • Operation
9
