The MTP/HDMI U R ships with an external desktop 12 V, 1 A power supply that accepts
100 to 240 VAC, 50 Hz or 60 Hz input.
A summary table of the MTP/HDMI U R connectivity is shown below.
Feature Connectivity
Digital.output HDMI.(1)
RGBHV,.RGBS.output 15-pin.HD.(1)
Component.video.
(Y,.R-Y,.B-Y).output
BNCs.(3)
Composite.video.output BNC.(1)
S-video.output 4-pin.mini.DIN.(1)
Dual.mono.audio.output 5-pin.captive.screw.(1)
RS-232.connectivity
5-pin.captive.screw.(1)
3-pin.captive.screw.
(pass-through).(1)

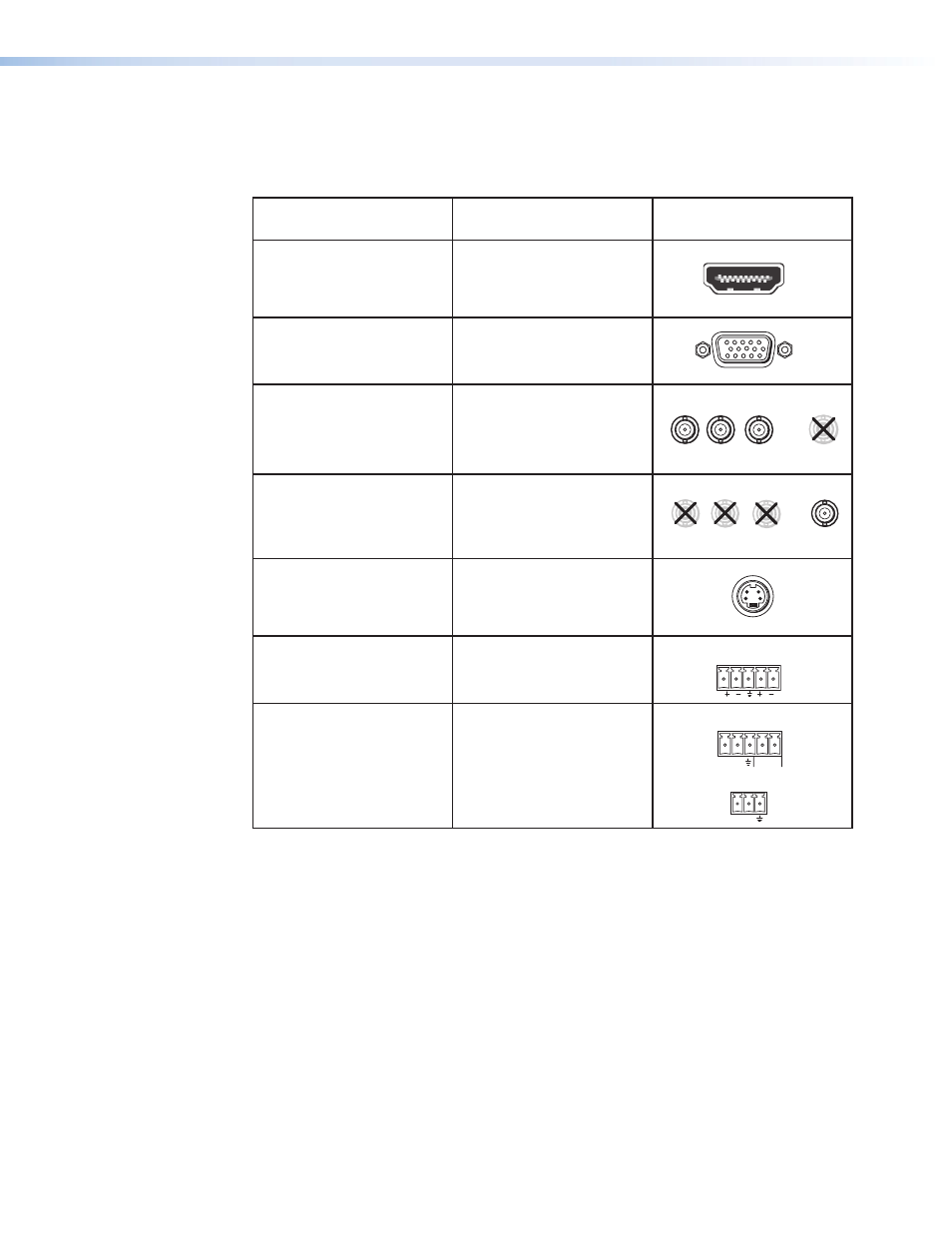

Figure 1. MTP/HDMI U R Connectivity Table
R-Y B-Y VID Y
R-Y B-Y VID Y
Y/C
1
MONO AUDIO
2
RS-232
PASS THRU
Tx Rx
RS-232
Tx Rx SPARE
MTP/HDMI U R • Introduction 2
