Wiring connectors, Digital connector pin connector, Hdmi connector pin assignments – Extron Electronics MTP_HDMI U R User Guide User Manual

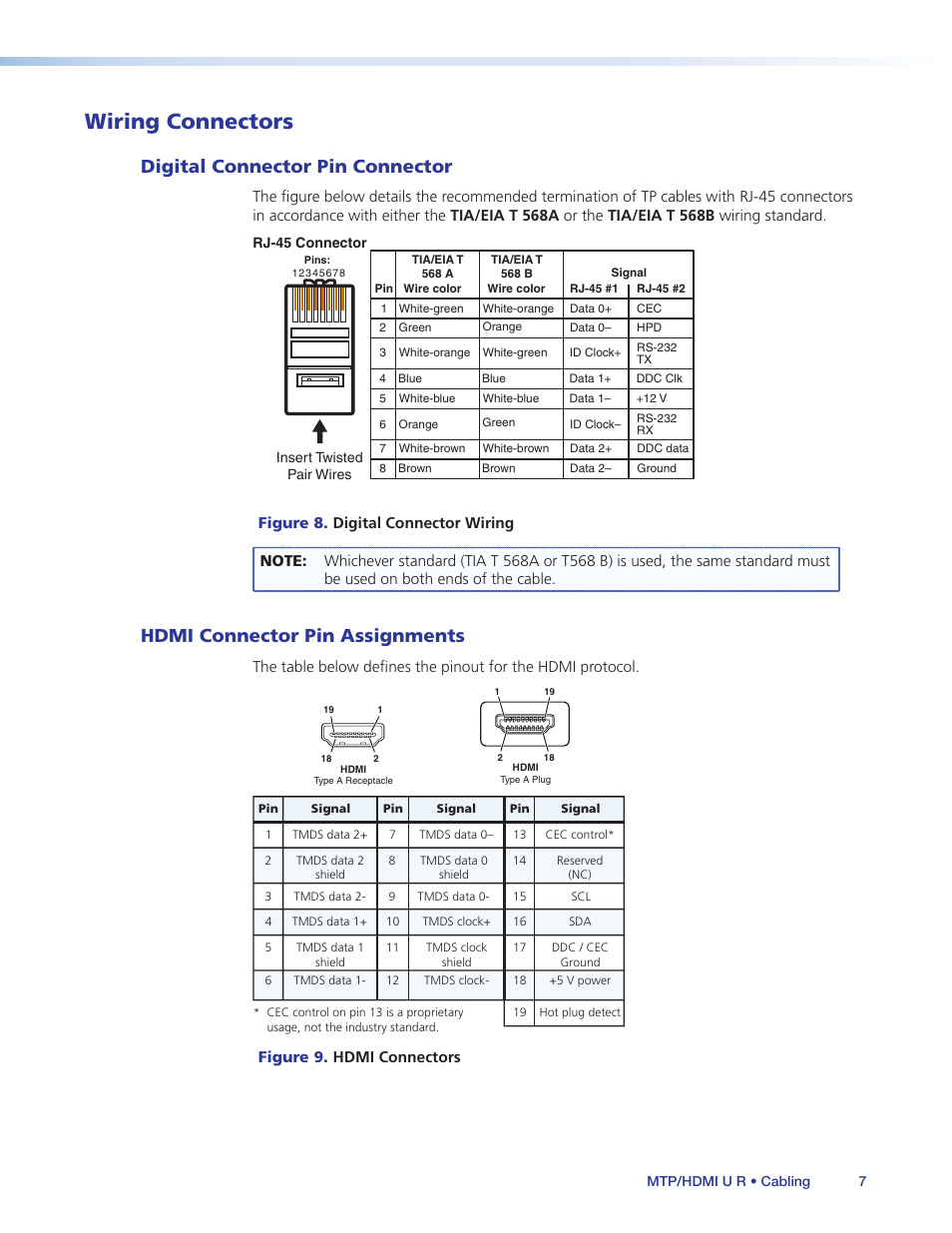

Page 13
