Page 32
4-7
MP 101 Series • MP 101 D
installation information, refer to the installation guide
shipped with the Decora faceplate.
Remote Control

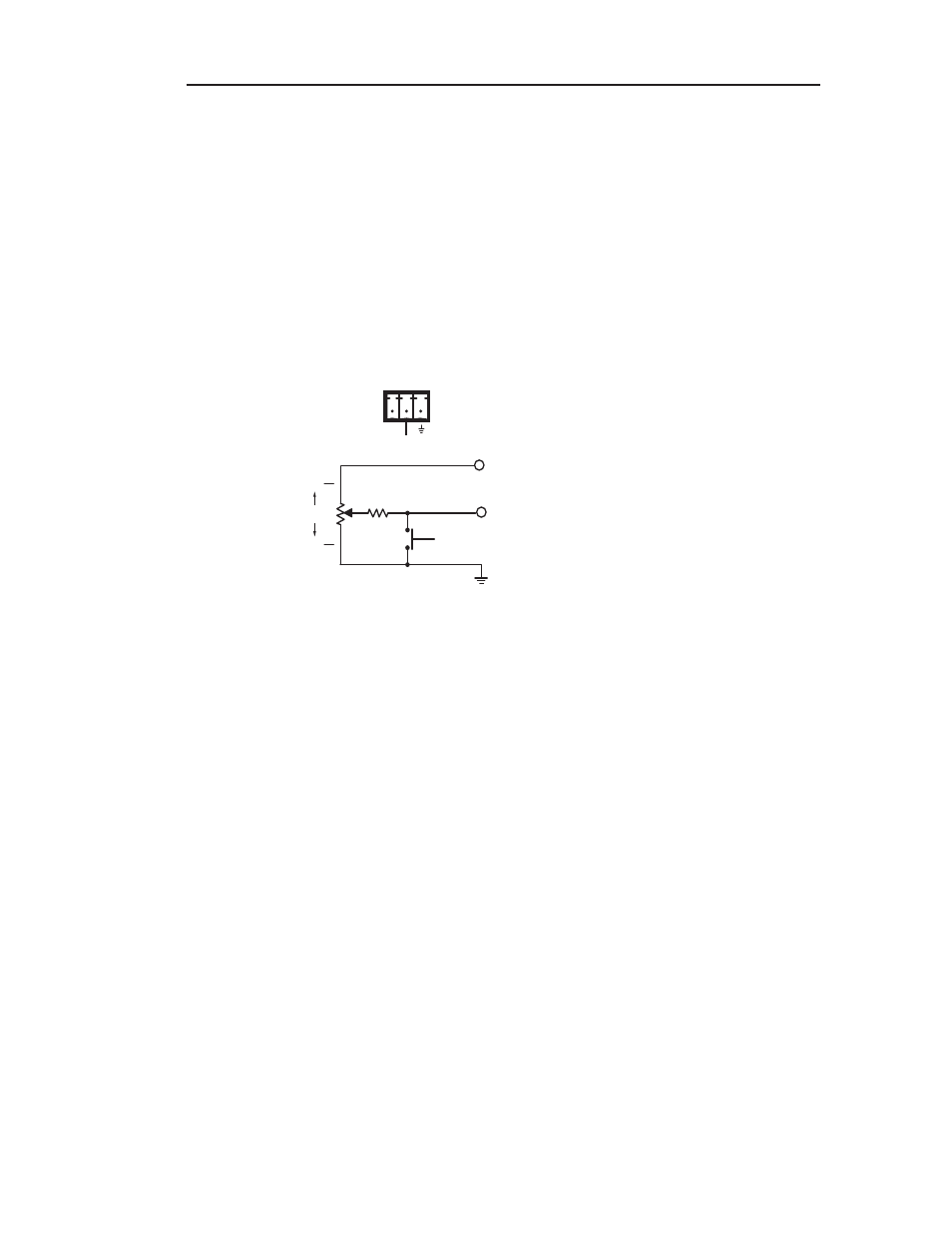

Remote connector wiring
Pin 1
is 10 VDC reference voltage. Pin 2 is volume control DC
voltage; range is 0 to 10 V, where 0 V is mute and 10 V provides
maximum volume. Pin 3 is ground.
N
All nominal levels are at ±10%.
REMOTE
10V
VOL/MUTE
1
2
3
GND
10K
2K
MAX
2
3
1
MIN
MUTE
Remote control options
The MP 101 D has three remote control options:
1.
The Extron VCM 100 volume/mute controller and
VC 50
volume controller use a 10 k ohm potentiometer as
the main method for controlling volume levels.
The VCM 100 includes an illuminated Mute button and
operates in sync with the MP 101 AAP.
2.
The Extron MLA-VC10 converts RS-232 serial command
to 0~10 volt variable DC for volume control.
3.
Generic volume/mute controllers are standard 10 k ohm
potentiometers.
