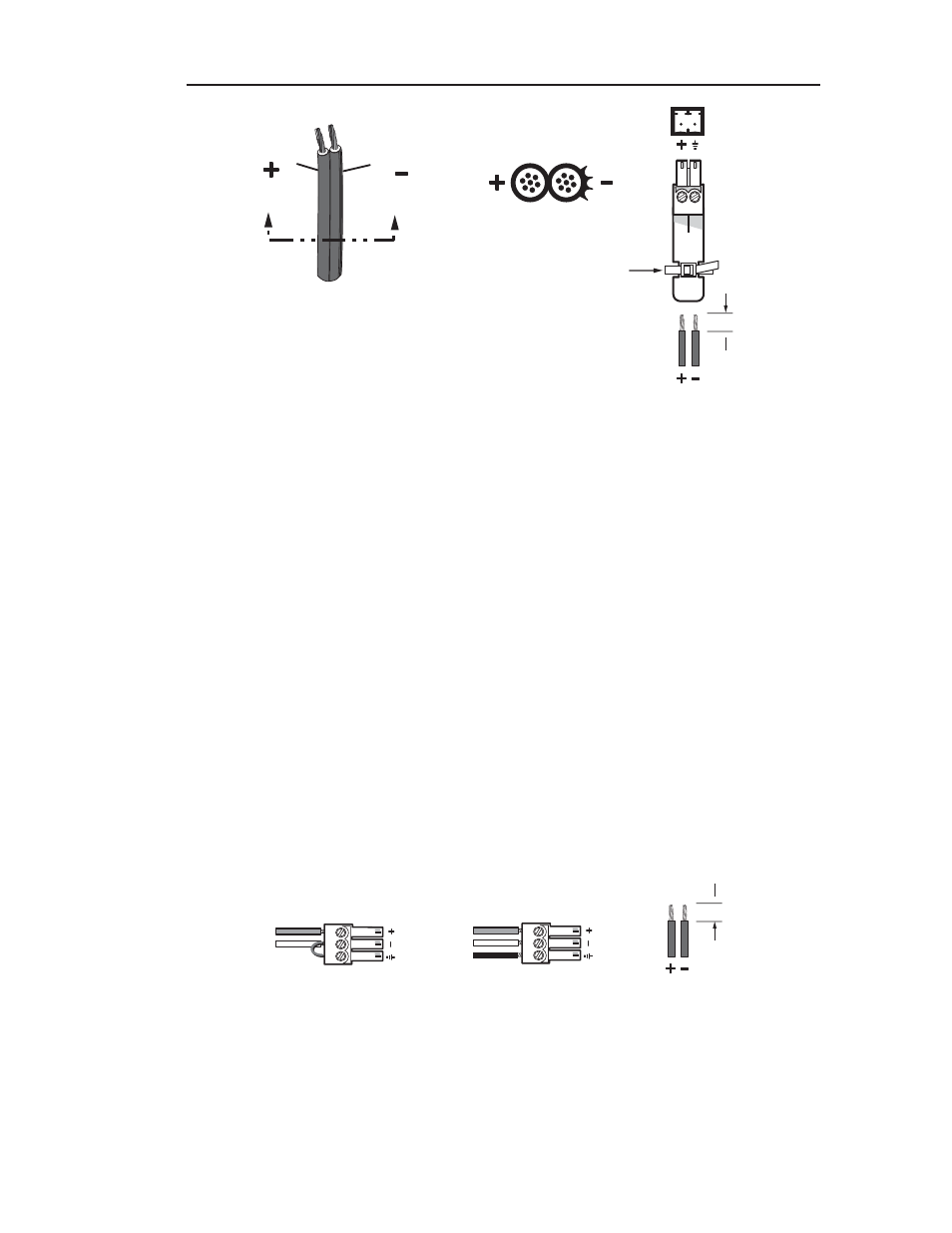

2-3 MP 101 Series • MP 101
Power Supply
Output Cord
Orange Captive Screw
Connector
3/16" (5 mm) Max
SECTION A–A
Ridges
Smooth
A A
Tie Wrap
N
Your MP 101 may have shipped with a blue captive screw
plug. The blue connector does not have the extended tail or
the included tie-wrap.
C
Do not tin the stripped power supply leads before
installing the captive screw connector. Tinned wires
are not as secure in the captive screw connectors and
can be easily pulled out. They may also break after
being bent several times.
W
The two power cord wires must be kept separate while
the power supply is plugged in. Remove power before
wiring.
b
Power LED — This LED lights green to indicate that the unit is
receiving power.
Mic input (microphone level)
c
Mic Input — A 3-pin, captive screw connector for a standard
condenser microphone connection.
Tip
Sleeve
Unbalanced Input
(high impedance)
Tip
Sleeve
Ring
Balanced Input
(high impedance)
(5 mm) MAX
Captive Screw
Connector stripping
3/16"
C
For unbalanced audio, ensure that the Phantom power
switch is set to the “off” position.
