2-8 MP 101 Series • MP 101
MP 101, cont’d

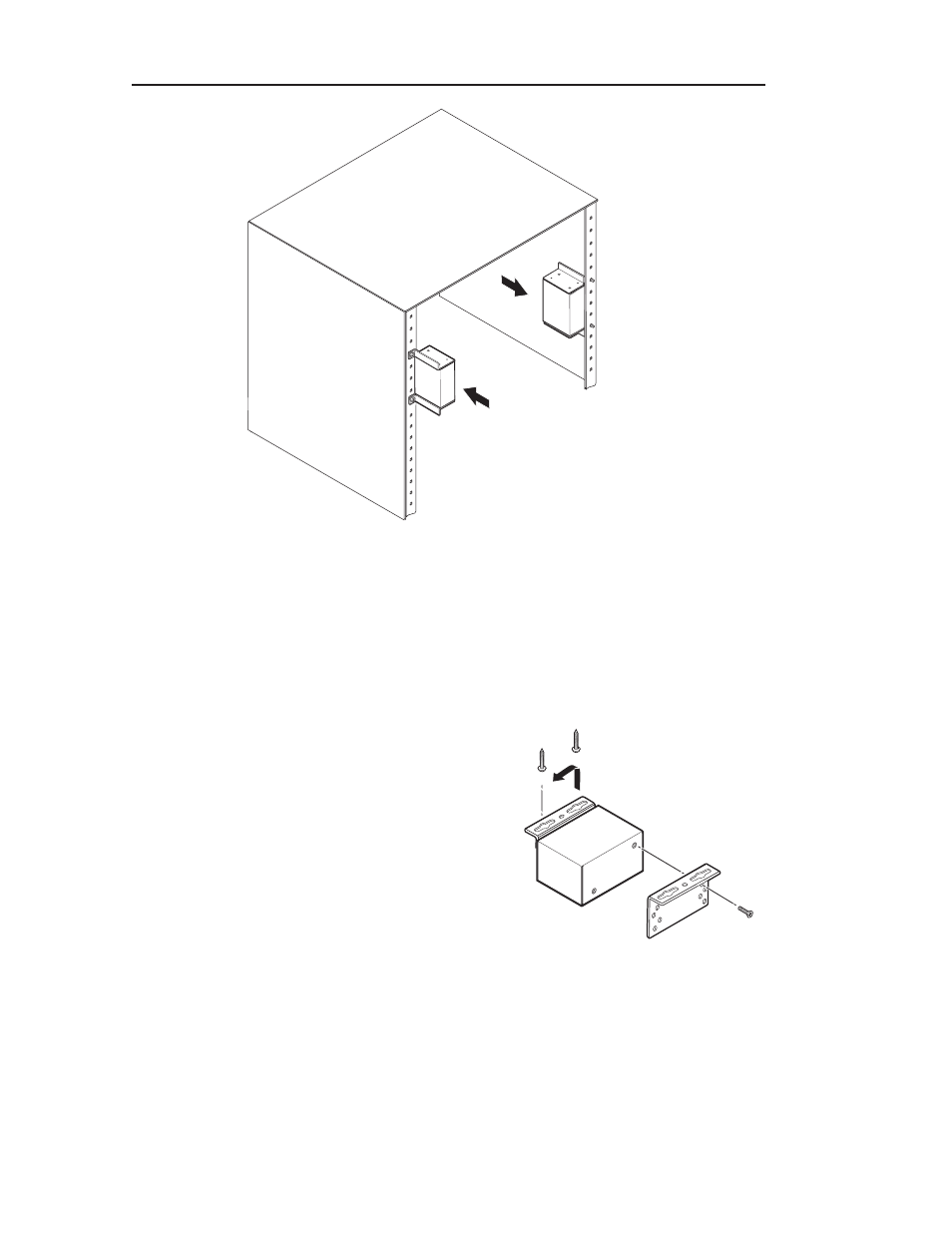

Outside
Inside
Furniture mounting
In addition to using the MP 101 on a rack, you can mount it on
furniture using the optional MBU Mini Under-Desk Mount Kit
(part #70-212-01). To use this option, do the following:
1. Remove the rubber feet if they were previously installed.
2. Attach one of the mounting brackets to the MP 101, as
shown below.
a. Remove the two
machine screws from
one side of the unit.
Save these screws for
future use.
b. After lining up a
bracket with the holes,
attach the bracket using
the longer machine screws
provided.
c. Repeat step b to attach the other bracket.
3. Attach the MP 101 to the furniture.
a. Hold the unit against the underside of the table or
other furniture, and mark the locations for four screws
(two screws per bracket) on the mounting surface.
