2-4 MP 101 Series • MP 101
MP 101, cont’d
Remote connection
d
Remote — An optional 3-pin, captive screw connector allows
a wall mounted audio controller or MediaLink product to
remotely control volume and mute levels for the MP 101
unit. See “Remote Control”, later in this chapter, for more
information.
Audio output (line level)
e
Line Output — A 3-pin, captive screw connector outputs to
audio mixers, amps switchers, or other non-microphone audio
equipment.
Unbalanced Output
(high impedance)
Tip
Sleeve
NO Ground Here
CAUTION
For unbalanced audio, connect the sleeve(s)
to the ground.
DO NOT connect the sleeve(s)
to the negative (-) contact.
(5 mm) MAX
Captive Screw
Connector stripping
3/16"
Tip
Sleeve
Ring
Balanced Output

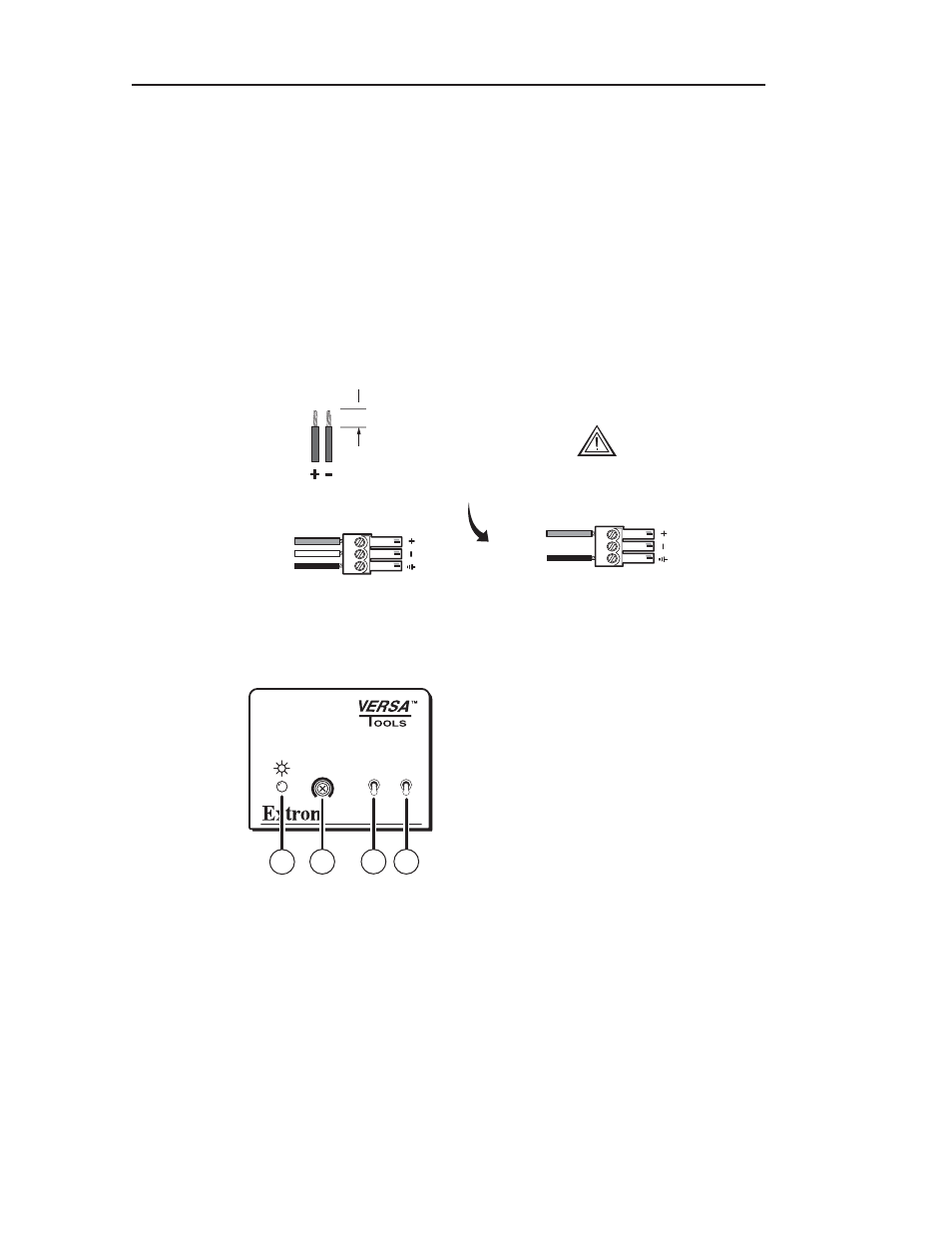

Front Panel Features
MIC GAIN
(dB)
25 72
LOW CUT PHANTOM
ON
OFF
MP 101
2 1 3 4
a
Power LED — This LED lights green to indicate that the unit is
receiving power.
b
Mic Gain — A recessed, adjustable potentiometer defi nes the
amount of input signal (between 25 and 72 dB) allowed into the
preamp.
c
Low Cut fi lter switch — Provides switchable low cut fi ltering to
remove wind and “table rumble” noise.
d
Phantom power switch — Provides switchable 48 volt phantom
power for condenser microphones.
