MP 101 D, cont’d
MP 101 Series • MP 101 D
N
Before mounting, the MP 101 D should be tested to verify
that its connections and settings are correct.
To mount the MP 101 D into a Decora faceplate, do the
following:
1.
Secure all cables and connections onto the MP 101 D.
2.
If it was not done previously, adjust the MP 101 D from its
rear panel. See the previous section, “Adjusting the
MP 101 D”, for detailed instructions.
3.
Place the MP 101 D through the opening in the wall or
furniture and into the wall box. Take care not to damage
the output cables, which fi t behind the preamplifi er at the
back of the wall box.
4.

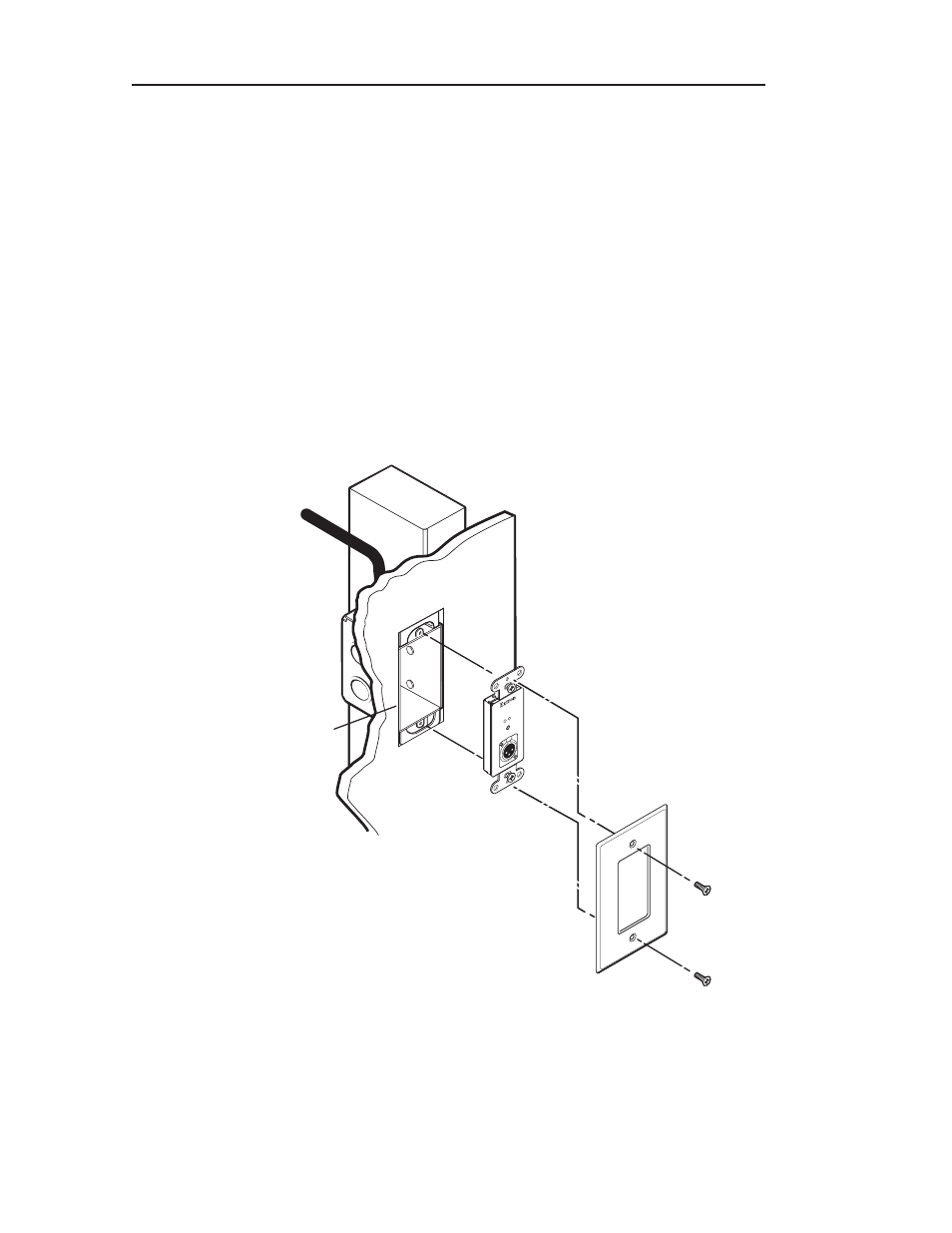

Attach the Decora wallplate to the MP 101 D, as shown
below.
Wall opening
is flush with
edge of box.
Wall Box
Decora
Faceplate
Extron
MP 101 D
Mic to Line
Preamplifier
MIC IN
ACTIVE
MUTE
5.
Pretest the MP 101 D before performing the fi nal mount in
step 6.
6.
Perform the fi nal mount by attaching the cabled
MP 101 D and Decora faceplate into a wall. For detailed
