Back of the rack installation – Extron Electronics MP 101 Series User Guide User Manual
Page 15
2-7
MP 101 Series • MP 101
Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
1U Universal Rack Shelf
Both front false faceplates
use 2 screws.
1/4 Rack Width
Front False
Faceplate
1/2 Rack Width
Front False
Faceplate
1/8 Rack Width
Front False
Faceplate

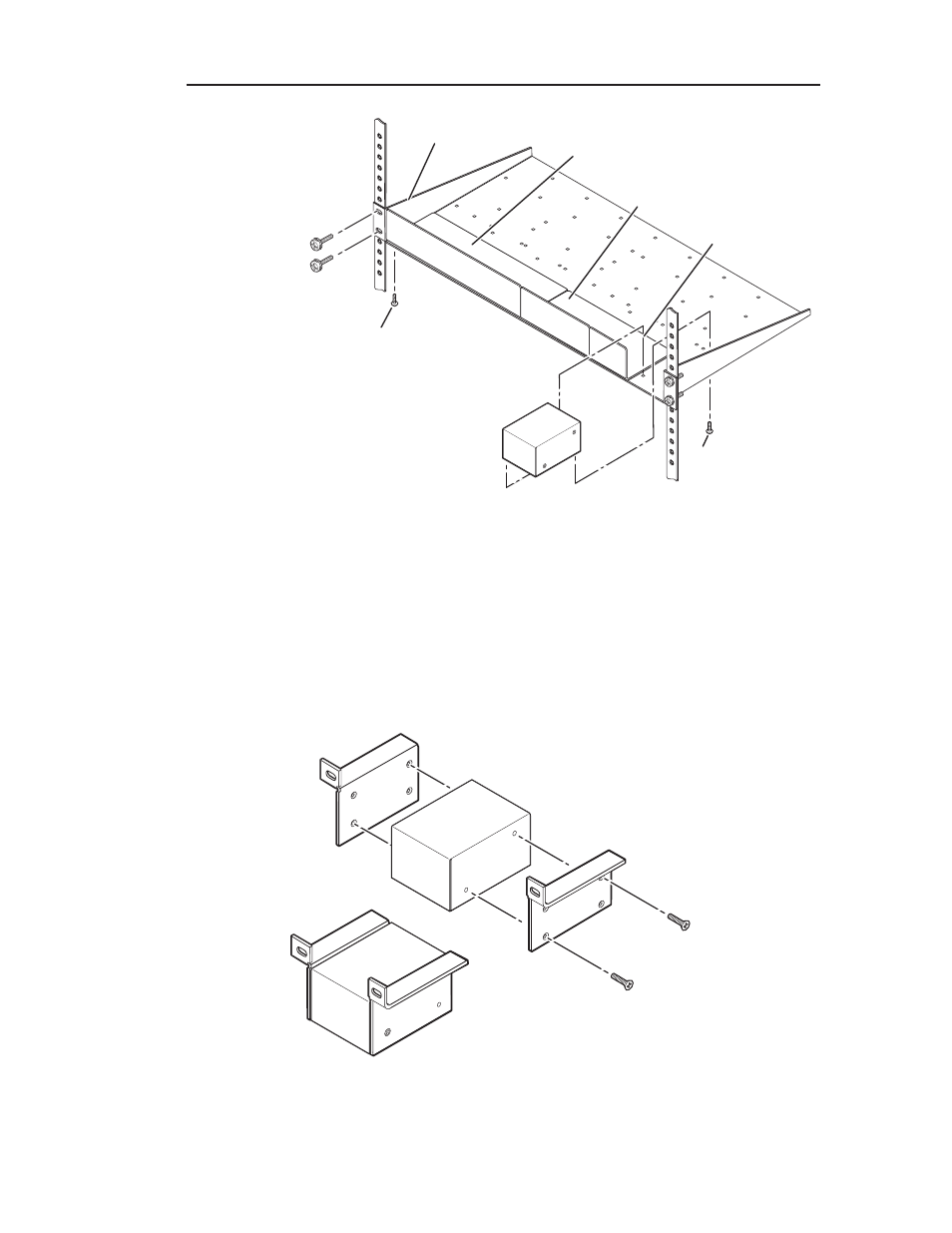

Back of the rack installation
The MP 101 can be conveniently mounted on the rear of a rack
by using the Extron MBB 100 Back of Rack Mounting Kit
(part #70-367-01). This mounting option allows the MP 101 to be
vertically positioned.
1.
Attach the two back of the rack mounting brackets to the
sides of the MP 101, using the four included mounting
screws.
2.
Mount the unit on the rack, using the two included rack
screws. The MP 101 can be vertically mounted facing in
either direction, as shown in the following fi gure.
