3-6
MP 101 AAP, cont’d
MP 101 Series • MP 101 AAP
4 . Repeat steps 1 through 3 to mount any other AAPs. Cover
any openings in the faceplate with blank plates (provided).
5. If it was not done previously, adjust the MP 101 AAP from
its rear panel. See the previous section, “Adjusting the
MP 101 AAP” for detailed instructions.
6. Pretest the MP 101 AAP before fi nal mounting of the
faceplate.
7. Perform the fi nal mount by attaching the cabled device
faceplate or AAP wallplate into a wall or piece of
furniture. For detailed installation information, refer to the
installation guide shipped with the faceplate.
Remote Control
The wiring and control options described below pertain to all
models in the MP 101 series.

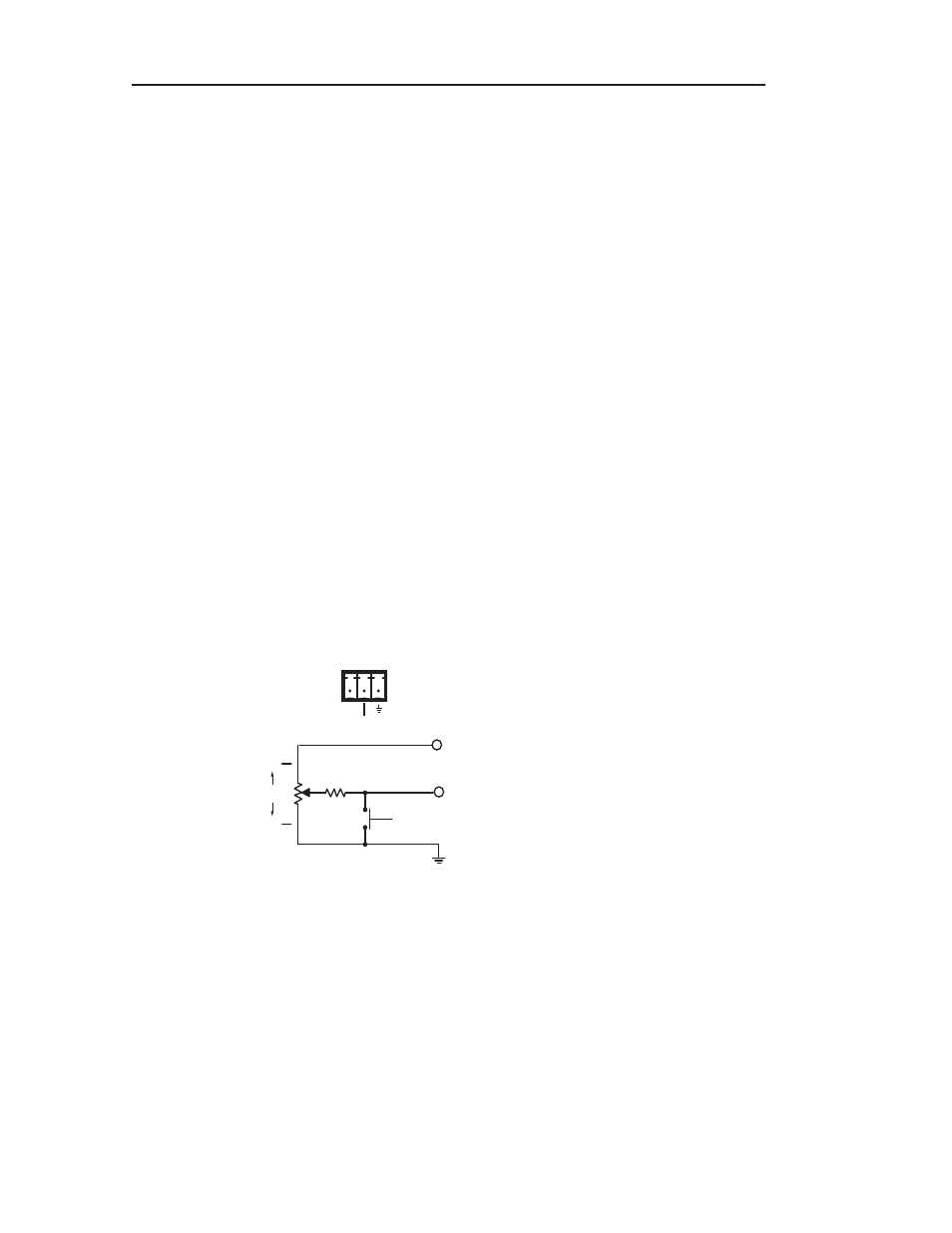

Remote connector wiring
Pin 1 is 10 VDC reference voltage. Pin 2 is volume control DC
voltage; range is 0 to 10 V, where 0 V is mute and 10 V provides
maximum volume. Pin 3 is ground.
N
All nominal levels are at ±10%.
REMOTE
10V
VOL/MUTE
1 2 3
GND
10K
2K
MAX
2
3
1
MIN
MUTE
