MSG Matrix Switchers • Reference Information B-3
Installing Custom Engraved Nameplates
Custom engraved input and output nameplates are available, by special order, for
the front panel of the MSG matrix switchers. Attachment screws come pre-installed
on the panel and permit easy installation of the optional nameplates. Contact your
Extron Sales Representative for specifications and prices.
Installing the custom nameplates
1. Using an Allen wrench, remove the nameplate mounting screws for either the
input or output group.
2. Hold the custom engraved nameplate in place on the front panel of the MSG
matrix switcher, aligning the holes in the plate with the screw holes in the
front panel.
3. Insert a mounting screw into each end of the nameplate and tighten with the
Allen wrench.

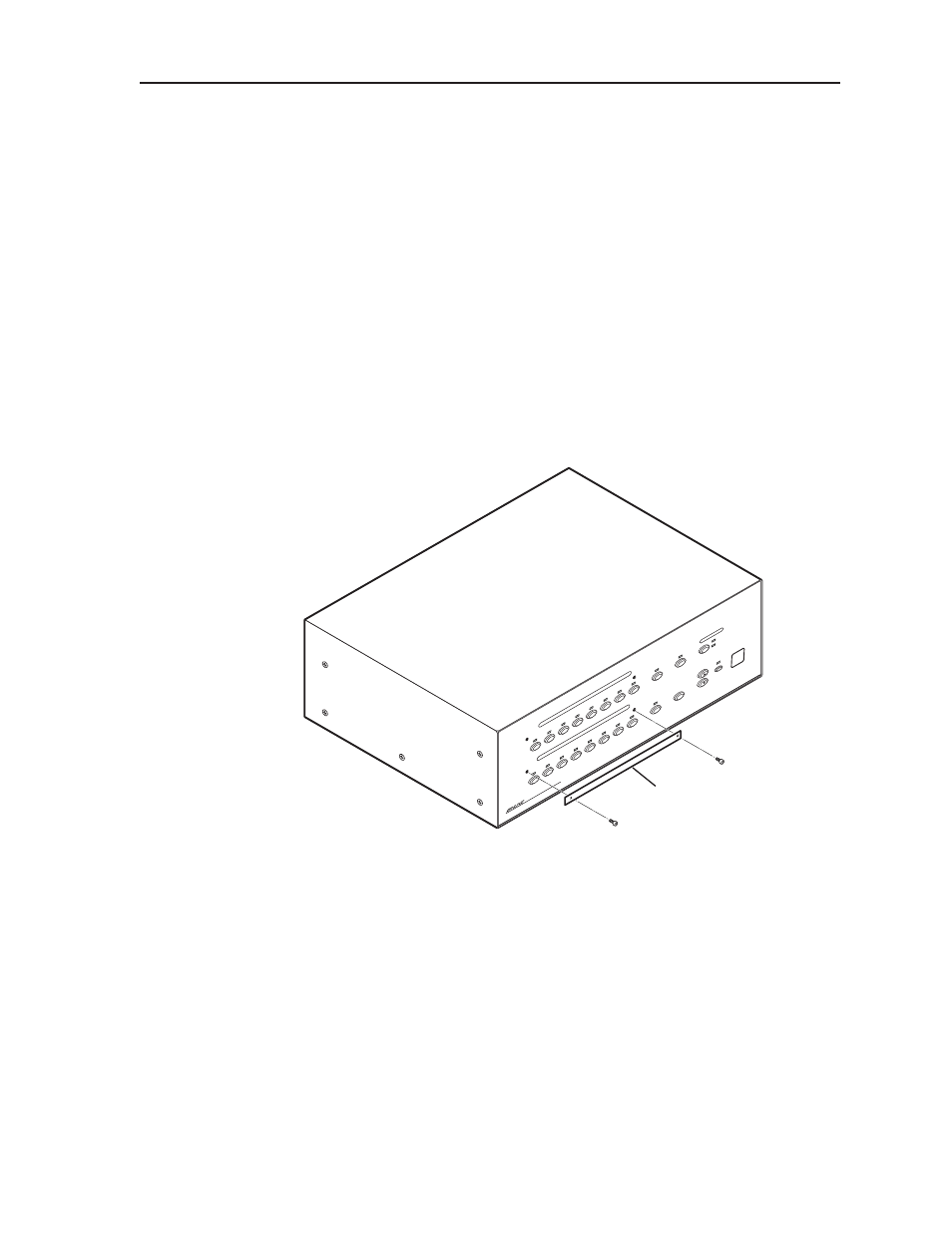

Figure B-2 — Installing a custom engraved nameplate
5
OU TP UT SE
LEC T
6
7
8
MSG Series Matrix Switcher
1
2
3
4
1
2
3
4
5
INP UT S ELECT
6
7
8
CA NC EL
TAK E
BLA NK
PRE SET VO LU ME
MUT E
AU DIO VID EO LEVEL SELE
CT
Engraved Nameplate
