MSG Matrix Switchers • Remote Control
CH VOL ENTER MENU
BLANK MUTE
FREEZE
INPUT RECALL
ENTER
ENT PIP
AUDIO
1 2 3
4 5
8 9 7
0
6
S
MATRIX SWITCHER VIDEO SCALER
+
–
+
–
MENU OK
MATRIX
Matrix Button
Press this button first
to set the CTL120-2
to control the MSG0804 or
MSG0808 matrix switchers
Numeric Buttons
Press to select desired
output, then to select
desired input
Press the Enter button to
confirm the configuration
Volume Buttons
Press (+) to increase volume,
or (-) to decrease volume
Mute Button
Press to mute audio
Enter Button
Press to make menu
selection, or to execute
a new setting when using
on-screen commands
Important!
Press this button first!
"0" Button
Press to blank the
currently selected input
CTL120-2 IR Remote Control
The CTL120-2 IR Remote Control sends infrared commands to the built-in infrared
receiver in the MSG switchers to control various switcher functions. The
illustration below shows the location and function of each button on the Remote
Control unit that can be used to control the MSG matrix switchers.
Initially, press the Matrix button on the Remote Control unit to change it to matrix
switcher mode.
To switch to a new input/output configuration using the CTL120-2 Remote
Control:
1. Press the button on the remote control unit that corresponds to the desired
output select button.
2. Press the button on the remote control unit that corresponds to the desired
input that you want to connect to the output.
3. Press the Enter button to confirm the configuration.

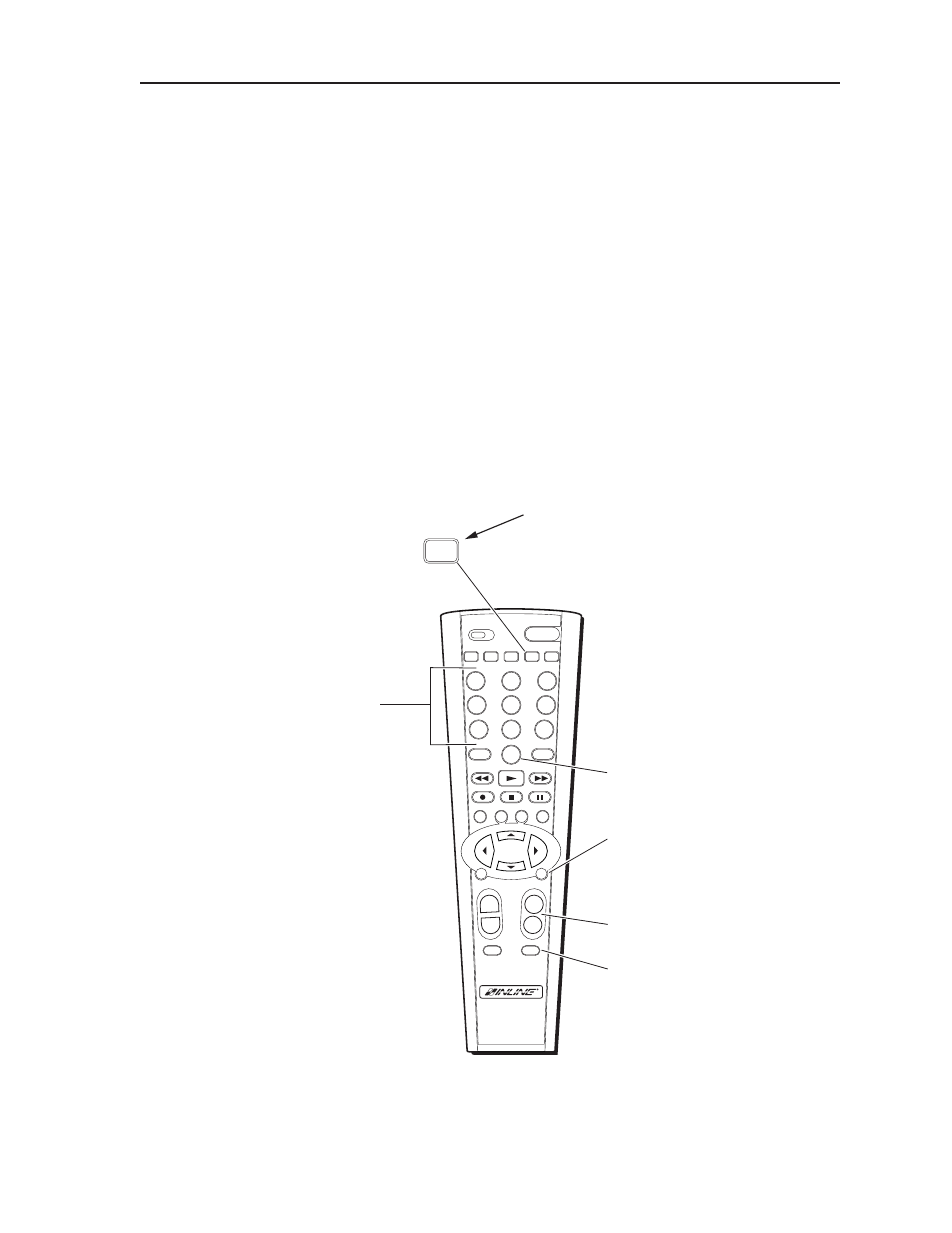

Figure 5-3 — CTL120-2 Infrared Remote Control
5-11
