Installation
MSG Matrix Switchers • Installation
Mounting the Switcher
The MSG0804 and MSG0808 are housed in 3U high, 17” wide metal enclosures.
The appropriate rack mount kit (#IN9084B) is included with the switchers for
installing in a standard 19” rack. The switchers may also be placed on a table or
desk top.
Tabletop use
The MSG Matrix Switchers come with rack mounting brackets and rubber feet. For
tabletop use, attach a self-adhesive rubber foot to each corner of the bottom of the
unit. If you intend to mount the switcher in a rack, do not install the rubber feet.
Rack mounting
Rack mount the switcher as follows:
1 . Attach the rack mounting brackets to the switcher with the eight
provided #8 machine screws, as shown in figure 2-1.
2 . Insert the switcher into the rack, align the holes in the mounting bracket
with those of the rack.
3 . Secure the switcher to the rack using the supplied machine screws.

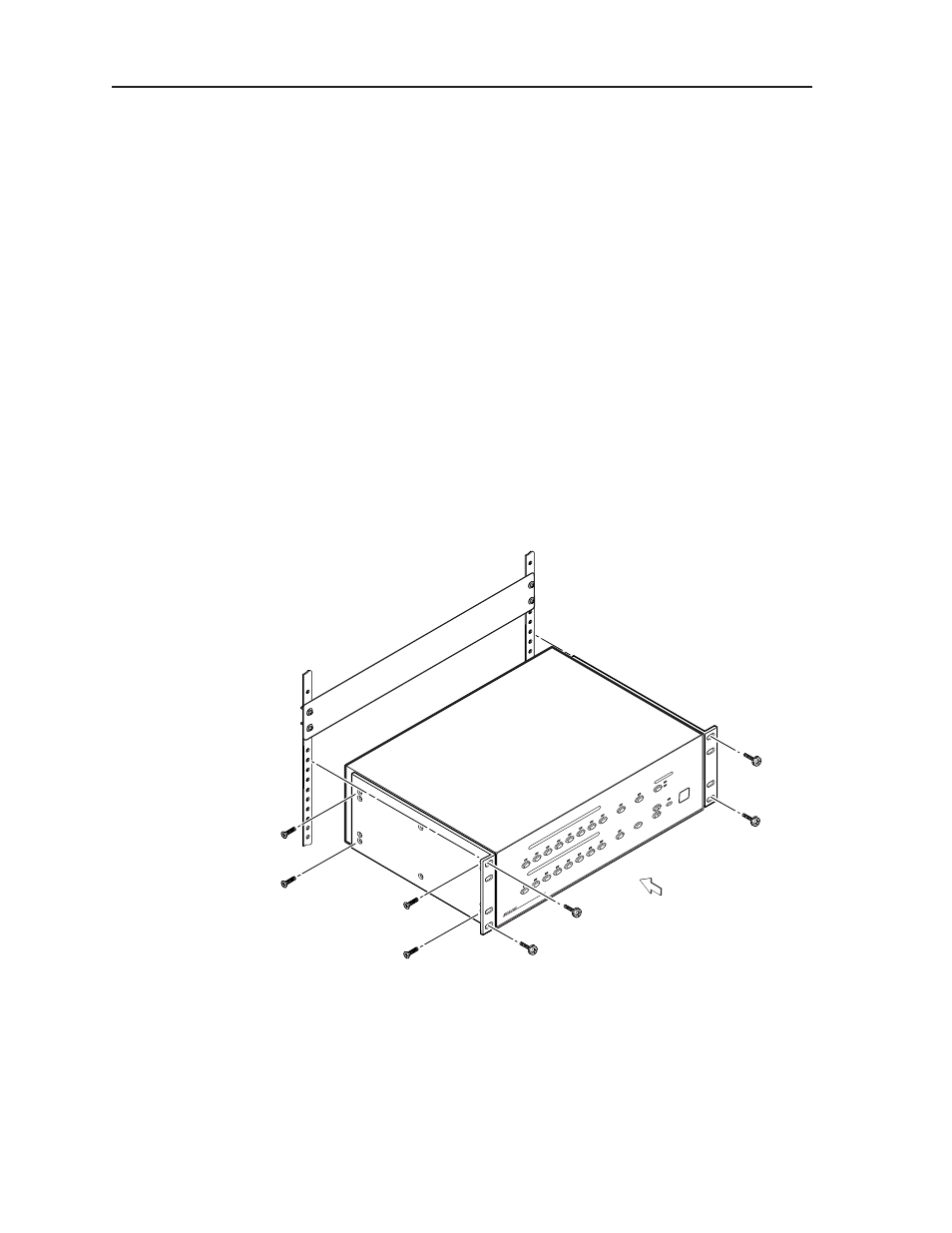

Figure 2-1 — Rack mounting the MSG0808
2-2
