MSG Matrix Switchers • Installation 2-5
Connecting the MSG0804 and MSG0808
The MSG Matrix Switchers can be connected to as many as 8 input devices
simultaneously and output up to four (MSG0804) or eight (MSG0808)
simultaneously. Follow the steps below and see the installation example in
figure 2-4.
1 If the MSG Matrix Switcher is to be mounted, see Mounting the Switcher,
earlier in this chapter.
2 Turn off power to the switcher and all other devices that will be connected.
3 Using the BNC input connectors, attach up to eight RGBHV video input
devices to the switcher.
4 Connect up to four output devices to the MSG0804, or eight output devices to
the MSG0808 using the output BNC connectors.
5 For stereo audio input, connect up to eight audio sources to the switcher
using 5 mm, 5-pole captive screw connectors. See the following Audio input
and output section. Connect audio output to the switcher using 5 mm, 5-pole
captive screw connectors.

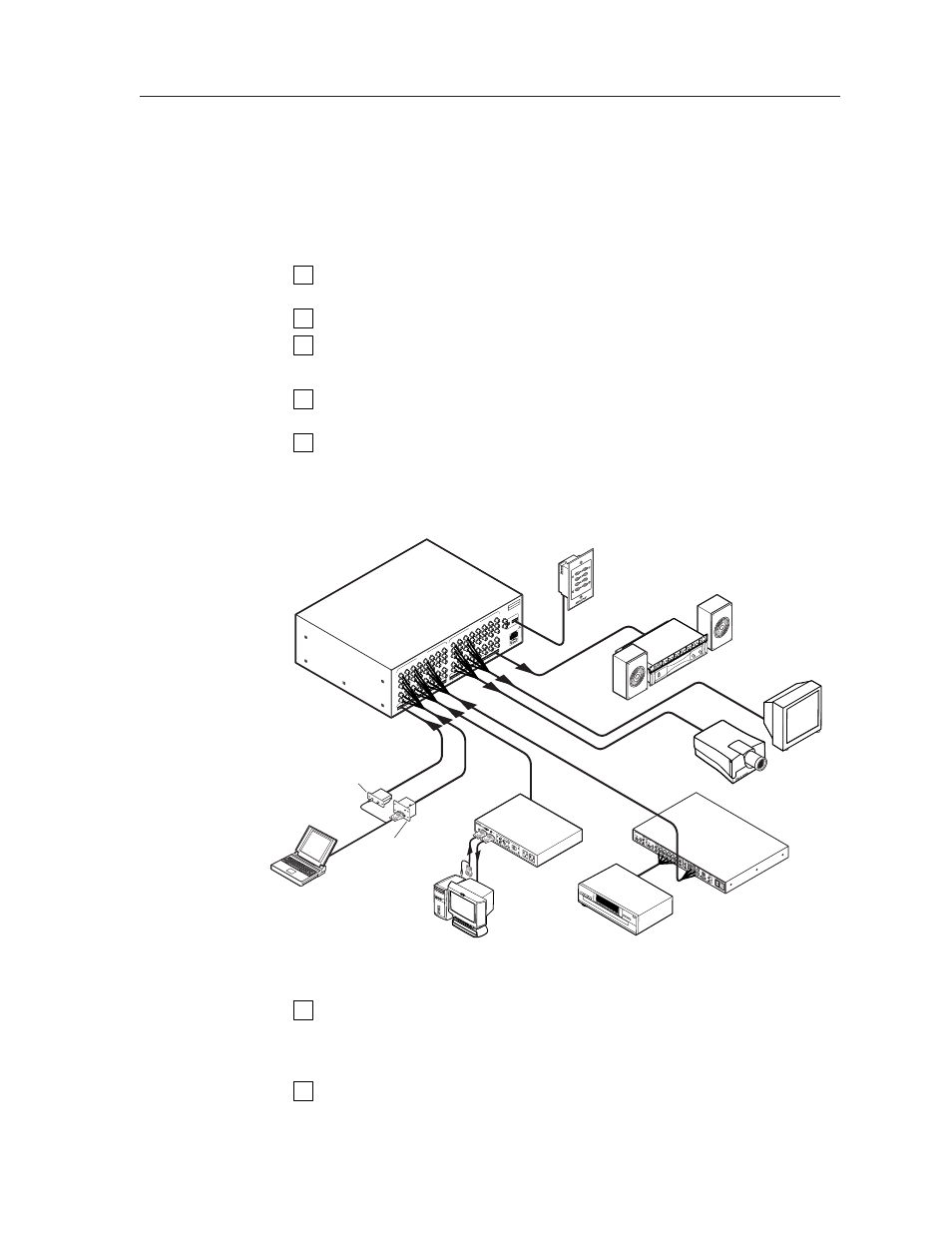

Figure 2-4— MSG0808 installation example
6 If the switcher is to be connected to a computer or host controller for remote
control, connect the host’s RS-232 cable to the 5-pole captive screw serial port
of the switcher. For an RS-232/RS-422/RS-485 pinout table and dip switch
settings, see the related information on page 2-4.
7
Power up the input and output devices, then connect power to the
switcher.
V
H
G
B
R
3 2 1
1
2
3 4
5 6
7 8
1 2
3
4 5
6 7
8
2
1
8
7
5 4
6
3
VID EO IN PU TS
VID EO O UT PU TS
1 2
3
4 5
6 7
8
R
G
B
H
V
AU DIO INPU TS
AU DIO O UT PU TS
L R
GEN LOC K
RS 42 2/R S4 85 SERIAL PORT
GND TX+ RX- TX- RX+
IN
OU T
90-260VAC; 0.5A; 47-63HZ
MSG0 808HR- MSG080 8-
RS2 32
L R L R L R L R L R L R L R L R
L R L R L R L R L R L R L R
DAV101CM VG A L ine Dr iver Vid eo I npu t Pow er
SH AR P
Vid eo / Au dio Inp ut Loc al M onit or O utp ut
MA X. P OW ER : 40 0 W MA X. P OW ER : 40 0 W
Hor izo nta l Pos itio n Mo nito r Em ula tio n
Pow er
DA S1 01C M A udio Bu ffer
Extron
MSG0808HR
Matrix Switcher
Monitor
Projector
Sound
System
Extron
CTL208
Control Module
PC
DVD
Extron
CIA116
Interface
Extron
DAS101CM
Audio Buffer
Extron
DAV101CM-3
Line Driver Extron
IN1404
Video Scaler
Laptop
