Operation

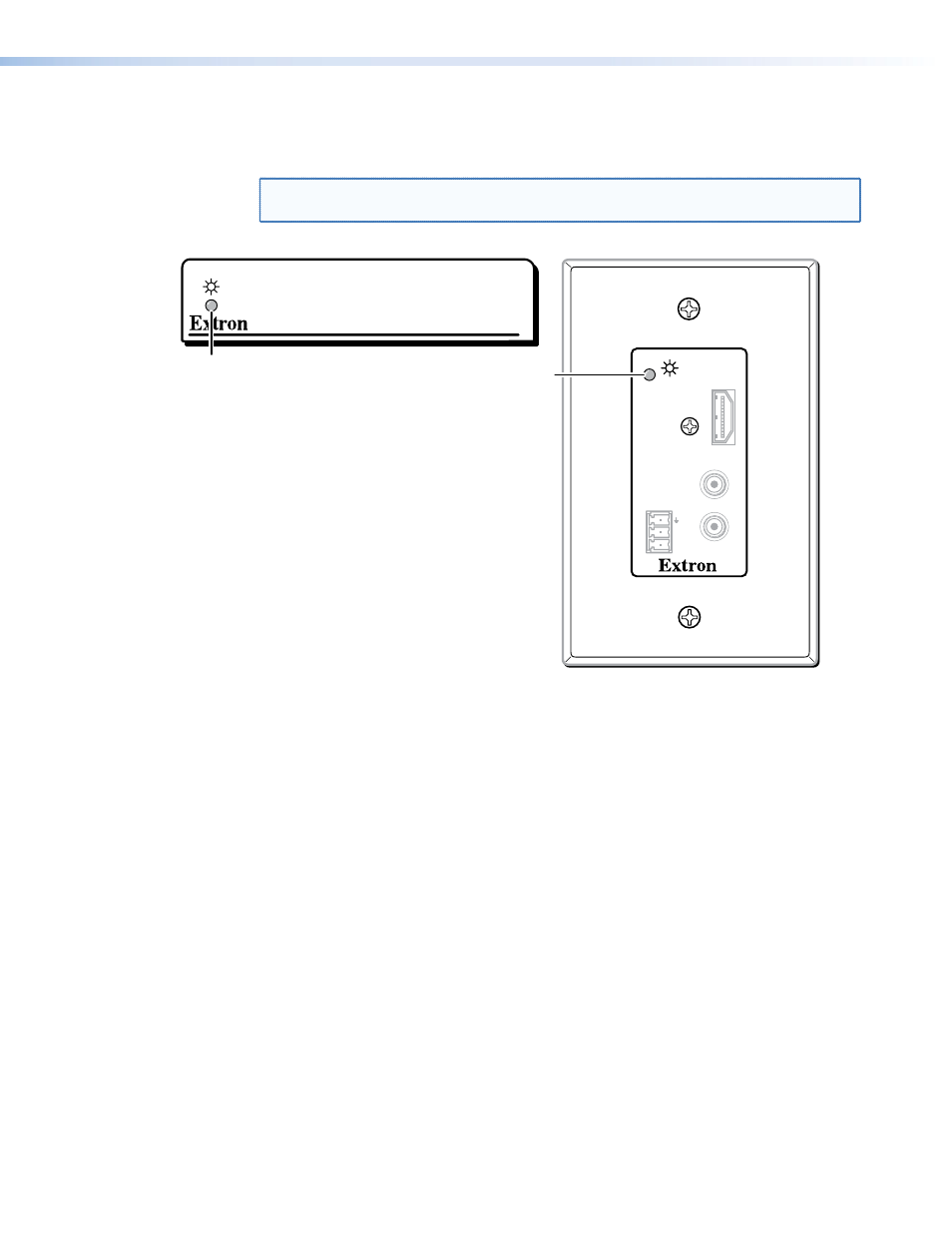

Figure 27 shows the power indicator on the non-Decora and Decora models.
NOTE: Two units are shown. All transmitter and receiver models have power indicators
in the locations shown.
HDMI 201
INPUT
Rx
Tx
RS-232
PASS THRU
AUDIO-R
HDMI
AUDIO-L
Power
HDMI 201 Tx and HDMI 201 Rx Front Panel HDMI 201 A D Tx and HDMI 201 A D Rx Front Panel
Power
Figure 27. Front Panel Indicators
Transmitter Power Indicator
Power LED —
HDMI 201 Tx (non-Decora) — This front panel LED lights green to indicate that the
unit is receiving power:
HDMI 201 A D Tx (Decora) — This two-color front panel LED lights to indicate signal
and power status as follows:
Amber — The unit is receiving power but not an HDMI input.
Green — The unit is receiving power and a signal is present on the HDMI input.
Receiver Power Indicator
Power LED —
HDMI 201 Rx (non-Decora) — This front panel LED lights green to indicate that the
unit is receiving power:
HDMI 201 A D Rx (Decora) — This two-color front panel LED lights to indicate signal
and power status as follows:
Amber — The unit is receiving power but not a TP input.
Green — The unit is receiving power and a signal is present on the TP input.
HDMI 201 • Installation and Operation 26
