Receiver Connections
The rack-mountable receiver is in quarter rack width enclosure. The wall-mountable
receiver is in an enclosure that can be mounted in UL standard wall boxes with
Decora-style face plates.

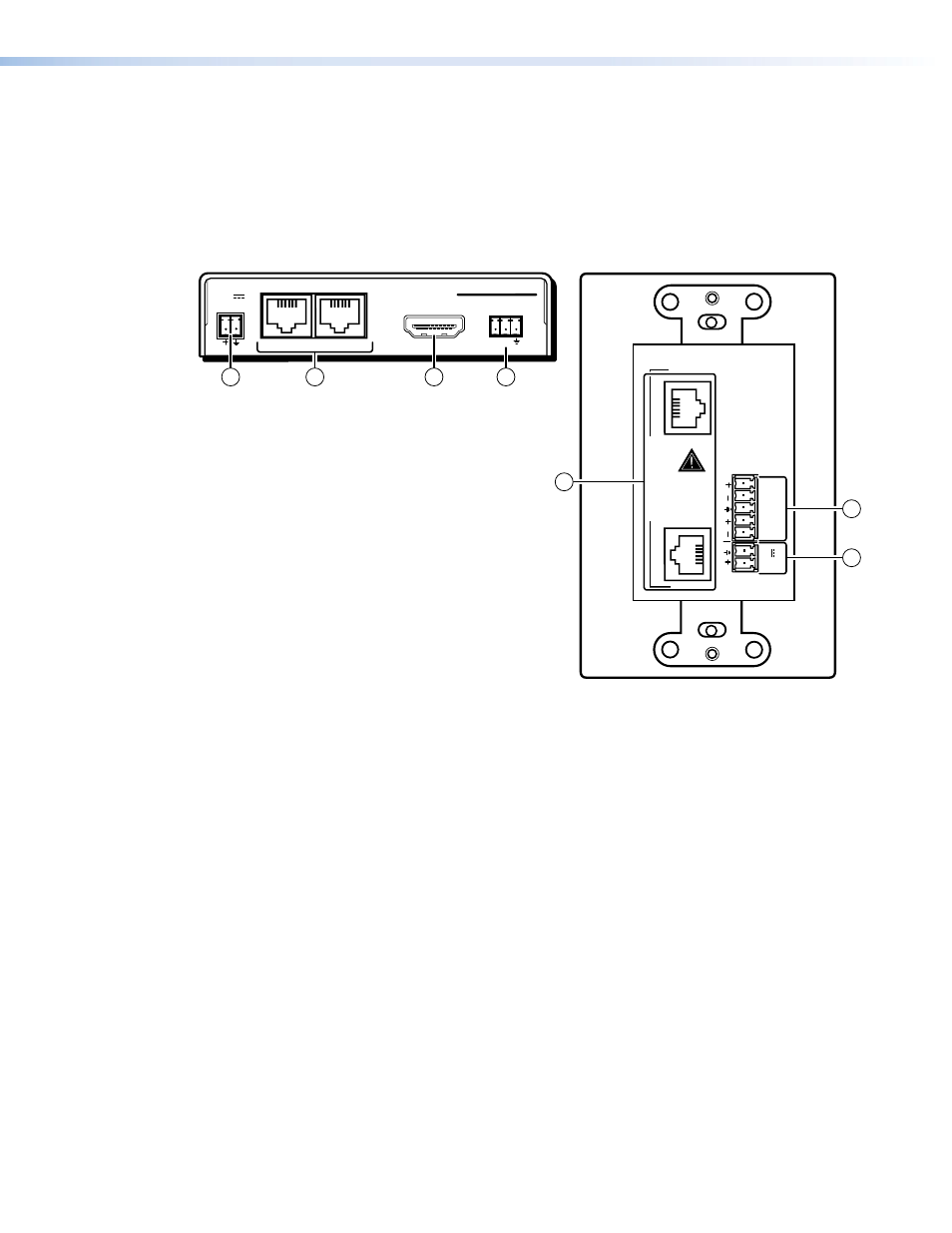

Figure 17 shows the rear panel of both HDMI 201 Rx models. Figure 18, on the next
page, shows the front panel of the HDMI 201 A D Rx (Decora) receiver.
HDMI 201 Rx Rear Panel
HDMI 201 A D Rx Rear Panel
POWER
12V
0.4A MAX
1
2
HDMI OUTPUT
RS-232
PASS THRU
Tx Rx
HDMI 201 Rx
PO
WER
12V
0.4A MAX
DO NOT
CONNECT
TO LAN
1
2
I
N
P
U
T
S
HDMI 201 A D Rx
L
A
UDIO
INPUT
R
7
9
10
8
7
11
8
Figure 17.
HDMI 201 Rx Rear Panel Connectors
g
DC power input connector — Plug the included external 12 VDC power supply
into either this 2-pole connector or the power input connector on the transmitter
(
HDMI 201 • Installation and Operation
19
