Final installation, Tx rx – Extron Electronics HDMI 201 User Manual
Page 19
Final installation
After testing and making any adjustments, do the following:
1.
At the power outlet, unplug the power supply.
NOTE: One power supply can power both the transmitter and the receiver, so only
one unit needs a power supply.
2.
Mount the transmitter or receiver into the wall box, and attach the supplied Decora
faceplate to the unit, as shown in figure 12.
Wall opening
is flush with
edge of box.
Wall Box
Decora
Faceplate
Extron
HDMI 201 A D
INPUT
Tx
Rx
RS-232
PASS
THR
U
AUD
IO-
R
HDM
I
AUD
IO-
L

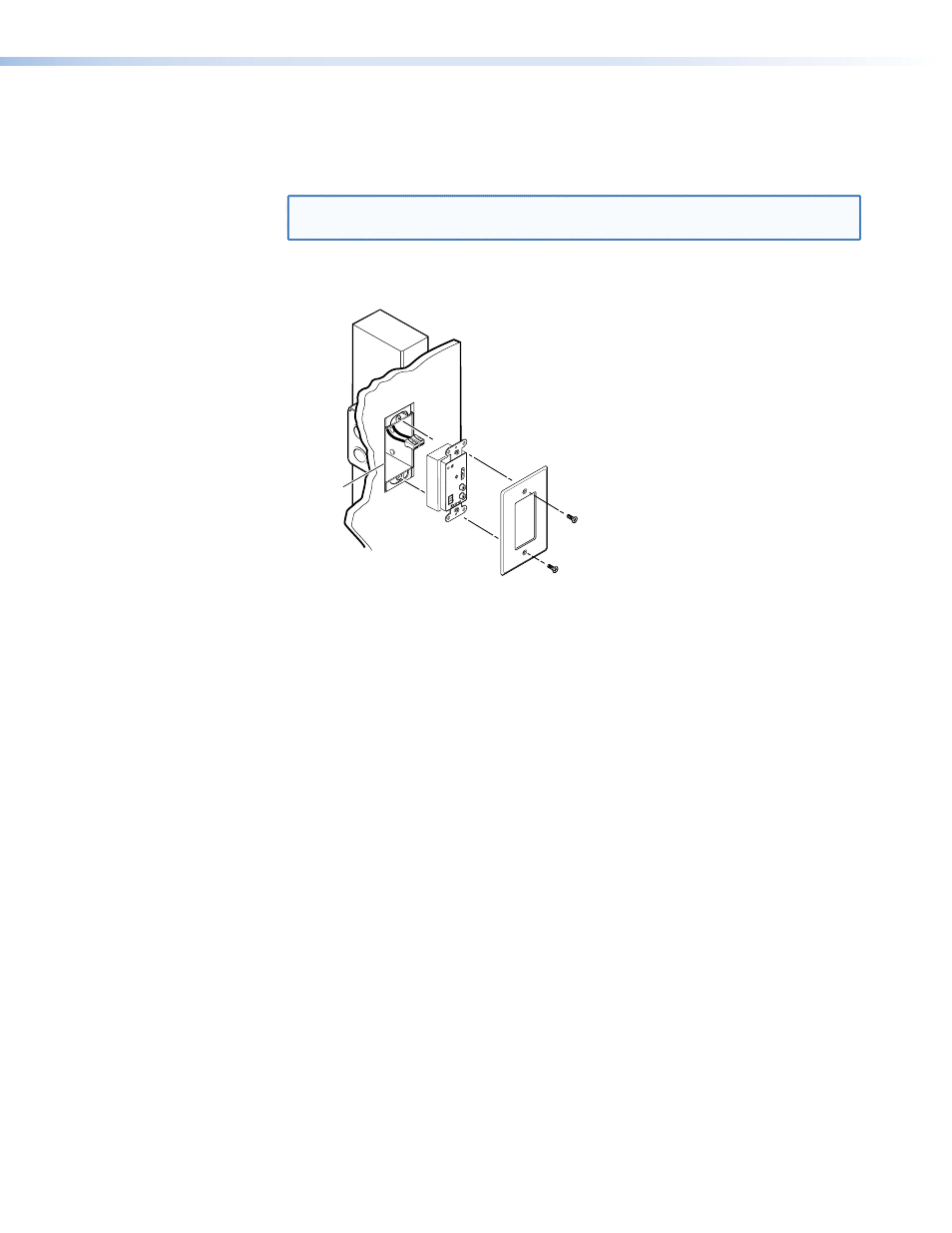

Figure 12.
Mounting the Transmitter or Receiver
3.
At the power outlet, reconnect the power supply. This powers up both units.
HDMI 201 • Installation and Operation
15
