RJ-45 to RJ-11 Conversion Kit • HSA 400, 402, 452 Installation RJ-45 to RJ-11 Conversion Kit • HSA 400, 402, 452 Installation
HSA 400, 402, 452 Installation, cont’d
Icon Labels

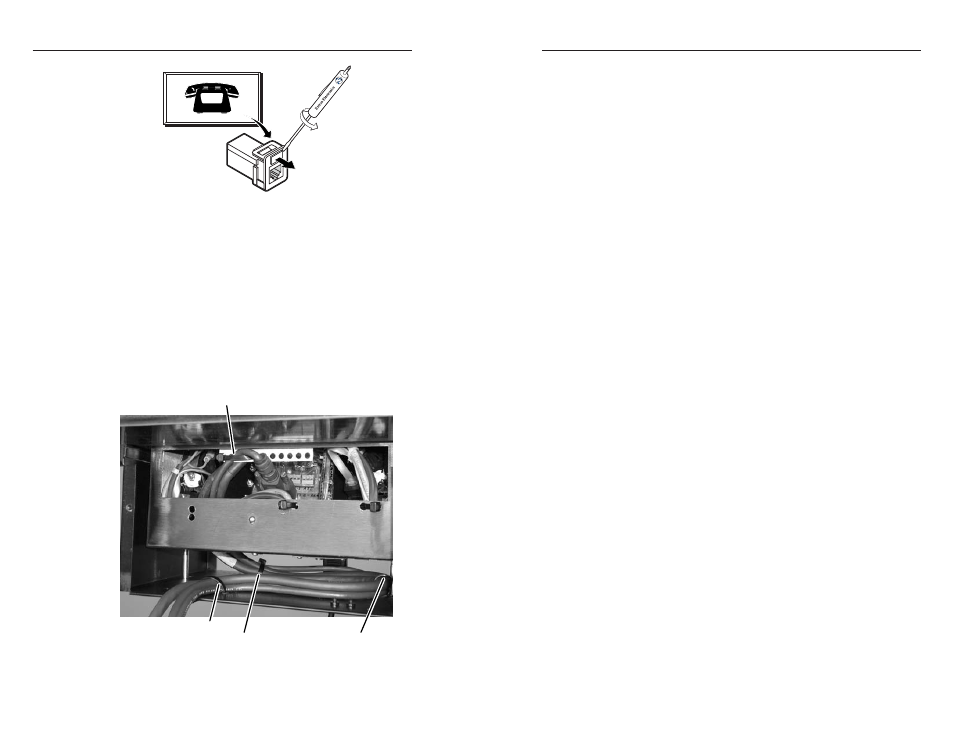

Figure 1-8 — Changing the connector icon
Routing the AAP Cables
1 . Open the top panel to extend the AAP cables to their
maximum pull.
2 . Experiment with AAP cable positioning to ensure that the
cables do not rub against the edges of the AAP cable hole
and to ensure that the cable pull does not restrict the
movement of the top panel. Figure 1-9 shows the cables
routed to the side, which proved effective in tests at
Extron.
3. Use tie wraps to secure the AAP cables to the tie-down
holes in the clamshell and enclosure.
Secure AAP cables here
Secure AAP cables here Secure AAP cables here
Secure AAP cables here
Figure 1-9 — HSA 402 AAP cable routing
1-8 1-9
