RJ-45 to RJ-11 Conversion Kit • HSA 400, 402, 452 Installation

HSA 400, 402, 452 Installation, cont’d

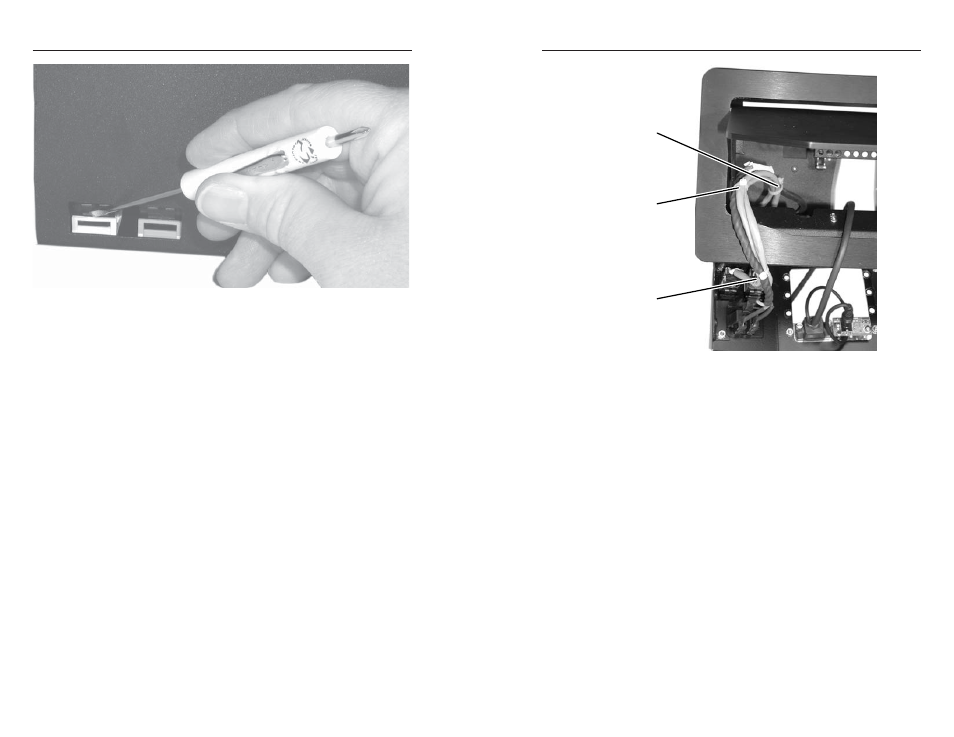

Figure 1-6 — Releasing the bezel plug-in detent

Reach your hand through the access hole in the rear of the
enclosure and snap the replacement RJ-11 connector onto
the interior of the lower enclosure bezel plug-in.

Reconnect the interior AC power cable.

Use three tie wraps to bundle the power, CAT 6 and
telephone cables (figure 1-7). Use the impressions on the
retained CAT 6 cable of the tie wraps that you cut in
Removing the Front Panel Connector, step 1 as a guide for tie
wrapping the bundle.

Replacing the Front Panel Connector and Reas-
sembling the HSA

Loosely place the front panel in the surface mount
enclosure. Do not secure it in place at this time.

Feed the cables connected to the AAPs in the HSA through
the hole in the table and connect them to the devices that
you disconnected them from in Removing the HSA from the
Table, step 3 on page 1-2.

Carefully lower the HSA enclosure into the table opening.
From the underside, bolt the clamshell to the enclosure
with the two bolts removed in Removing the HSA from the
Table, step 4 on page 1-3.

Connect the IEC power cord, the RJ-11, and RJ-45 cables to
the connectors on the underside of the surface mount
enclosure.

Tie Wrap

Figure 1-7 — Bundling interior cables

Open and close the top panel while you experiment with
the routing of the cable bundle. Find a routing that allows
the top panel to open and close smoothly. If desired, use
tie wraps to secure the bundled cables to the tie-down
holes in the lower enclosure or on the mounting frame.

Secure the front panel in place with the Allen screws
removed in Removing the Front Panel Connector, step 3 on
page 1-4.

If desired, on the front panel, replace the connector icon by
prying the old icon off of the bezel plug-in (figure 1-8)
with a tweeker and snapping a new icon in place.

1-7

1-6
