RJ-45 to RJ-11 Conversion Kit • HSA 800, 802 Installation

RJ-45 to RJ-11 Conversion Kit • HSA 800, 802 Installation

HSA 800, 802 Installation

2-3

Removing the HSA from the Table

Ensure that AC power is disconnected before
servicing the HSA unit.

1

.

On the underside of the clamshell and in the enclosure, cut
the tie wraps that route the AAP cables out of the way.

2

.

Disconnect the IEC power cord and RJ-45 connectors from
the underside of the surface mount enclosure.

3

.

Disconnect any cables connected to the existing AAPs at
the ends of the cables away from the HSAs.

The edges of the top panel are sharp. Exercise care
when the HSA is removed from the table to prevent
personal injury.

CAUTION

The flanged edges of the top of the surface enclosure
are bevelled to an ultra-fine thickness of less than
0.04 (4/100)” (approximately 1 mm). These edges
are soft and can be easily nicked or bent. Exercise
caution when handling and mounting the
enclosure. Mishandling can damage the appearance
of the enclosure.

The surfaces of the HSA enclosure have screws and other
protruding hardware that could damage fine furniture.
Do not rest the enclosure on unprotected furniture.

4

.

On the underside of the table, remove the two bolts that
secure the clamshell to the surface mount enclosure
(figure 2-2). Lift the enclosure out of the table. Ensure that
the cables connected to the AAPs do not snag or pull on
any protrusions.

Introduction

The Extron HSA 800 and HSA 802 ship with Category (CAT) 6
cables terminated with RJ-45 connectors between the front
panel(s) and lower enclosure bezel plug-ins. Some users prefer
a telephone (RJ-11) connector. This conversion kit consists of a
length of telephone cable terminated with RJ-11 connectors to
replace one of the CAT 6/RJ-45 cables.

Figure 2-1 shows the location of the bezel plug-ins on the
underside and front panels of all versions of the HSA 802.
When replacing the CAT 6 cable, match front panel connector
A1 with underside connector A1, match A2 with A2, and so
forth.

Connectors B1 and B2 are present on the HSA 802 only.

A1

A2

A1

A2

B1

B2

USA and IEC Versions

EU, UK, and Australian Versions

B1

B2

A1

A2

A1

A2

B1

B2

B1

B2

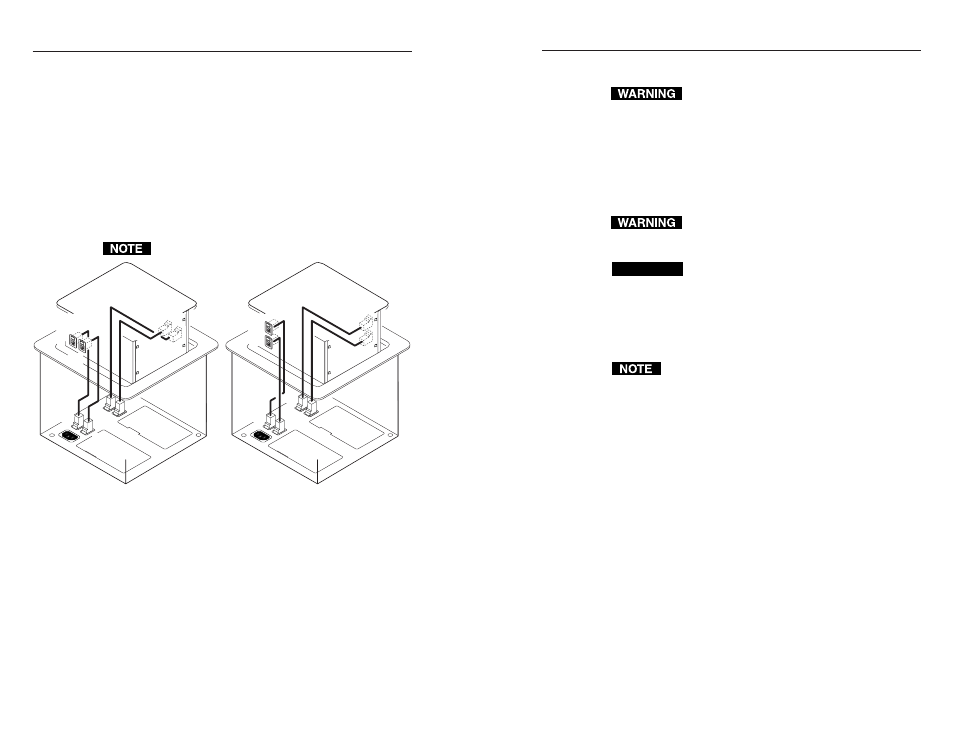

Figure 2-1 — Underside and front panel bezel plug-
ins
