the “Control” key when following the instructions below, and substitute standard Mac key
combinations where applicable – see the Dante Controller menu for details.

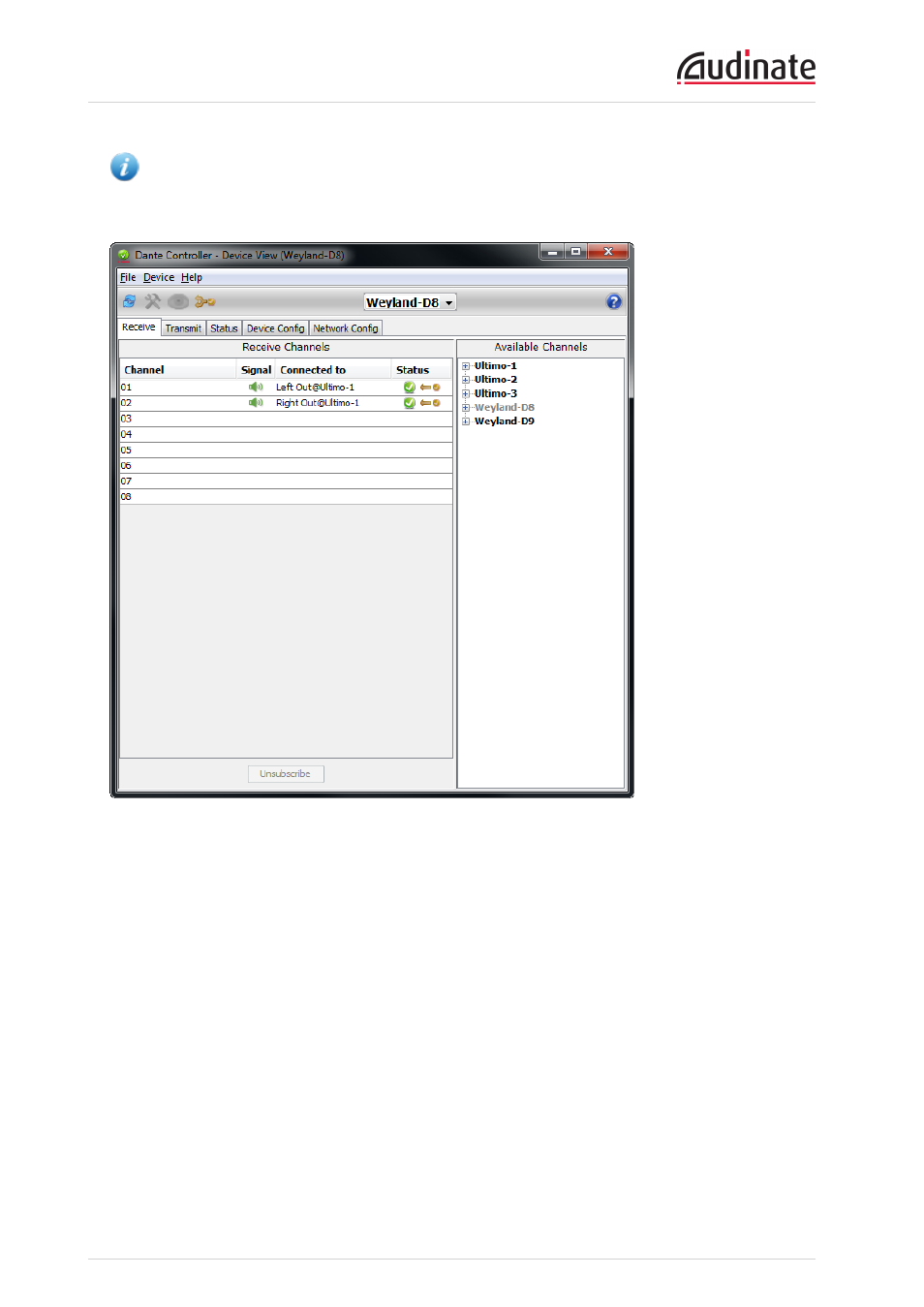

The label of the device being viewed is displayed in the middle of the toolbar. In the screenshot above,
Weyland-D8 is the device being displayed in the drop-down list box.
The device viewed can be changed by selecting another device from the drop-down list.
Multiple Device View windows may be opened from the Network View, so that several devices can be
examined simultaneously.
The Device View has up to five sub-views allowing the user to see different information relating to a
specific Dante device:
n
Receive: display and configure device’s receive (Rx) channels
n
Transmit: display and configure device’s transmit (Tx) channels including multicast
n
Status: device software, clock and network status information
n
Config: rename device and set other attributes as relevant to device type
n
Baseboard: only available when the Dante device is mounted on a Dante PDK audio baseboard
(NOTE: the device must be in SPI Master mode)
