Cable Cubby 300/600/800 • Reference Information 20
Top Plate Dimensions
There are two preferred and recommended methods for cutting the table: using the
appropriate metal routing template (see figure 19 below and Installation on page 4), and
using a router or a hole saw (Cable Cubby 300C only).
HSA 200
USER ACCESS
HSA 200
CABLE CUBBY 300
CABLE CUBBY 300
USER ACCESS

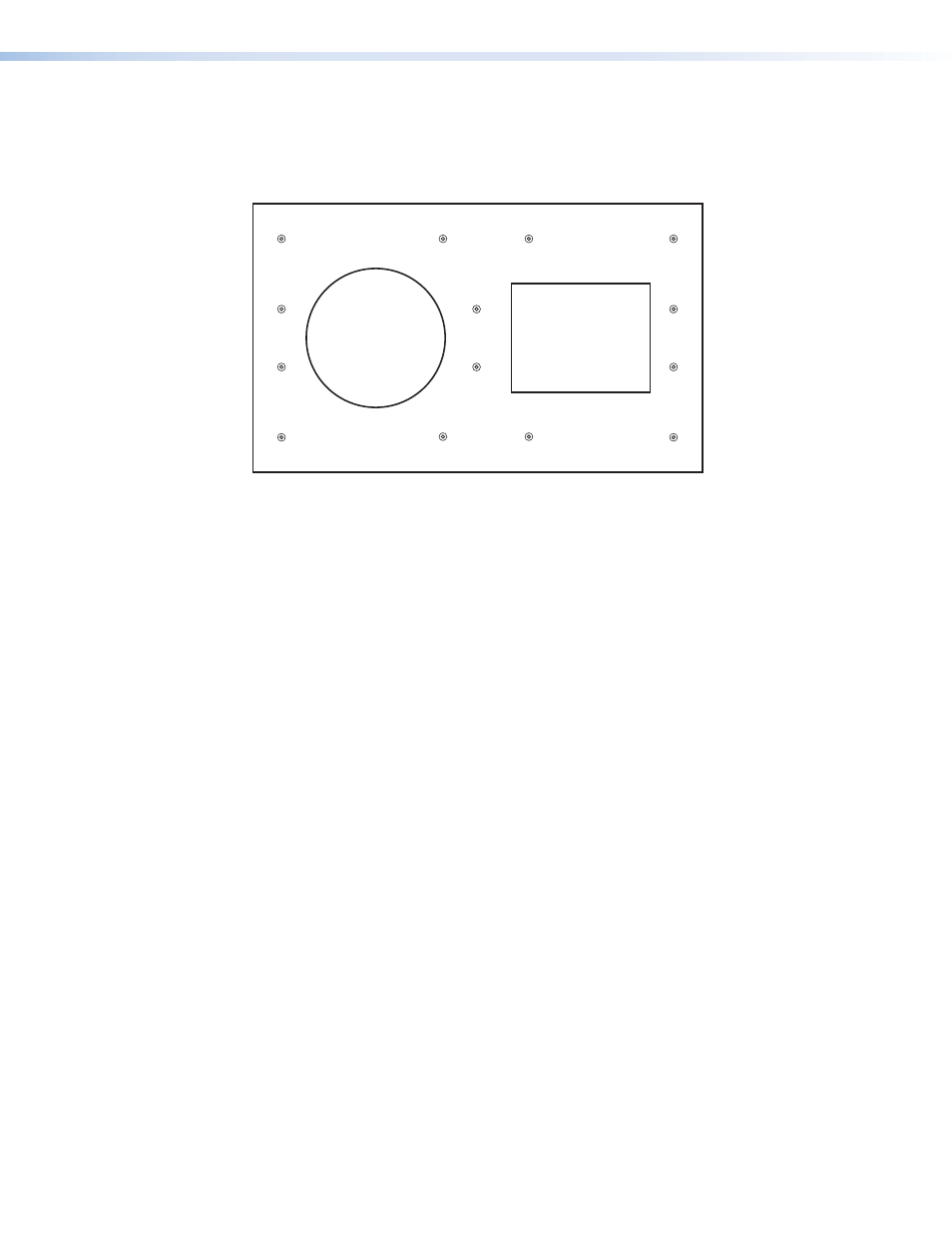

Figure 17. CC 300S and 300C Metal Routing Template
If you choose not to use Extron metal routing templates, the cut-out templates (see
figure 18 , figure 19 , figure 20 , and figure 21 on the next page) will help you prepare the
mounting surface. The cut-out templates are not to scale and are for reference only. For
full size paper templates, visit www.extron.com or call the Extron S3 Sales and Technical
Support Hotline.
