Introduction

Overview

This guide describes the AVTrac

®

components and provides instructions for installation.

ML

S 4

06M

A

Me

dia

Lin

k S

wit

che

r

CO

NT

RO

L

PEAK
CL

IP

SIG

NA

L

INPUT SELECT

1

2

3

4

5

6

Extron AVTrac

®

Floor Mount Raceway System

for A/V Connectivity

Extron

Raceway

Transition

Adapter

Wiremold

4000

Series

LAN

Projector

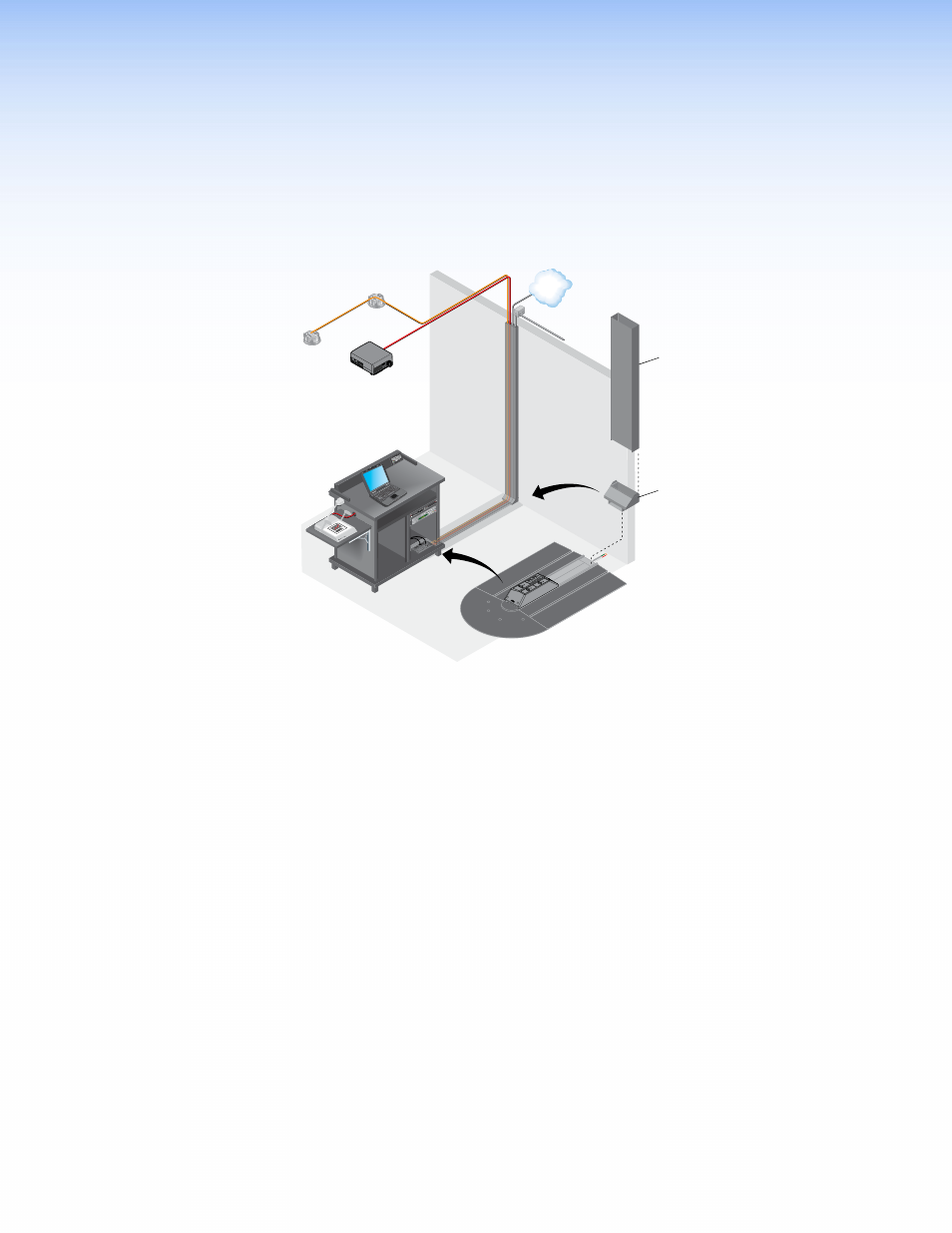

AVTrac Floor System

Low-profile Raceway System

AVTrac is a low-profile raceway system designed
to safely and discretely run power, data, and A/V
cables from a wall to a table, podium, or other
furniture. The raceway system mounts directly
onto the concrete floor and underneath the
carpet.

AAP Compatible Connectivity Box

The modular enclosure supports up to ten single-
space Extron

®

Architectural Adapter Plates (AAPs)

with hundreds of connection options creating a
fully customizable connectivity solution.

Models with the AC module accommodate
up to seven single-space AAPs. (AAPs are sold
separately.)

Multiple Accessories

The AVTrac system has a wide variety of
accessories that provide adaptability and versatility
to handle most installation requirements.

ADA Compliant

The slope and rise of the side and end ramps
comply with the Americans with Disabilities
Act Standards for Accessible Design (Title III,
Regulation 28 CFR Part 36: ADA Standards for
Accessible Design; Section 4.8: Ramps.)

Choice of Finishes

The AVTrac 482C accommodates commercial
grade carpet inlay 1/4 inch to 5/16 inch (0.6 to
0.8 cm) thickness in the aluminum raceway cover
track.

The AVTrac 482R accommodates the included
black rubber strip inlay as its top finish.

AVTrac • Introduction
