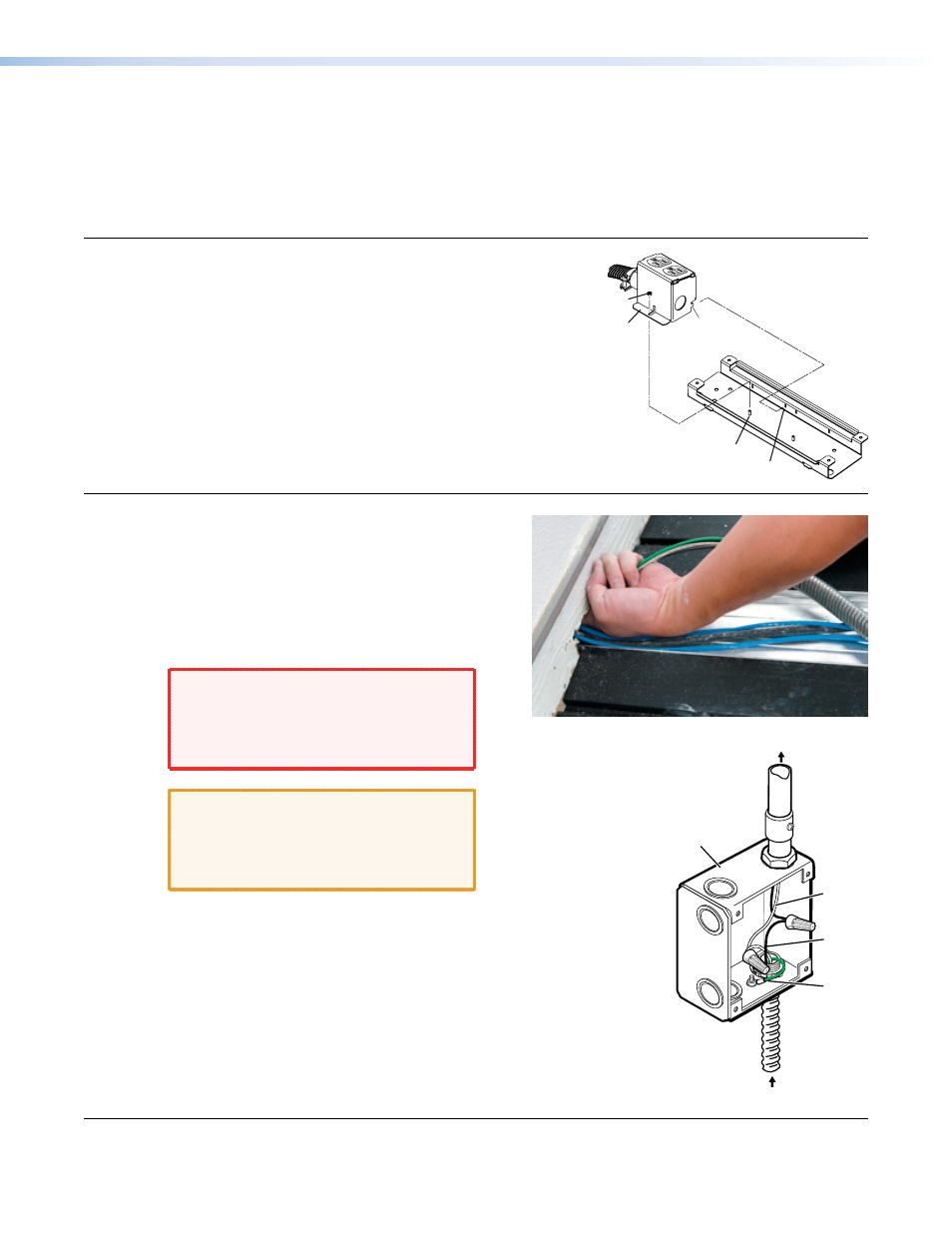

Step 3: AC Power Module

By this point, the base of the connectivity box must be securely fastened to the floor.

If your AVTrac system does not include the AC power module, ignore this section.

To attach the AC power module, follow these instructions:

1.

The AC power module must be positioned
under the triple AAP socket that is closest to
the track.

a.

Slide the power module side tabs into the
slots on the side of the connectivity box.

b.

Seat the power module on the stud in the
connectivity box.

c.

Secure the module to the stud on the
connectivity box by hand tightening the
provided 6/32 inch nut.

2.

Run the unattached end of the AC conduit
through the wall cutout and connect it to a
junction box inside the wall or ceiling.

Extron recommends the circuit be attached
to a junction box that is directly wired to the
main circuit. The AC power module does not
have a fuse and is rated at 20 A, maximum.

WARNING: Switch off all electrical power

before connecting the AC
conduit to a junction box,
and keep power off until
installation is complete.

CAUTION: All electrical installation should

be performed by qualified
personnel in accordance with
local and national electrical
codes.

Conduit

Junction Box

Green
(ground)

AC Conduit

From AVTrac AC
Power Module

To 20 Amp
Main Circuit

White
(neutral)

Black
(hot)

Slots

Studs

AC Power
Module

Tabs

6/32" Nut

AVTrac • Installation

13
