Page 16

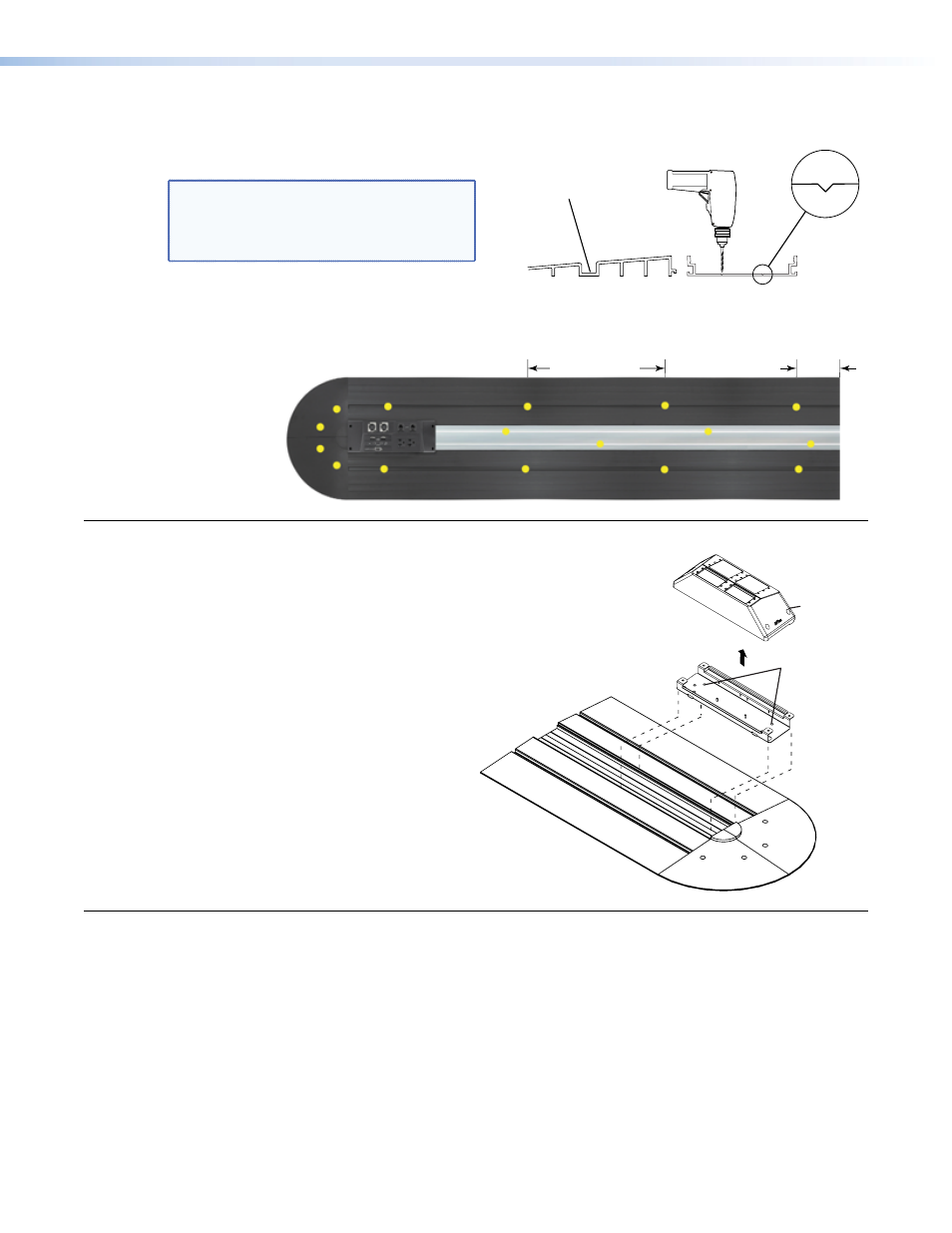

Drill mounting holes in the shallow grooves of
the base track and side ramps using a 1/4 inch
bit for drilling metal (not supplied).

NOTE: Mounting holes must be a

maximum of 3 feet (91 cm) apart
and one must be within 6 inches
(15.2 cm) of each end of the track.

To ensure that all components are securely
attached to the floor, Extron recommends that
the predrilled holes should closely follow the
pattern shown in the figure below.

Remove the cover panel from the connectivity
box.

Examine the bottom of the connectivity
box: one end has two mounting holes (one
in each corner), the other end has three
mounting holes (one in each corner and one
in the center). The end with three holes faces
toward the track.

Align the end of the box with two mounting
holes with the end of the base track. Mark
where the mounting holes in the bottom of
the box lie over the base track.

Using a 1/4 inch bit for drilling metal (not
supplied), drill at least three mounting holes in
the base track to secure the connectivity box
to the floor.

Shallow Groove
in Side Ramp
(predrill holes)

Shallow Groove
in Base Track
(predrill holes)

Side Ramp

Base Track

3 feet max.

6 inches max.

Cover

Mounting Holes

This end has
3 mounting holes

This end has
2 mounting holes

AVTrac • Installation
