Specifications
General
Power ............................................ 125 VAC, 50-60 Hz, 20 A (max.)
Mounting options
Track system (track and ramps)
Mountable onto base flooring, beneath finished carpeting
Connectivity box ...................... Mountable through the metal track, onto base flooring
Optional AAP plates/devices ..... Mountable in the two double-space and two triple-space Architectural Adapter
Plate (AAP) openings in the connectivity box
Enclosure type ................................ Track base and top: metal
Connectivity box: plastic cover, metal base
Ramps: plastic

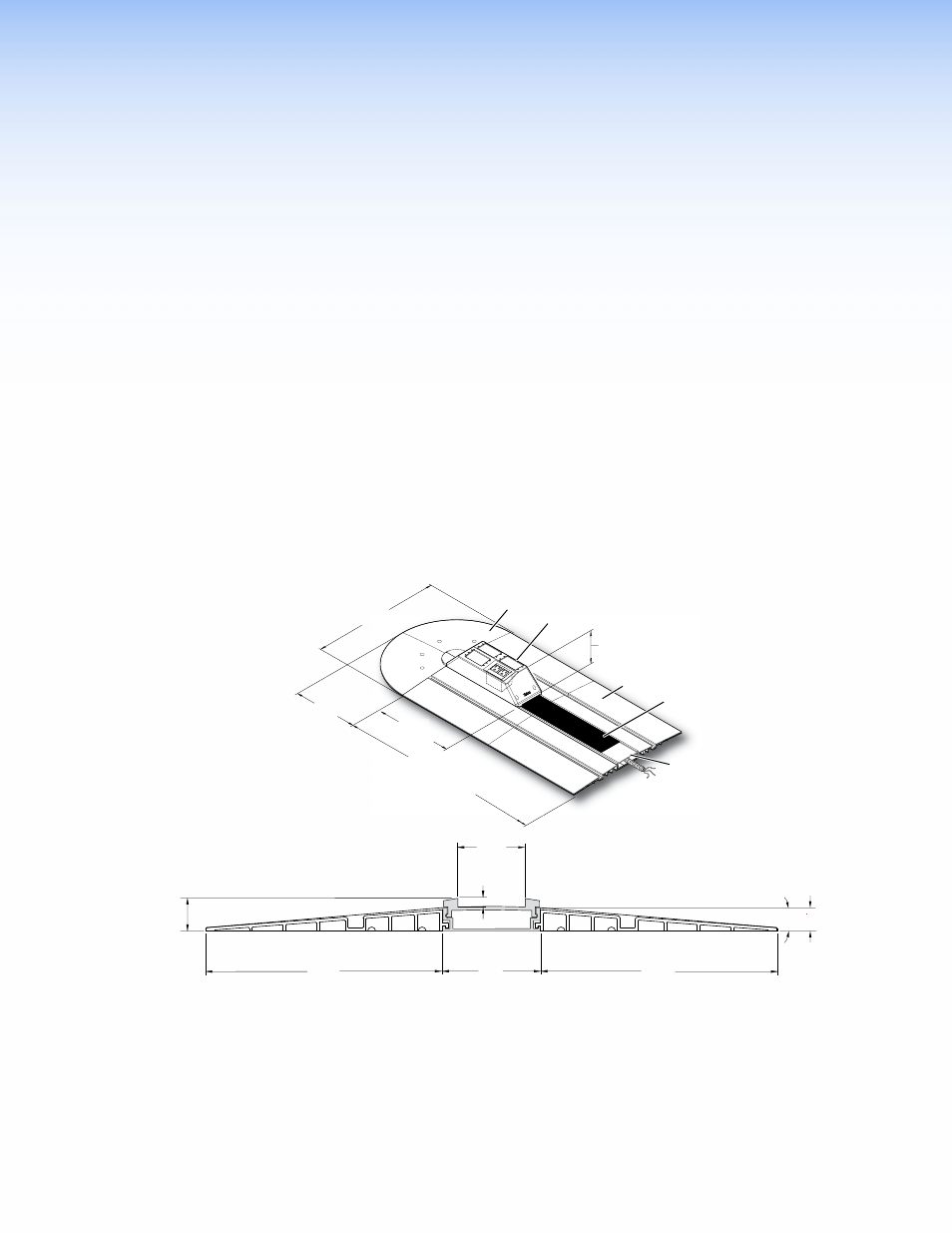

Enclosure dimensions: see diagrams below
Track system
End ramps ............................... 0.67" (1.7 cm) H x 9.36" (23.8 cm) radius, approximately 4.5° slope
Side ramps ............................... 0.67" (1.7 cm) H x 7.50" (19.0 cm) W on either side of track x [two 48.0"
(121.9 cm) sections, total 96.0" (243.8 cm)] L, approximately 4.5° slope
Track base and top ................... 1.03" H x 3.70" W x (two 48.0" sections, total: 96.0") L
(2.6 cm H x 9.4 cm W x [two 121.9 cm sections, total: 243.8 cm] L)
TOP VIEW
9.36"
(23.77 cm)
18.72"
(47.55 cm)
12.00"
(30.48 cm)
8' Total
(2.44 m)
[two 4' tracks]
AVTrac 482R
BACK VIEW
0.22"
(0.56 cm) 1.09"
(2.61 cm)
2.91"
(7.39 cm)
3.70"
(9.40 cm)
0.67" (1.70 cm) 4.5°
7.50"
(19.05 cm)
7.50"
(19.05 cm)
TOP VIEW
5 cm)
12.00"
(30.48 cm)
8' Total
(2.44 m)
[two 4' tracks]
3.55"
(9.02 cm)
Side Ramp
Connectivity (AAP) Box
End Ramp
Rubber Strip
(included with
AVTrac 482R)
Aluminum
Track
AVTrac • Specifications 18
