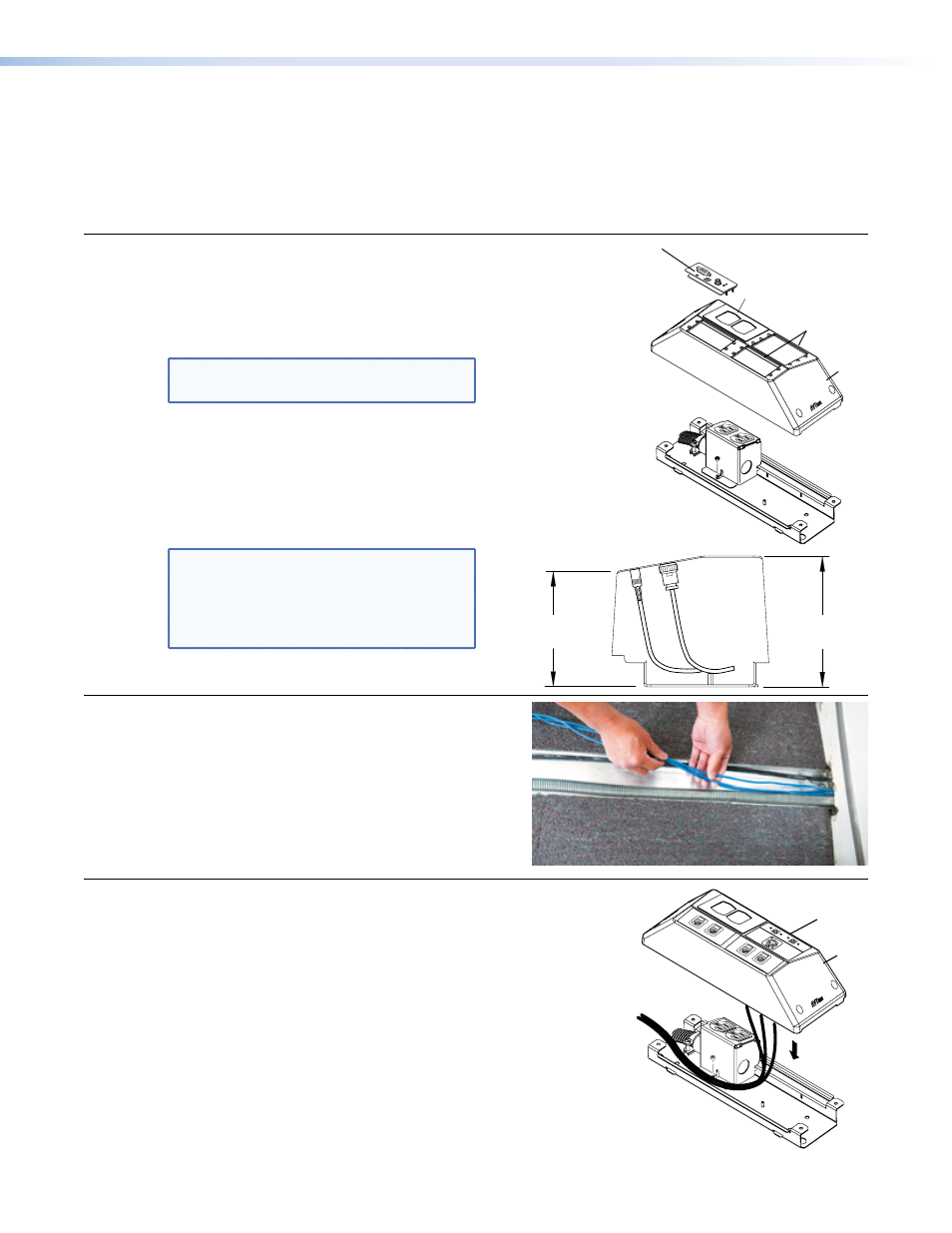

Step 4: Architectural Adapter Plates (AAPs)

At this point, the track, ramps and connectivitly box must all be securely in place. If an AC power module is
required, it must be attached to the connectivity box and connected to an AC junction box. Do not turn on
the power at this time.

To attach the Architectural Adapter Plates (AAPs), follow these instructions:

1.

Fill the remaining AAP slots in the cover of the
connectivity box with seven spaces of AAPs.

In models without the AC power module, fill
all ten spaces of AAPs.

NOTE: Extron AAPs must be purchased

separately.

NOTE: To prevent bending of cables, place

the AAP with the greatest depth
requirement (including cables) in
the AAP slot closest to the center
ridge of the connectivity box

2.

Run the cables from the wall to the
connectivity box.

Attach the cables to the AAPs as described in
the installation guide for each AAP module.

3.

Reattach the cover panel.

Cover

Openings for
AAPs

AC Outlet
Cover Plate

RGB 580xi SI AAP

COMPUTER

AUDIO

H SHIF

T

INPU

T

SELEC

T

AAP

3.55" (9.02 cm)

3.17" (8.05 cm)

Cover

AAPs

AVTrac • Installation

14
