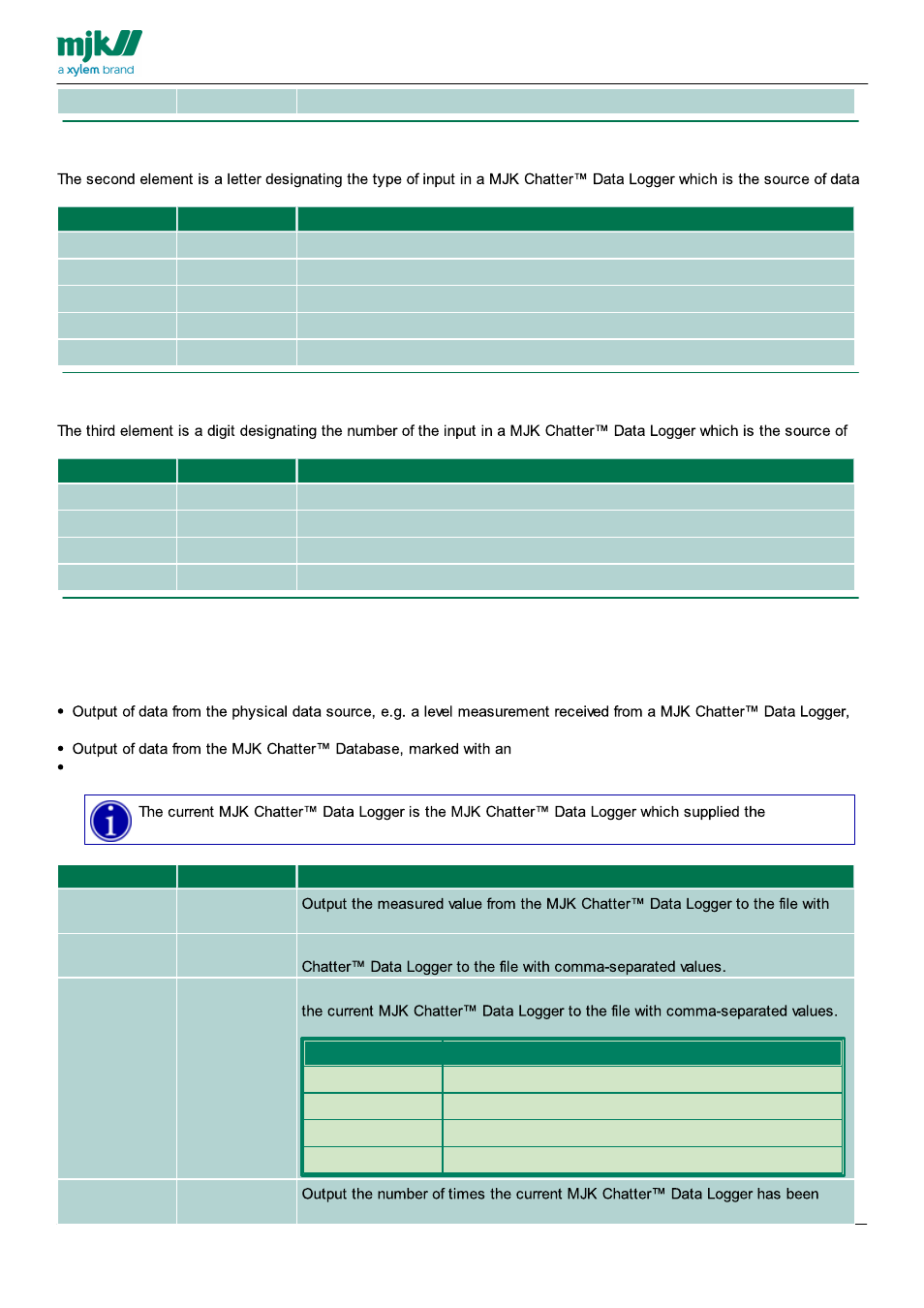

GB CHATTER NOTIFICATION CONFIGURATION 1303
17
2; Data will be treated by the STORMFLOW plug-in
Second element - input type
for this rule:
#2 Description
D; Data must come from a digital input
A; Data must come from a analog input
C; Data must come from a counter on a digital input
M; Data must come from a Modbus input
I; Data must come from an internal measurement
Third element - input number
data for this rule:
#3 Description
1; Data must come from X-input number 1
2; Data must come from X-input number 2
3; Data must come from X-input number 3
4; Data must come from X-input number 4
Fourth element - data output
The fourth element is a number designating which data, this rule will output to a recipient, typically a SCADA-system.
Data output is divided into three different groups;
marked with a Chatter in the table below.
Database in the table below.
Output of data from the STORMFLOW plug-in, marked with an Stormflow in the table below.
measurement or alarm which is processed by this rule.
#4 From Description
0;
comma-separated values.
1000; Chatter Output the battery voltage in mV from the internal battery in the current MJK
1001; Chatter Output the GSM signal strength as a value between 1 and 31 as recorded for
Value Description
1 - 14 The signal strength is marginal
15 - 19 The signal strength is is acceptable
20 - 24 The signal strength is is good
25 - 31 The signal strength is is excellent
1002; Chatter
reset to the file with comma-separated values.
