7

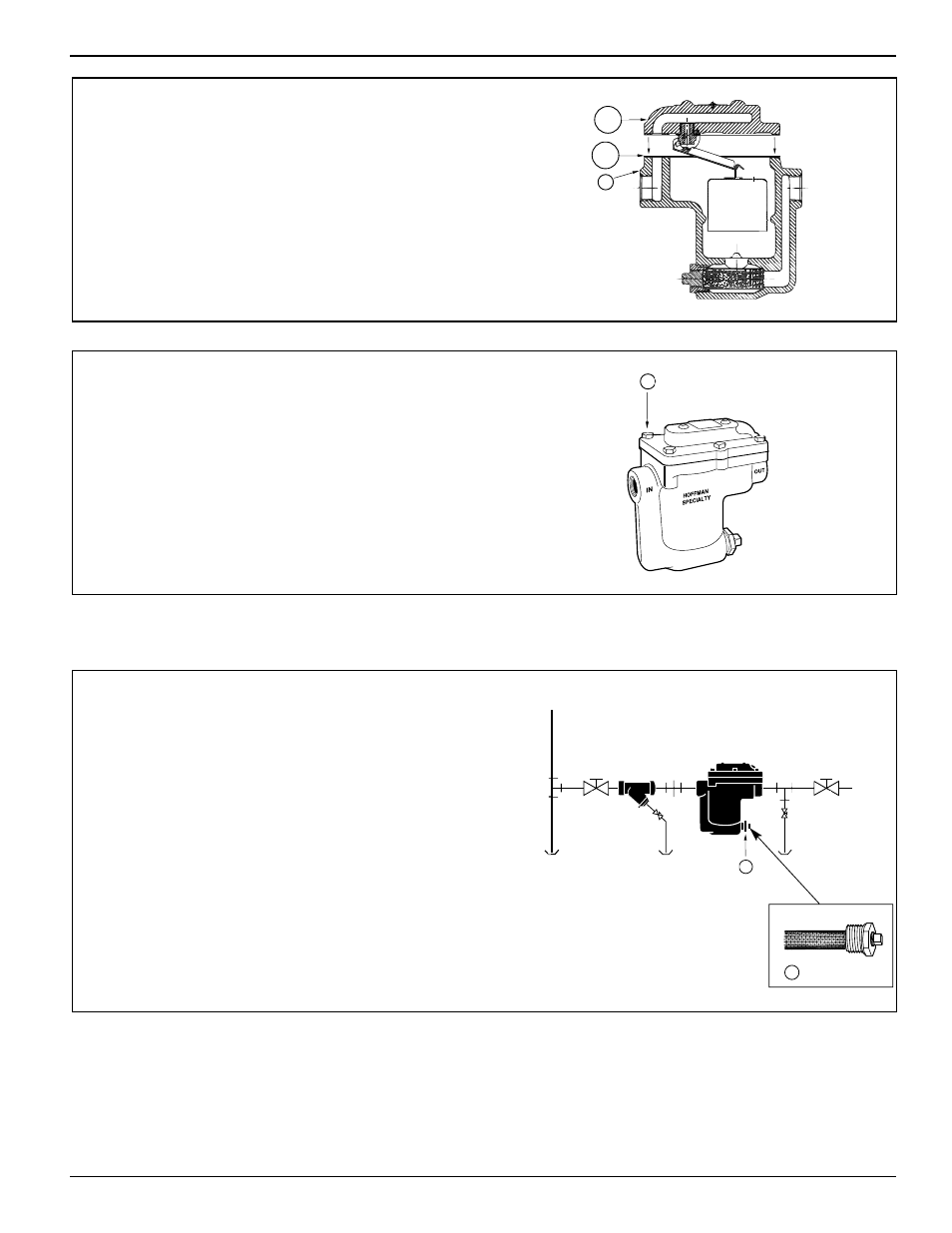

d. Install a new cover gasket (EEE) on the body (G).

e. Place the cover assembly (FFF) on the gasket

(EEE).

FFF

EEE

G

f. Reinstall the (6) six cover bolts (E) and tighten

the bolts to a torque of 22 ft•lb (30 N•m).

E

(x6)

STEP 3 - Return Trap to Service

a. Insert and securely tighten the drain plug (D).

OR

For models with a built-in strainer, install a
new or clean strainer on the 3/4" (20 mm) NPT
bushing (K). Screw bushing and strainer into
the trap.

D

K
