4

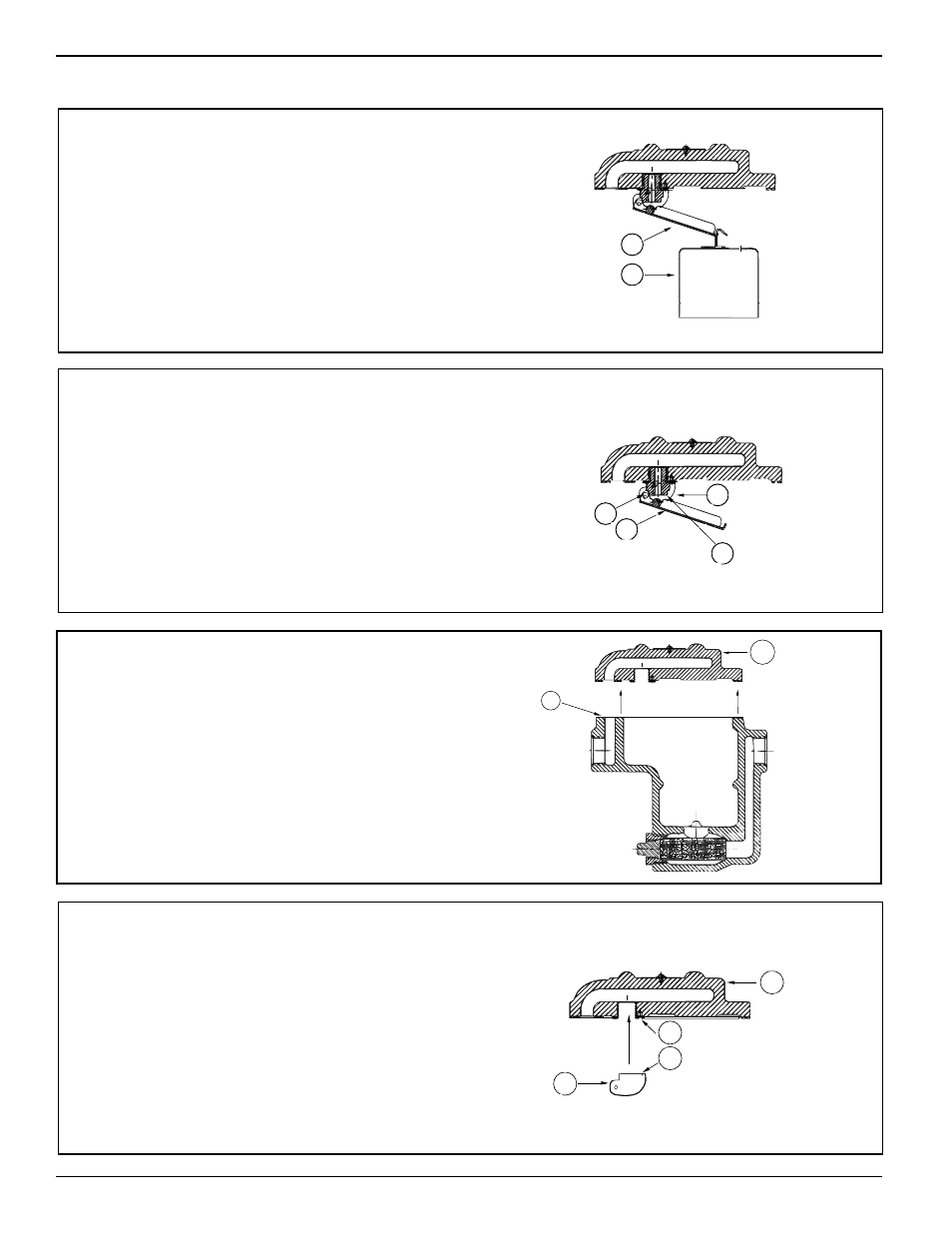

a. Unhook and remove the bucket (AA) from the

lever arm (BB).
NOTE: Save the bucket (AA).

AA

BB

If you are installing an:

INTERNAL PARTS ASSEMBLY

b. Pull pivot pin (CC) out and remove the lever

arm (DD). Unscrew the seat (FF) and remove
the seat yoke (EE).

EE

DD

CC

FF

d. Install the new seat yoke (HH) by properly

aligning the yoke dimple (JJ) with the pilot
hole (KK) in the cover (GG).
Hold the yoke in place while completing
Step e.

GG

KK

JJ

HH

c. Carefully remove old gasket material from the

body (G) and cover casting (GG). Do not
scratch surface area.

G

GG
