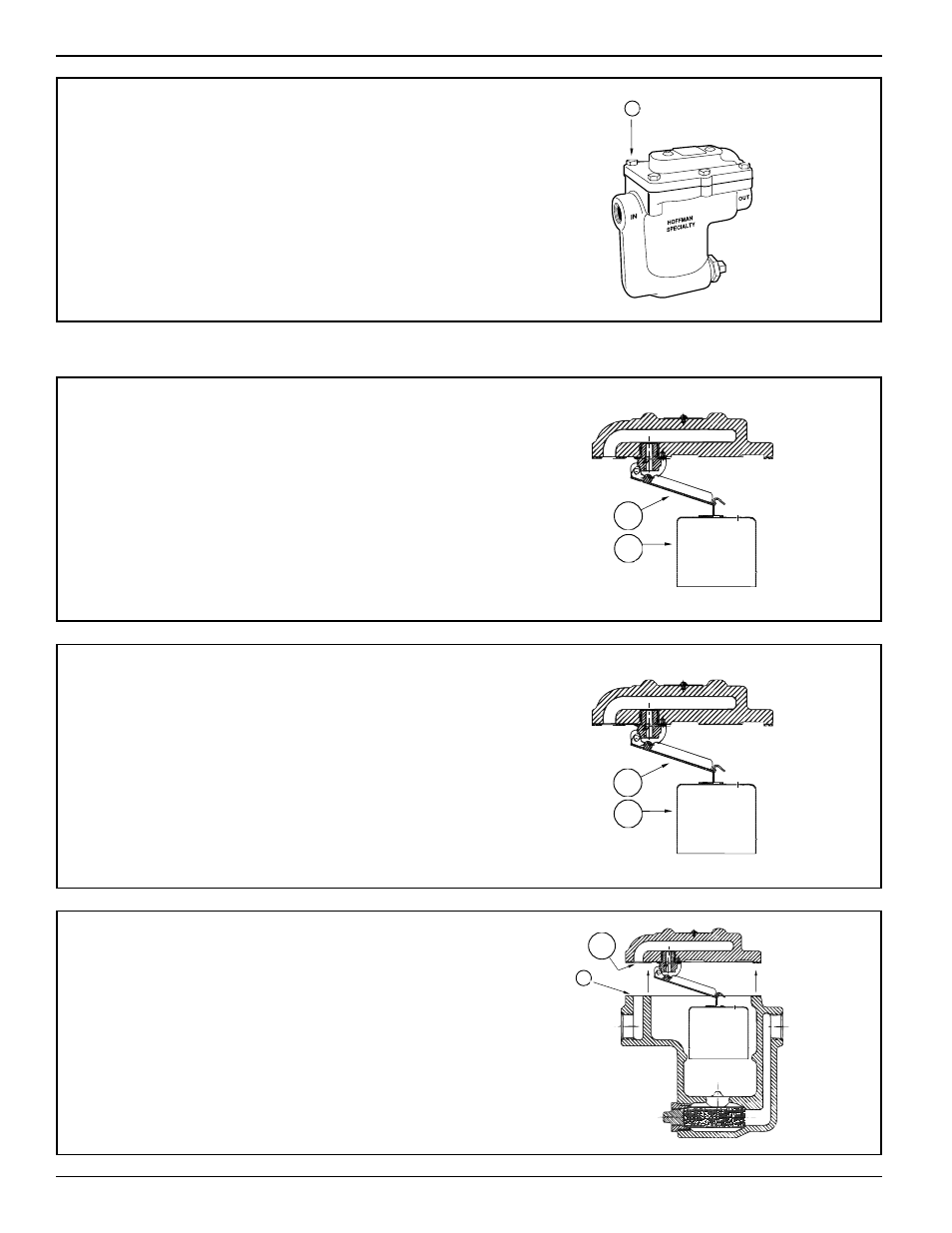

6

j. Reinstall the (6) six cover bolts (E) and tighten

the bolts to a torque of 22 ft•lb (30 N•m).

k. Proceed to Step 3 – Return Trap to Service.

E

(x6)

If you are installing a:

BUCKET ASSEMBLY

b. Install the new bucket assembly (CCC) on the

lever arm (BBB).

BBB

CCC

c. Carefully remove old gasket material from the

body (G) and cover casting (DDD). Do not
scratch gasket surface area.

DDD

G

a. Unhook and remove the bucket (AAA) from

the lever arm (BBB).

BBB

AAA
