AL8807B
Typical Performance Characteristics
(1.3A LED current MSOP-8EP) (@T
A
= +25°C, unless otherwise specified.)

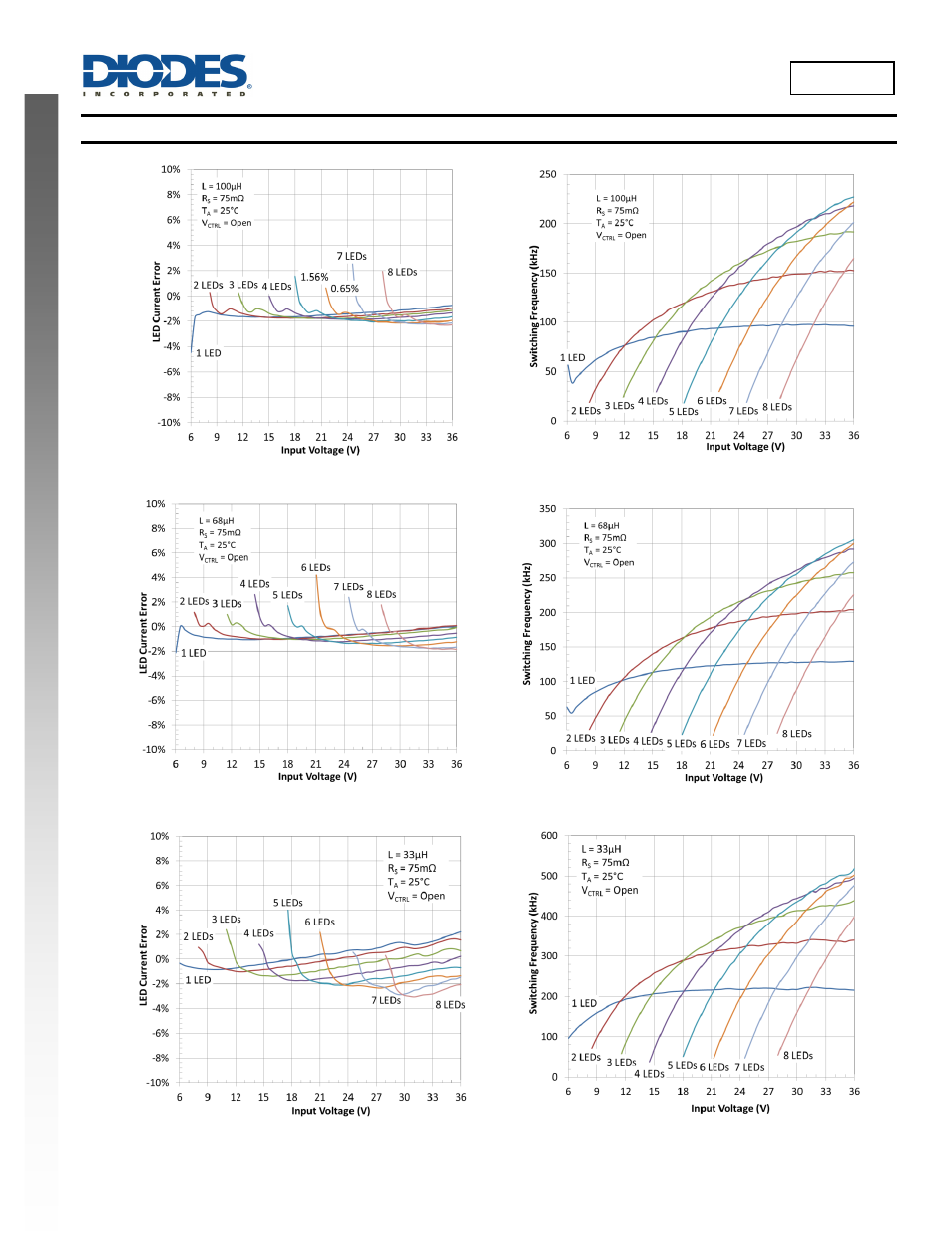

Figure 25. LED Current Deviation vs. Input Voltage
Figure 26. Switching Frequency vs. Input Voltage
Figure 27. LED Current Deviation vs. Input Voltage
Figure 28. Switching Frequency vs. Input Voltage
Figure 29. LED Current Deviation vs. Input Voltage
Figure 30. Switching Frequency vs. Input Voltage
