New prod uc t al8807b, Typical performance characteristics – Diodes AL8807B User Manual
Page 5
AL88070B
Document number: DS36191 Rev. 1 - 2
5 of 18
March 2014
© Diodes Incorporated
NEW PROD
UC
T
AL8807B

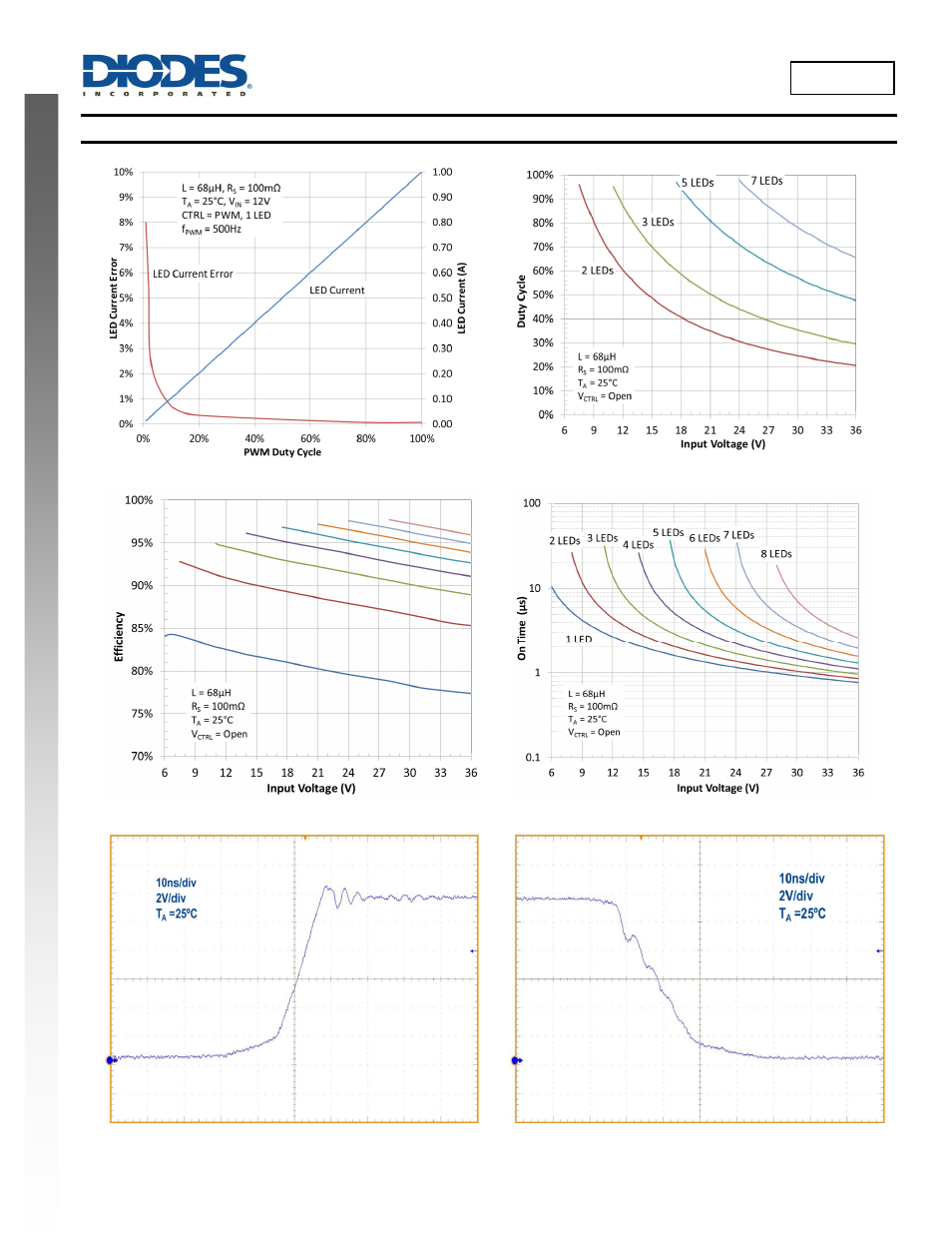

Typical Performance Characteristics
(cont.) (@T
A
= +25°C, unless otherwise specified.)
Figure 7 I
LED
vs. PWM Duty Cycle
Figure 8. Duty Cycle vs. Input Voltage
Figure 9. Efficiency vs. Input Voltage
Figure 10. On-time vs. Input Voltage
Figure. 11 SW Output Rise Time
Figure. 12 SW Output Fall Time
