New prod uc t al8807b, Typical performance characteristics – Diodes AL8807B User Manual
Page 6

AL88070B
Document number: DS36191 Rev. 1 - 2
6 of 18
March 2014
© Diodes Incorporated
NEW PROD
UC
T
AL8807B
Typical Performance Characteristics
(670mA LED current) (@T
A
= +25°C, unless otherwise specified.)

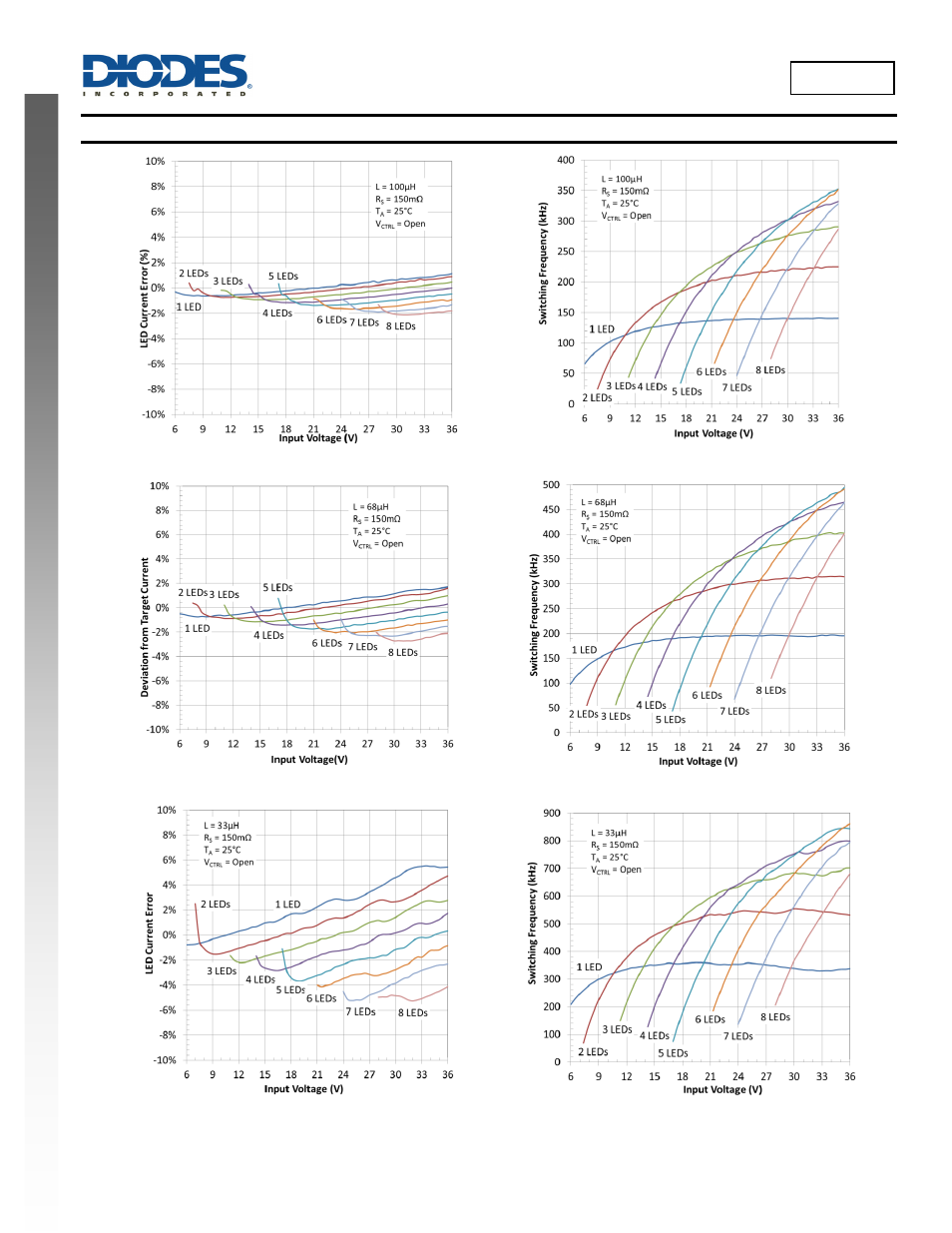

Figure 13. LED Current Deviation vs. Input Voltage
Figure 14. Switching Frequency vs. Input Voltage
Figure 15. LED Current Deviation vs. Input Voltage
Figure 16. Switching Frequency vs. Input Voltage
Figure 17. LED Current Deviation vs. Input Voltage
Figure 18. Switching Frequency vs. Input Voltage
